Quick Details
-
Application:
-
Logistics companies, container,cargo yards
-
Rated Lifting Moment:
-
Design
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
AKC
-
Weight (KG):
-
20000 kg
-
Color:
-
Red
Quick Details
-
Rated Loading Capacity:
-
45 Ton, 80 Ton, 35 Ton, 60 Ton, 100 ton, 120 Ton
-
Max. Lifting Height:
-
3M, 1.8M
-
Span:
-
6-15m
-
Application:
-
Logistics companies, container,cargo yards
-
Rated Lifting Moment:
-
Design
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
AKC
-
Weight (KG):
-
20000 kg
-
Color:
-
Red
Details Images
|
Title
|
|

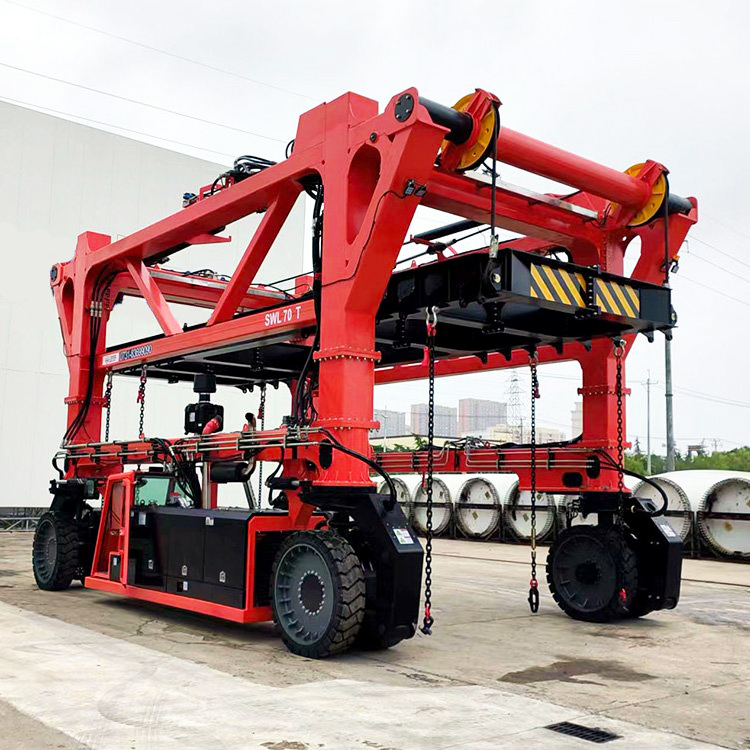

40 80 120 ton multifunctional Straddle Carrier rubber type container gantry cranes for sale
|
|
|
|||
Product Paramenters
|
project
|
|
MAMBA3532-1
|
MAMBA3532-2
|
|
|
|
Overall Length
|
|
9000 mm
|
9000 mm
|
|
|
|
Width Load Area
|
|
3200 mm
|
3200 mm
|
customized
|
|
|
Overall Width
|
|
5050 mm
|
5050 mm
|
customized
|
|
|
Overall Height
|
|
4850 mm
|
4850 mm / 6150 mm
|
customized
|
|
|
Height Load Area
|
|
4300 mm
|
4300 mm
|
customized
|
|
|
Wheelbase
|
|
6000 mm
|
6000 mm
|
customized
|
|
|
Unladen Weight
|
|
17 T
|
19 T
|
customized
|
|
|
Max.travel speed(empty)
|
|
7.5 km/h - 9.5 km/h
|
7.5 km/h - 9.5 km/h
|
customized
|
|
|
Maximum Ground Speed(With load)
|
|
6 km/h - 8 km/h
|
6 km/h - 8 km/h
|
customized
|
|
|
Min.ground clearance
|
|
260 mm
|
260 mm
|
|
|
|
Engine power
|
|
97 kw (Commins/Weichai)
|
97 kw (Commins/Weichai)
|
China
|
|
|
Operation mode
|
|
Cab or Remode control
|
Cab or Remode control
|
China
|
|
|
Tyre
|
|
Solid Tyre + Pneumatic Tyre
|
Solid Tyre + Pneumatic Tyre
|
China
|
|
|
Rated lifting capacity
|
|
(35 tons under spreader)/(40 tons under hook)
|
(35 tons under spreader)/(40 tons under hook)
|
|
|
|
Lifting height
|
|
1800 mm
|
3000 mm
|
customized
|
|
|
Lifting Speed
|
|
60 mm/s
|
60 mm / s
|
|
|
|
Controll
|
|
IFM / sanyi
|
IFM / sanyi
|
China
|
|
|
Lifting Tool
|
|
Wire rope + Twistlock
|
Wire rope + Twistlock
|
China
|
|
|
Optional configuration table
|
|
|
|
|
||||
|
Project
|
|
Parameters (brand)
|
Remark
|
|
||
|
Four-wheel straddle carrier
|
|
HJ
|
customized
|
|
||
|
High speed walking system
|
|
Imported variable pump (traveling speed can reach 9.5 kilometers per hour
|
customized
|
|
||
|
air conditioner
|
|
Heating and cooling air conditioning
|
customized
|
|
||
|
20 feet automatic spreader
|
|
HJ
|
customized
|
|
||
|
40 feet automatic spreader
|
|
HJ
|
customized
|
|
||
|
20-40 dual-purpose automatic spreader
|
|
HJ
|
customized
|
|
||
|
Panoramic video system
|
|
Bo lun
|
customized
|
|
||
Product Display
advanced technology
Electric control system
CAN bus system, All kinds of signal transmitted by data, Long distance transmission, accurate data ,high reliability.
High-performance electrical components：SYMC controller、P+F sensor、Amphenol connector .
Auto-Center side-shift control system
Use intelligent technology, move the spreader to the middle position of side-shift by collecting the status of side-shift and movement of hoist…it will be convenient for grip and load containers.
Hydraulic system
Direct hydraulic hand lever, low breakdown rate, easy for both operation and maintenance.
Hydrostatic transmission, stepless
speed change、smooth movement 、High efficiency and energy saving
Electro-hydraulic control or hydraulic control operation system in Cab
One-click operation, convenient and flexible system response speed.
Humanization design
Side Shift Front & Rear
Super Elastic Puncture Proof Tyres
Rollover protective system
Customized spreader
Overview
RTG Crane Rubber Tyre Container Gantry Crane
Rubber Tyre Container Gantry Cranes(RTG Crane ) are special equipments to remove, load and unload international standard containers. Running and moving in the yard, it has the advantage of high production efficiency and fine maneuverability, also the small sensibility to unevenness of the ground. RTG has tractor trolley and standard trolley two models. RTG is powered by cable drum. At the same time, diesel generating set is equipped for conditions when the power is off or the crane moves to another yard.
Rubber tyre Container Crane Features:
1, The power source is three-phase alternating current,rated frequency is 50HZ,rated voltage is 380V.
2, The working environment temperature ranges from -20℃ to +45℃ and the relative humidity is no lower than 95%(with dew).
3, In-service, the wind speed should be no higher than 20m/s; out-of-service, the wind speed should be no higher than 44m/s.
4, The working duty is A6-A7.
5, The gradient of crane traveling floor should be less than 1% and part of that should be no more than 3%.
6, The crane which has the special requirement for working conditions, can be manufactured following the contracts.
2, The working environment temperature ranges from -20℃ to +45℃ and the relative humidity is no lower than 95%(with dew).
3, In-service, the wind speed should be no higher than 20m/s; out-of-service, the wind speed should be no higher than 44m/s.
4, The working duty is A6-A7.
5, The gradient of crane traveling floor should be less than 1% and part of that should be no more than 3%.
6, The crane which has the special requirement for working conditions, can be manufactured following the contracts.
Why Choose Us
Advanced Manufacturing Technology:
Steel shot blasting pretreatment, the surface quality reaches Sa 2.5 grade.Crane wheel and wheel shaft through the high frequency quenching and tempering treatment, it eliminates the internal stress and ensures the machining accuracy. the use of welding robot, the main girder inseam weld by advanced MAG welding. The main girder welding adopts radio graphic testing and ultrasonic testing to ensure the welding quality.
High Reliability:
The motor and ruducer are imported from domestic famous brands with industry reconnition, quality assurance. It has reliable quality.
The main electrical components is from the selection of Schneider, Siemens, ABB and other international well-known brands, the protection degree electronic control box is less than IP54.
The main electrical components is from the selection of Schneider, Siemens, ABB and other international well-known brands, the protection degree electronic control box is less than IP54.
Safety features:
1. Automatic rectify deviation control
2. Weight overload protection device
3. Top quality polyurethane buffer
4. Phase protection
5. Lifting limit switch,cross traveling limit switch,long traveling limit switch
6. Voltage lower protection function
7. Emergency stop system
8. Current overload protection system
9. Lighting system
10. Audio and video alarm system
2. Weight overload protection device
3. Top quality polyurethane buffer
4. Phase protection
5. Lifting limit switch,cross traveling limit switch,long traveling limit switch
6. Voltage lower protection function
7. Emergency stop system
8. Current overload protection system
9. Lighting system
10. Audio and video alarm system
Certifications
Back home
FAQ
Q:What’s the information should I provide when inquiry? More details or drawings,better.
A: life capacity B：span C：lift height D:crane traveling distance E: power source
Q: What is your minimum order quantity?
A: 1 set;
Q: What is your package?
A: The main body is packaged with plywood boxes or plastic woven fabrics; Spare parts inside the plywood box;
Q: What is your delivery cycle time?
A: Within 10/25/40 days after receiving the advance payment; The specific deadline shall be based on the detailed
requirements and actual deadline;
Q: Do you provide lifting accessories?
A: Yes, we can provide any type of crane accessories, such as hooks, grab buckets, magnets, pulley blocks, hooks, locks, wire
ropes, fiber ropes, etc.
Q: Do you provide custom service codes?
A: Yes, our factory supports OEM/ODM services.
Q: What is your minimum order quantity?
A: 1 set;
Q: What is your package?
A: The main body is packaged with plywood boxes or plastic woven fabrics; Spare parts inside the plywood box;
Q: What is your delivery cycle time?
A: Within 10/25/40 days after receiving the advance payment; The specific deadline shall be based on the detailed
requirements and actual deadline;
Q: Do you provide lifting accessories?
A: Yes, we can provide any type of crane accessories, such as hooks, grab buckets, magnets, pulley blocks, hooks, locks, wire
ropes, fiber ropes, etc.
Q: Do you provide custom service codes?
A: Yes, our factory supports OEM/ODM services.
