- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
VM-Zigbee-S02-0-10V
-
Switch Type:
-
2 channel
-
Item:
-
Zigbee 0-10V Dimmer
-
Voltage:
-
AC100-240V 50Hz/60Hz
-
Output:
-
0-10V DC Max.20mA
-
Wired:
-
No Neutral Needed
-
Frequency:
-
2.4GHz - 2.4835GHz IEEE802.15.4
-
Operation temp:
-
-10℃+40℃
-
Protocol:
-
ZigBee 3.0
-
Color:
-
White OEM
-
Material:
-
ABS+PC
Quick Details
-
Max. Voltage:
-
240V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Wilmore
-
Model Number:
-
VM-Zigbee-S02-0-10V
-
Switch Type:
-
2 channel
-
Item:
-
Zigbee 0-10V Dimmer
-
Voltage:
-
AC100-240V 50Hz/60Hz
-
Output:
-
0-10V DC Max.20mA
-
Wired:
-
No Neutral Needed
-
Frequency:
-
2.4GHz - 2.4835GHz IEEE802.15.4
-
Operation temp:
-
-10℃+40℃
-
Protocol:
-
ZigBee 3.0
-
Color:
-
White OEM
-
Material:
-
ABS+PC

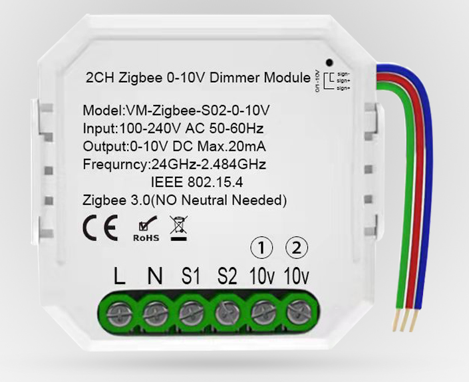

Tuya Smart Zigbee Dimmer 0-10V LED Switch DIY Controller
1.The 0/1-10V zigbee dimmer needs to be used with a 0-10V dimmable driver.
2.Compatible with 0-10V/1-10V drive power supply.
3.These devices works with Tuya ZigBee Gateways Custom open/close time brightness level, color temperature and scene according to your personal requirements.
4.DIY different smart and automatic scenes.
| Product type | ZigBee 0-10V Dimmer |
| Input Voltage | AC100-240V 50Hz/60Hz |
| Output voltage | 0-10V DC Max. 20mA |
| Dimming type | 0-10V |
| Operation frequency | 2.412GHz-2.484GHz |
| Operation temp. | -10℃+40℃ |
| Protocol | Zigbee 3.0 |
| Dims(WxDxH) | 46*46*18mm |
| IP rating | IP20 |
