Quick Details
-
Model Number:
-
CTM1-1000L
-
Rated Voltage:
-
800V
-
poles:
-
2p 3p 4p
-
Rated current In(A):
-
1000a
-
Rated insulation voltage:
-
800v
-
Rated voltage(Ue):
-
690v and below
-
Working Temperature:
-
-5℃ to 40℃
-
protection:
-
overload,short circuit, undervoltage protection
-
Standard:
-
IEC60947-2,GB14048.2
-
Certificate:
-
CCC CE
-
OEM ODM:
-
avaiable
Quick Details
-
Poles Number:
-
2p
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Chtai
-
Model Number:
-
CTM1-1000L
-
Rated Voltage:
-
800V
-
poles:
-
2p 3p 4p
-
Rated current In(A):
-
1000a
-
Rated insulation voltage:
-
800v
-
Rated voltage(Ue):
-
690v and below
-
Working Temperature:
-
-5℃ to 40℃
-
protection:
-
overload,short circuit, undervoltage protection
-
Standard:
-
IEC60947-2,GB14048.2
-
Certificate:
-
CCC CE
-
OEM ODM:
-
avaiable
Products Description
Range of application

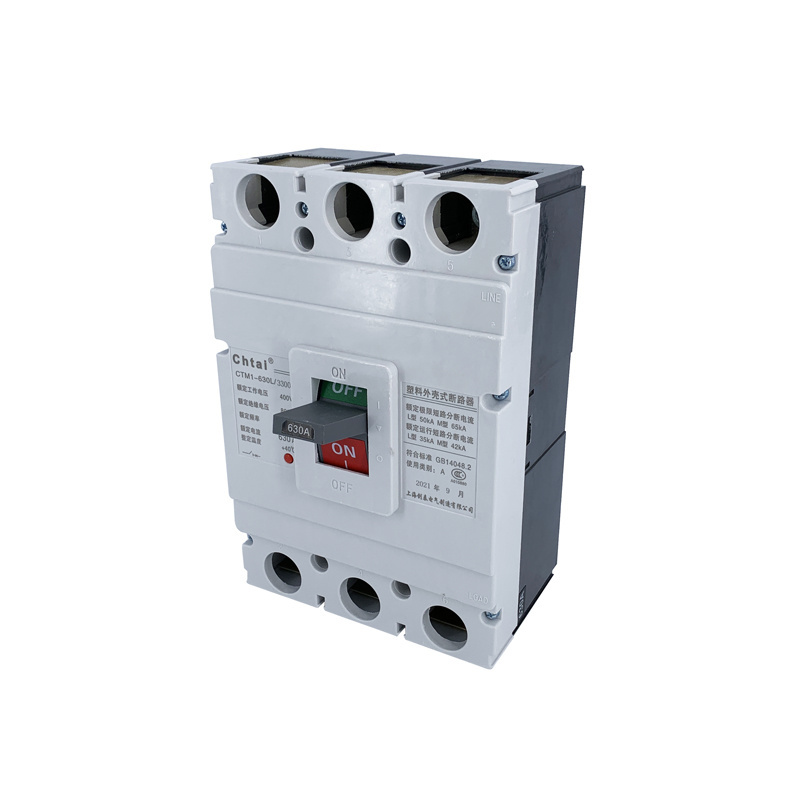

CTM1
series plastic case circuit breaker,advanced structure,reliable performance, quick response, sensitive induction, shell and components are made of impact resistance and high flame retardant materials, long service life.
Applied in the power system of AC50(60)Hz,
rated insulation voltage 800V
rated voltage 690V and below, rated current 1250A and below as the transfer not frequently.
The circuit breaker has the protection devices of over load, short circuit and under voltage,it can protect the circuit and power equipment from broken.
This mccb can be sorted to C type (basic),L type (standard),M type (high breaking), H type(higher bre-
akin
g
)
according to its rated limit short circuit breaking capacity.I
t is the ideal product for
application
in land and ship.
The product conforms to IEC60947-2,GB14048.2 and other standards.
Product Paramenters
|
Name
|
CTM1
|
|
Number
|
CTM1-400
|
|
Poles
|
2P,3P,4P
|
|
Rated current(In)
|
225A,250A,315A,350A,400A
|
|
Rated Insulation Voltage(V)
|
800V
|
|
Rated voltage(Ue)
|
690V and below
|
|
Rated frequency
|
50Hz
|
|
Type
|
C/L/M/H
|
|
Working Temperature
|
-5℃ to 40℃
|
|
Standard
|
IEC60947-2,GB14048.2
|
|
protection:
|
overload，short circuit， undervoltage protection
|
|
Certificate
|
CCC CE
|
|
Guarantee
|
2YEARS
|
|
OEM ODM
|
avaiable
|
|
Protection Features:Thermal Release with inverse-time characteristic
|
|
|
|
|||
|
Rated Current(A)
|
1.05In(cool station) no breaking time(h)
|
40°C for land/45°C for ship 1.30In (thermal station) breaking time(h)
|
Electromagnetic release breaking current(A)
|
|||
|
10
|
>=1
|
<1
|
10In±20%
|
|||
|
63
|
>=2
|
<2
|
|
|||
|
100
|
>=2
|
<2
|
5In±20%&10In±20%
|
|||
Details Images
Moulded Case AC Circuit Breaker
Moulded Case Earth Leakage Circuit Breaker
Molded case DC circuit breaker
|
Model
|
Poles Rated
|
L1
|
L2
|
L3
|
L4
|
|
CTM1-63
|
3
|
76
|
135
|
91
|
71
|
|
|
4
|
103
|
|
98
|
80
|
|
CTM1-125
|
2
|
65
|
150
|
86
|
68
|
|
|
3
|
91
|
|
|
|
|
|
4
|
120
|
|
|
|
|
CTM1-250
|
2
|
75
|
165
|
110
|
87
|
|
|
3
|
105
|
|
|
|
|
|
4
|
140
|
|
|
|
|
CTM1-400
|
3
|
150
|
257
|
150
|
107
|
|
|
4
|
198
|
|
|
|
|
CTM1L-630
|
3
|
182
|
270.5
|
158
|
112
|
|
|
4
|
240
|
|
|
|
|
CTM1L-800
|
3
|
210
|
280
|
158
|
115
|
|
|
4
|
280
|
|
|
|
