Quick Details
-
Power:
-
2200
-
Dimension(L*W*H):
-
584x390x950mm
-
Weight (KG):
-
260
-
Product name:
-

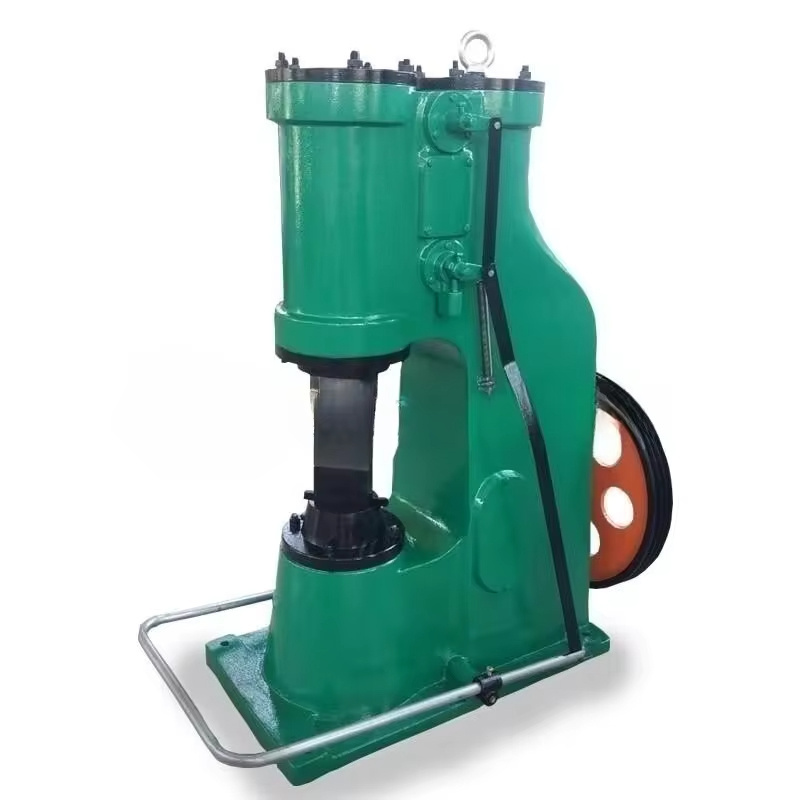

Blacksmith Forging Hammer
-
Falling mass:
-
20
-
Maximum impact energy:
-
0.2
-
number of strokes:
-
270
-
Height of working interval:
-
200
-
rotate speed:
-
1440
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Machine Type:
-
Ordinary Product
-
Voltage:
-
220V
-
Power:
-
2200
-
Dimension(L*W*H):
-
584x390x950mm
-
Weight (KG):
-
260
-
Product name:
-
Blacksmith Forging Hammer
-
Falling mass:
-
20
-
Maximum impact energy:
-
0.2
-
number of strokes:
-
270
-
Height of working interval:
-
200
-
rotate speed:
-
1440
Products Description
This series of products can be upsetting, stretching, punching, bending, twisting, thermal shear, termination and other work for free-forging different shapes of parts, especially for rural enterprises and specialized households forged sickle, hoes and other small farm tools.
Machine Parameter
|
Specifications
|
C41-150kg
|
C41-75kg
|
C41-40kg
|
|
Attack energy(J)
|
200
|
100
|
53
|
|
Work sector altitude(mm)
|
370
|
300
|
245
|
|
Attack number of times(min-1)
|
180
|
210
|
250
|
|
Malleable side steel length of side(mm)
|
130×130
|
65×65
|
52×52
|
|
Malleable round steel length of side(mm)
|
Φ145
|
Φ85
|
Φ68
|
|
Uses for parts the power(mm)
|
15
|
7.5
|
4
|
|
Electrical rotational speed(r.p.m)
|
1470
|
1440
|
1440
|
|
Anvil weight(kg)
|
1800
|
850
|
400
|
|
Gross weight(kg)
|
5060
|
2800
|
1350
|
|
Outlook size(mm)
|
2080×1240×2350
|
1600×950×1950
|
1080×600×1389
|
Packing & Delivery
Packing:
Machine packing inside is plastic films and outside is fumigation wooden case.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Machine packing inside is plastic films and outside is fumigation wooden case.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Delivery:
For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery solution:
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us for confirm delivery cost before you place order.
For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery solution:
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us for confirm delivery cost before you place order.
