Quick Details
-
Dimension(L*W*H):
-
17150x3480x3485mm
-
Weight:
-
76t
-
Marketing Type:
-
New Product
-
Drilling Depth:
-
50m
-
Mobility:
-
Crawler
-
Rated Power:
-
298/2100kw/rpm
-
Max. output torque:
-
330kN.m
-
Track shoe width:
-
800mm
-
The first layer lifting force:
-
330kN
-
Max lifting speed:
-
65m/min
-
Certification:
-
ISO9001
Quick Details
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
Yuchai
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
17150x3480x3485mm
-
Weight:
-
76t
-
Marketing Type:
-
New Product
-
Drilling Depth:
-
50m
-
Mobility:
-
Crawler
-
Rated Power:
-
298/2100kw/rpm
-
Max. output torque:
-
330kN.m
-
Track shoe width:
-
800mm
-
The first layer lifting force:
-
330kN
-
Max lifting speed:
-
65m/min
-
Certification:
-
ISO9001

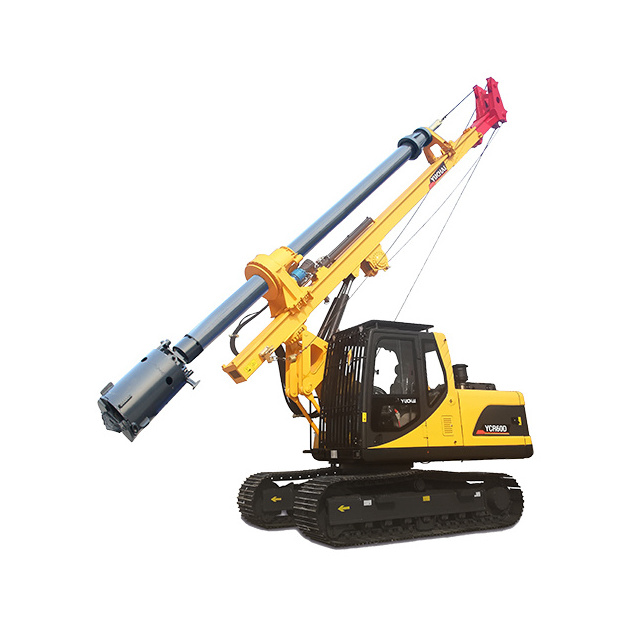

Yuchai bore pile foundation machine rotary drilling rig YCR330 price
Chassis
shantui mature chassis is made by using worldclass technology, stable and reliable.
Engine
Engine provided is Com QSM11-C400 turbocharged engine imported with original packaging, and is trustworthy.
Main winch
It is provided with the complete set of imported hydraulic system assembly, which makes the main winch high-efficiency and powerful.
Auxiliary winch
It has auxiliary winding function, which makes construction conveniently.
Mast
It is one of main components of rotary drilling rig, is main body of suspending and guiding working device; the equipment has function of automatically making mast upside down, and is equipped with reinforced type mast, and service life of mast can be ensured.
Oil cylinder
Specially-equipped oil cylinder for pressurizing can make drilling powerful, and travel after pressurizing reach to 1500mm
