Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Kinmore
-
Model Number:
-
RC-280SA-2865L
-
Torque:
-
1.0~600 g.cm
-
Main Feature:
-
motor vibrator dildo
-
Brush Type:
-
Carbon Brush / Metal Brush
-
Typical Usage:
-
Ladies shaver, Skin trainer, Toys, Hair dryer, Toothbrush,Massager
-
End cap:
-
Plastic
-
Outline Diameter:
-
7.0-30.0 mm
-
Weight:
-
42g
-
Certification:
-
ISO 9001
Quick Details
-
Speed(RPM):
-
2000~33000 rpm
-
Continuous Current(A):
-
0.07~1.7 A
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Kinmore
-
Model Number:
-
RC-280SA-2865L
-
Torque:
-
1.0~600 g.cm
-
Main Feature:
-
motor vibrator dildo
-
Brush Type:
-
Carbon Brush / Metal Brush
-
Typical Usage:
-
Ladies shaver, Skin trainer, Toys, Hair dryer, Toothbrush,Massager
-
End cap:
-
Plastic
-
Outline Diameter:
-
7.0-30.0 mm
-
Weight:
-
42g
-
Certification:
-
ISO 9001

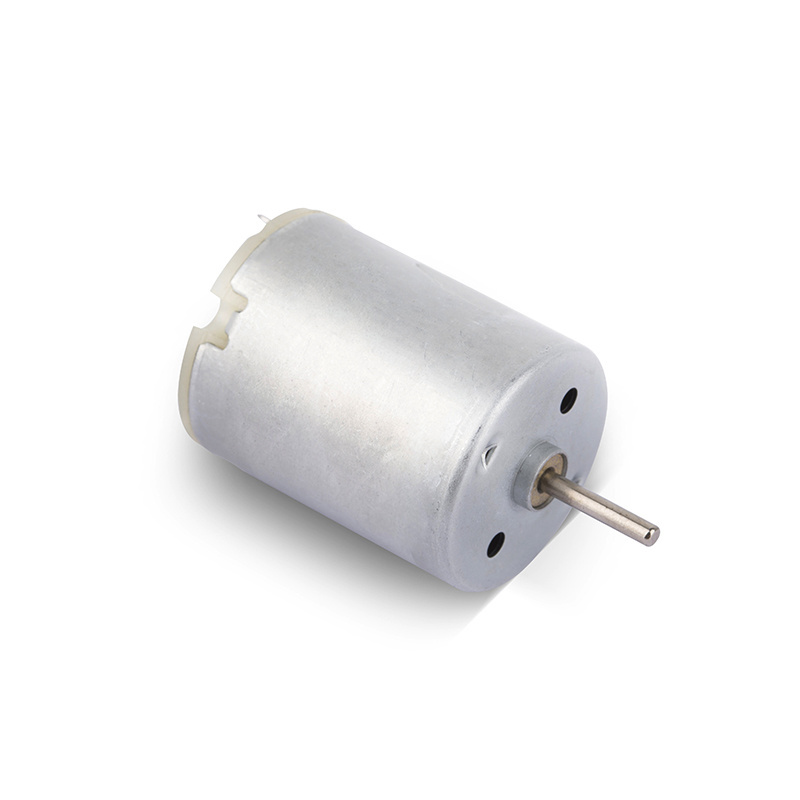

Carbon brush dc armature small rotating motor for electronic lock
Carbon brush dc armature small rotating motor for electronic lock
Customization:
(1) Length A, B;
(2) Technical Data;
(3) Shaft length and shape.
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| RE-280RA | 2865 | 1.5 - 3.0 | 3 | 9200 | 0.16 | 7770 | 0.87 | 1.98 | 20.2 | 1.61 | 12.7 | 129 | 4.7 |
| RC-280SA | 2769 | 3.0-6.0 | 6 | 14000 | 0.236 | 11948 | 1.374 | 4.31 | 44 | 0.55 | 29.4 | 299.9 | 8 |
| RC-280SA | 20125 | 3.0-6.0 | 9 | 11600 | 0.118 | 9935 | 0.7 | 3.8 | 38.8 | 0.55 | 26.46 | 270 | 4.2 |
Kinmore The most complete DC motor supplier.
We are one of the largest ,most complete dc motor manufacturer in the industry ,with huge production capacity of 90 million pcs per year .
Over 40 experienced engineers to provide new product development service for our customers .
If they are not what you want , please kindly contact us to recommend you a suitable one according to your requirement.
