Quick Details
-
Engine Brand:
-
Shangchai
-
Travel Speed:
-
11.17km/h
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
6150*2300*3200mm
-
Drum diameter:
-
431mm
-
Exciting Force:
-
274/190KN
-
Marketing Type:
-
Hot Product 2023
-
Static line load:
-
315N/cm
-
Compaction width:
-
2130mm
-
Wheelbase:
-
3076mm
Quick Details
-
Type:
-
Vibratory Roller
-
Power:
-
132kw
-
Weight:
-
16TON
-
Engine Brand:
-
Shangchai
-
Travel Speed:
-
11.17km/h
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
6150*2300*3200mm
-
Drum diameter:
-
431mm
-
Exciting Force:
-
274/190KN
-
Marketing Type:
-
Hot Product 2023
-
Static line load:
-
315N/cm
-
Compaction width:
-
2130mm
-
Wheelbase:
-
3076mm
Product Show

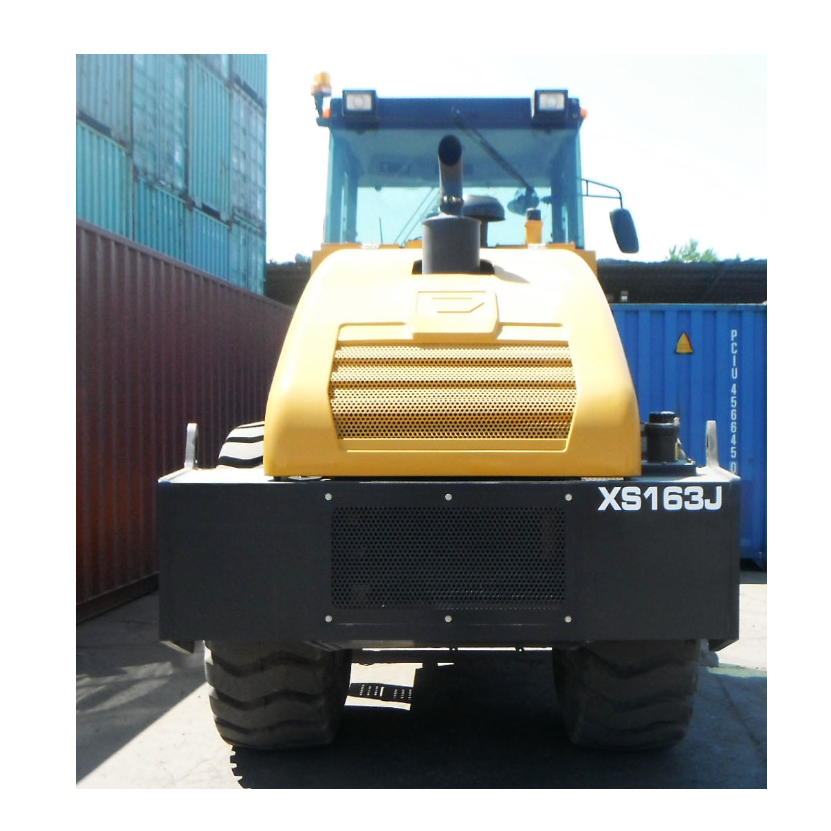

XS163J Single drum vibratory roller has a very high static line load and exciting force and is suitable to the compaction
operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, etc. and it is also suitable to the compaction of concrete and stabilized soil base materials in various large projects; Thus, it is a kind of important compaction equipment in the construction of large projects such as the expressway, railway, mine, port, etc.
Specification
|
Description
|
|
Unit
|
XS163J
|
|
|
Outline dimensions(L*W*H)
|
|
MM
|
6150*2300*3200
|
|
|
operating weight
|
|
kg
|
16000
|
|
|
front axle weight
|
|
kg
|
8000
|
|
|
rear axle weight
|
|
kg
|
8000
|
|
|
static linear load
|
|
N/cm
|
376
|
|
|
operating speed
|
|
km/h
|
0-12.2
|
|
|
theoretical gradeability
|
|
％
|
30
|
|
|
Engine
|
Power
|
Kw
|
103
|
|
|
|
Supplier
|
|
SHANGCHAI
|
|
|
Vibration frequency
|
|
HZ
|
28/33
|
|
|
wheel base
|
|
mm
|
3076
|
|
|
minimum turning radius（Intern/extern）
|
|
mm
|
6800
|
|
|
steering angle
|
|
°
|
+30
|
|
|
Nominal amplitude
|
|
mm
|
1.9/0.95
|
|
|
Exciting force （H/L frequency）
|
|
KN
|
290/200
|
|
|
Drum Diameter
|
|
mm
|
1523
|
|
|
Drum Width
|
|
mm
|
2130
|
|
|
Vibration system pressure
|
|
MPa
|
18
|
|
|
Steering system pressure
|
|
mpa
|
16
|
|
