- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Flysun
-
Effective Volume:
-
0.196-15.26 M3
-
Dimension(L*W*H):
-
1.8*1.25*2.1 m
-
Voltage:
-
380V or customized
-
Power:
-
customized
-
Weight (KG):
-
495
-
Keywords::
-
Horizontal Carbonization Furnace
-
Carbonization time::
-
6-8H
-
Capacity:
-
600 kg/batch
-
Raw material:
-
Coconut Shell,sawdust,rick husk,wood,etc.
-
Heating source:
-
Firewood Coal Gas Electricity Burner
-
Final product usag:
-
Make Shisha Bbq Charcoal Briquettes
-
Carboniztion type:
-
Batch carbonization
-
Main structure:
-
One Main Furnace
-
Feature:
-
Smokeless,Environmental Protection
Quick Details
-
Place of Origin:
-
China
-
Marketing Type:
-
hot sale
-
Core Components:
-
filtering system, Furnace body
-
Brand Name:
-
Flysun
-
Effective Volume:
-
0.196-15.26 M3
-
Dimension(L*W*H):
-
1.8*1.25*2.1 m
-
Voltage:
-
380V or customized
-
Power:
-
customized
-
Weight (KG):
-
495
-
Keywords::
-
Horizontal Carbonization Furnace
-
Carbonization time::
-
6-8H
-
Capacity:
-
600 kg/batch
-
Raw material:
-
Coconut Shell,sawdust,rick husk,wood,etc.
-
Heating source:
-
Firewood Coal Gas Electricity Burner
-
Final product usag:
-
Make Shisha Bbq Charcoal Briquettes
-
Carboniztion type:
-
Batch carbonization
-
Main structure:
-
One Main Furnace
-
Feature:
-
Smokeless,Environmental Protection
Discount price Horizontal Carbonization Furnace Biomass Charcoal Making Machine Charcoal Kiln For Sale
The carbonization furnace can be divided into hoisting carbonization furnace (Hositing system to cabronize bigger size materials), horizontal carbonization furnace (Without using electricity and suitable for big size materials), continuous carbonization furnace (can be fully automatic and continuous production, suitable for large-scale production required, it is used for carbonizing small-sized materials, such as shredded coconut shells, rice husks, wood chips, etc.)
Products Description

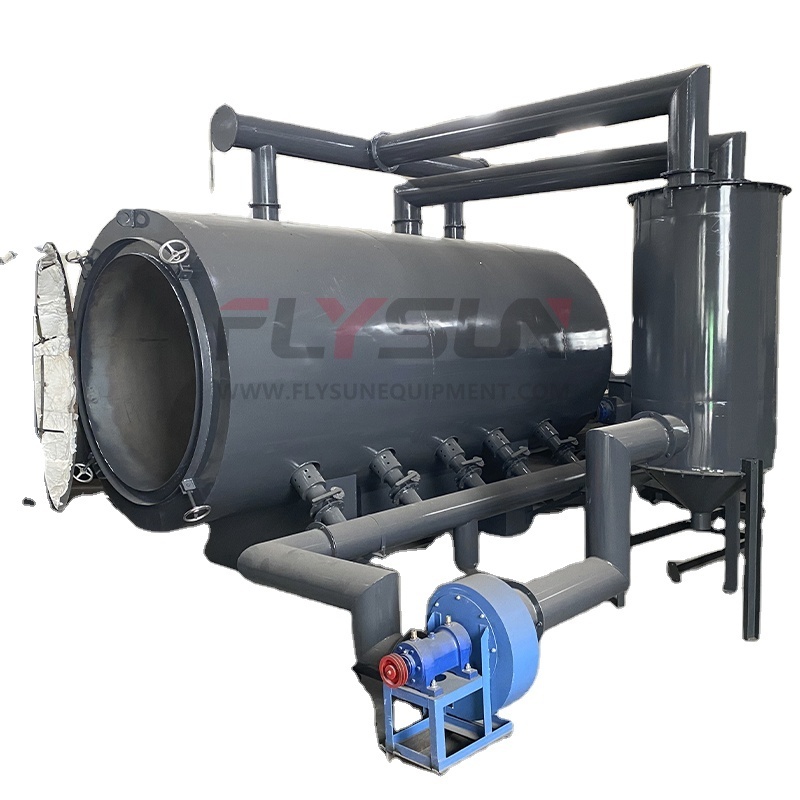

Horizontal carbonization furnace
Without using electricity and suitable for big size materials(such as wood log, wood branch,bamboo etc.)Equipment can be used in remote areas.
Working Principle
Charcoal carbonization furnace is an important production equipment. It heats wood at high temperature to convert it into high-quality charcoal. The carbonization process requires precise control and detection to ensure that wood can be completely converted into charcoal. The application of charcoal carbonization furnace It is of great significance to realize the reuse of resources and the protection of the environment
Technical Parameters
|
Model |
Load
Capacity/ batch |
Inner stove
volume (m3) |
Machine size
(mm) |
Weight (kg)
|
|
.0.5* 1M |
300kg |
0.196 |
1.2*0.9* 1.4 |
350 |
|
.1* 1.5M |
600kg |
1.777 |
1.8* 1.25*2. 1 |
495 |
|
.1*3M |
1200kg |
2.355 |
3.3* 1.5*2. 1 |
850 |
|
.1.5*3M |
2500kg |
5.3 |
3.3* 1.8*2.4 |
1377 |
|
.1.5*3.8M |
3000kg |
6.7 |
4* 1.9*2.5 |
1800 |
|
.1.5*4.5M |
4000kg |
7.9 |
4.8* 1.9*2.5 |
2200 |
|
.1.8*4.5M |
6000kg |
11.5 |
4.8*2. 1*2.5 |
2800 |
|
.1.8*6M |
8000kg |
15.26 |
6*2. 1*2.8 |
3500 |
Structure of Carbonization Stove
: outer stove, inner stove, fuel combustion chamber,purification system,combustible gas recycle system.
Carbonization time
:6-24hour, the carbonization time is mainly depend on the moisture and the type of wood.
