Quick Details
-
Max Discharge current:
-
10000 A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TYCOTIU
-
Model Number:
-
TY-RJ11
-
Nominal Discharge current:
-
5000 A
-
Item Name:
-
surge protective
-
Material:
-
Plastic
-
Standard:
-
IEC61643-21
-
Nominal Voltage:
-
110v
-
UC:
-
170VDC/120VAC
-
IL:
-
0.5A
-
Degree of protection:
-
IP20
-
Certificate:
-
CE/ROHS/ISO9001
-
Operating temperature range:
-
-40℃-80℃
Quick Details
-
Type:
-
Singal protection
-
Number of Pole:
-
1
-
Rated Voltage:
-
110V
-
Max Discharge current:
-
10000 A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TYCOTIU
-
Model Number:
-
TY-RJ11
-
Nominal Discharge current:
-
5000 A
-
Item Name:
-
surge protective
-
Material:
-
Plastic
-
Standard:
-
IEC61643-21
-
Nominal Voltage:
-
110v
-
UC:
-
170VDC/120VAC
-
IL:
-
0.5A
-
Degree of protection:
-
IP20
-
Certificate:
-
CE/ROHS/ISO9001
-
Operating temperature range:
-
-40℃-80℃
40kA 275V single phase 1P Type 2 Class II surge protective
You are here: Home >> SPD for data >>SPD for data

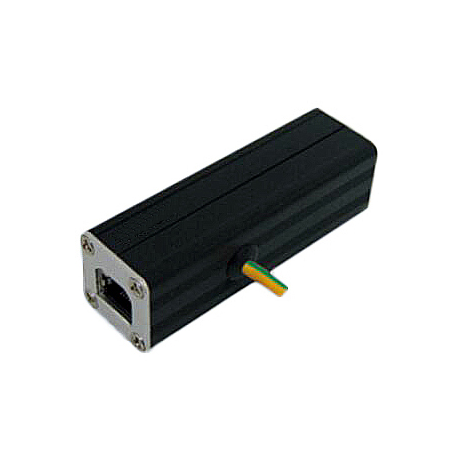

TYCOTIU TY- RJ11 rj11 telephone 110v surge protector surge protection device surge arrester
<Lightning Surge Arrester/Surge Protective Device/Surge Arrester>
Features
-
• Operating voltage: 110V.• Nominal current: 0.5A.• Nominal discharge current: 5KA.• Aluminum alloy enclosure.• Number of ports RJ11: 1 ports.• It has RJ11 socket 2 line connectors for input / output.
Product characteristics
| Specification | TY-RJ11 |
| Item name |
Surge Protective
|
| Test standard | IEC 61643-21 |
| Nominal voltage Un | 110V |
| Max continuous 0perating d.c. voltage Uc | 170V |
| Max continuous 0perating a.c. voltage Uc | 120V |
| C2 Norminal discharge current (8/20µs) per line In | 5kA |
| Voltage protection level [line-line] Up | ≤250V |
| Voltage protection level [line-PG] Up | ≤600V |
|
Response time [line-line] tA |
≤1ns |
|
Response time [line-line] tA |
≤100ns |
| Connection input/output | 35mm Din rail |
| Degree of protection | RJ11 socket |
| Payment term | 30% deposit in advance,70% before shipment |
| Certificate | CE/ROHS/ISO9001 approved standard |
| Logo | Customized logo available |
|
Design ability |
We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production) |
TYCOTIU owns advanced test equipments and product line, perfect management, professional technical personnel and well-trained workers. TYCOTIU team keep developing newest product for our customer, that is why technical level of our products can be reached to the leading level, we also can help customer OEM/ODM.
