72v 96v 10kw 14000w V3 Electric Hub 273 Qs Motor 12000w ebike conversion kit 12000w hub motor e motorcycle 12kw 21 19 18 17 inch
72v 96v 10kw 14000w V3 Electric Hub 273 Qs Motor 12000w ebike conversion kit 12000w hub motor e motorcycle 12kw 21 19 18 17 inch
72v 96v 10kw 14000w V3 Electric Hub 273 Qs Motor 12000w ebike conversion kit 12000w hub motor e motorcycle 12kw 21 19 18 17 inch
72v 96v 10kw 14000w V3 Electric Hub 273 Qs Motor 12000w ebike conversion kit 12000w hub motor e motorcycle 12kw 21 19 18 17 inch
72v 96v 10kw 14000w V3 Electric Hub 273 Qs Motor 12000w ebike conversion kit 12000w hub motor e motorcycle 12kw 21 19 18 17 inch
72v 96v 10kw 14000w V3 Electric Hub 273 Qs Motor 12000w ebike conversion kit 12000w hub motor e motorcycle 12kw 21 19 18 17 inch
72v 96v 10kw 14000w V3 Electric Hub 273 Qs Motor 12000w ebike conversion kit 12000w hub motor e motorcycle 12kw 21 19 18 17 inch
72v 96v 10kw 14000w V3 Electric Hub 273 Qs Motor 12000w ebike conversion kit 12000w hub motor e motorcycle 12kw 21 19 18 17 inch

72v 96v 10kw 14000w V3 Electric Hub 273 Qs Motor 12000w ebike conversion kit 12000w hub motor e motorcycle 12kw 21 19 18 17 inch

FOB Reference Price: Get Latest Price
≥2 Sets
US $898
≥15 Sets
US $850
≥500 Sets
US $580
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
qs
Model Number:
HALO12K
Display:
LCD SW900 LED (Color display optional)
Battery Position:
Down Tube or customize
Product Name:
10000w/12000w/15000w/16000w ebike motorcycle kits
Feature:
high speed powerful
Power:
10000w/12000w/16000w
Controller:
150A/200A controller
Motor type:
Dc Brushless Non-Gear Motor
Application:
Electric Bicycle/motorcycle
Rated Speed:
100-140km/h
Noise (db):
<60db
Rated Voltage:
72V 84v 96v

Quick Details

Battery Capacity:
38.4Ah/42Ah/50Ah or customisable
Wheel Size:
18", 17", 19", 21"
Place of Origin:
Zhejiang, China
Brand Name:
qs
Model Number:
HALO12K
Display:
LCD SW900 LED (Color display optional)
Battery Position:
Down Tube or customize
Product Name:
10000w/12000w/15000w/16000w ebike motorcycle kits
Feature:
high speed powerful
Power:
10000w/12000w/16000w
Controller:
150A/200A controller
Motor type:
Dc Brushless Non-Gear Motor
Application:
Electric Bicycle/motorcycle
Rated Speed:
100-140km/h
Noise (db):
<60db
Rated Voltage:
72V 84v 96v
Products Description

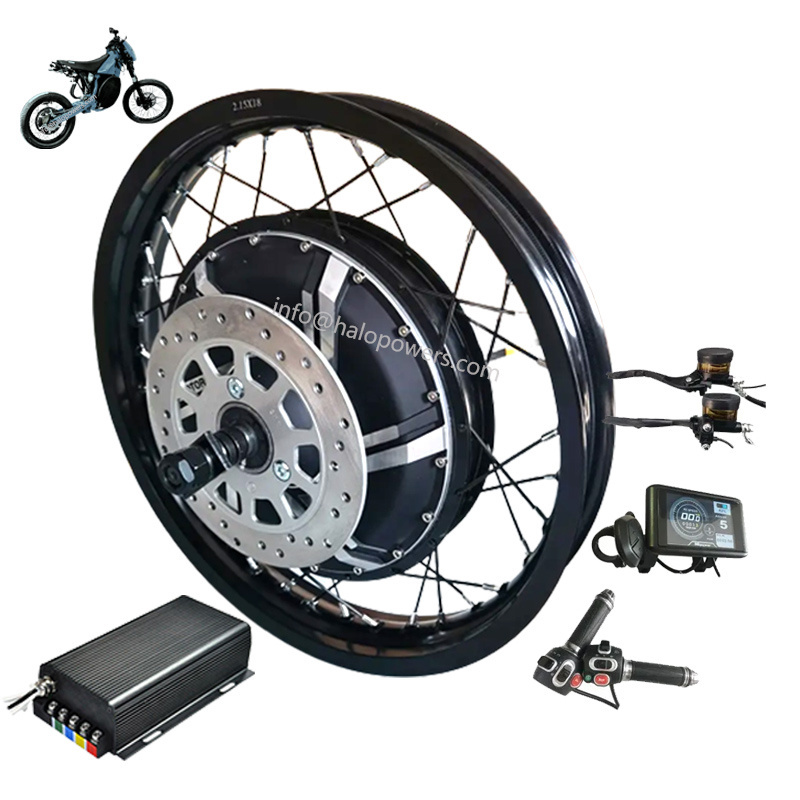

What the electric bike kit include?
1 * 72V 96V 12000W Powerful Brushless Gearless Hub Motor with Rim ( 17" /18"/19''/ 21" motorcycle rim)
1 * 150A/200A high-end sine wave program controller
1 * Twist Throttle
2 * Aluminum Alloy Brake Levers
1 * UKC1 Colorful Display
Option:
1 * Colorful LCD display (Option)
1 *Lithium Battery (Option)
1 * charger(Option)
1 * Front Wheel (Option)
1 * F/R Tyre (Option)

Specification
Specifications
1
Motor Type
BLDC Hub Motor with Permanent Magnets
2
Motor design
Spoke Motor with Double axle out
3
Spoke Hole
36pcs*4.2mm
4
Matching Wheel
17inch-21inch spoke wheel
5
Magnet Height
50MM
6
Pole Pairs
16 pairs(32PCS Curved Mangets)
7
Rated Power
8000W-12000w
8
Max Power
11280W(Peak 14000W)
9
Rated Voltage
72V( 72-144V Can be optional)
10
Speed
120km/h (30-115km/h can be customized)
11
Max Torque
200N. M
12
Max No-load RPM
1400RPM
13
Rear Fork width for installation
200mm
14
Max Efficiency
90%
15
Continious current
130A
16
Max current
190A ,Peak 260A
17
Brake type
Disc brake
18
Winding Core material
Aluminium
19
Cross Section of Phase wire
16 mm2
20
Hall sensor phasing angle
120 degree
21
Temperature Sensor
Optional
22
Max. Working Temperature
70 degree, Peak 120 degree
23
Waterproof Grade
IP54
24
N.W./G..W.
22kgs / 23kgs
25
Package Size
44*43*34CM
Details Images
Motor
It's brushess DC Non-gear rear motor.
the rim is stronger MOTORCYCLE double-wall aluminium alloy.
The top speed can more than 120km/h.fast and powerful motor.

controller
200A high-end sIne wave program controller
With multiple protection features such as over-current, over-temperature, over-voltage, under-voltage,speed, lack of phase and so on.
You can program the data according to your computer.
display
Colorful LCD display
Data display function: display cycling speed, single mileage and cumulative mileage, cycling timing, booster gear, motor running
power and temperature, battery voltage and power status, brake status; etc,contact us for the more detail use manual.
brake lever
The default configuration aluminium alloy brake lever
stable die-casting production process,classic streamlined design style


Throttle
half twist throttle
full twist throttle with speed set
full twist throttle
Battery and bracket,charger (option)
72V26.1Ah lithium battery/ or customize
72V38.4Ah lithium battery/ or customize
72V42Ah lithium battery/ or customize
72V50Ah lithium battery/ or customize with smart BMS.original grade A battery cell. Can put the battery on rear rack with bag,or customize the size and capacity based on your frame' needs.




Package
Five-layer corrugated box. Good package can be delivered to customer directly
1. with white sheet sponge to fix the rim tightly. 2. Wrap the other parts with bubble pack. 3. Layer corrugated carton 17/19/21"motorcycle rim:60x60x28cm
