Quick Details
-
Jacket:
-
PVC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
NYY Cable
-
Product name:
-
NYY Cable
-
Customized:
-
Ordinary, Fire-resistive or Flame retardant
-
Conductor Type:
-
Stranded
-
Core:
-
1-5 Cores
-
Temp Rating:
-
0°C-+70°C
-
Cable Standards:
-
IECA, BS, DIN
-
Color:
-
Customer's Requirment
-
Voltage:
-
0.6/1KV
Quick Details
-
Insulation Material:
-
PVC
-
Application:
-
Underground
-
Conductor Material:
-
Copper
-
Jacket:
-
PVC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
NYY Cable
-
Product name:
-
NYY Cable
-
Customized:
-
Ordinary, Fire-resistive or Flame retardant
-
Conductor Type:
-
Stranded
-
Core:
-
1-5 Cores
-
Temp Rating:
-
0°C-+70°C
-
Cable Standards:
-
IECA, BS, DIN
-
Color:
-
Customer's Requirment
-
Voltage:
-
0.6/1KV
Specification
|
Model Number
|
NYY Cable
|
|
Application
|
These cable can be used for underground installation on trays or ducts, wet or dry places. Nominal voltage 0.6/1 kV. Where there is a risk of mechanical
|
|
Core
|
Multi-core / 1-5 Core
|
|
Temp Rating
|
0°C/+70°C
|
|
Cable Standards
|
IECA, BS, DIN
|
|
packing
|
Carton/Plastic film/Wooven Fabric Roll/Wooden drum/Pallet
|
|
Conductor Material
|
Plain Annealed copper conductor
|
|
Conductor Type
|
Stranded
|
|
Insulation Material
|
PVC
|
|
Rated Voltage
|
0.6/1KV
|
Product Description
NYA (BV) Cable：
Is a cable made of copper material with a single core and coated with a single layer of PVC insulating material. if you who want to choose the NYA cable as an electrical installation in your place, it is recommended that you protect it with PVC pipe for safety because it is prone to peeling. Nominal voltage 450/750 V.
NYM (RVV) Cable：
Is a cable that consists of more than one copper core and is equipped with PVC insulation to make it safe in dry place for indoors or outdoors and is not recommended to plant underground. Nominal voltage 300/500 V.

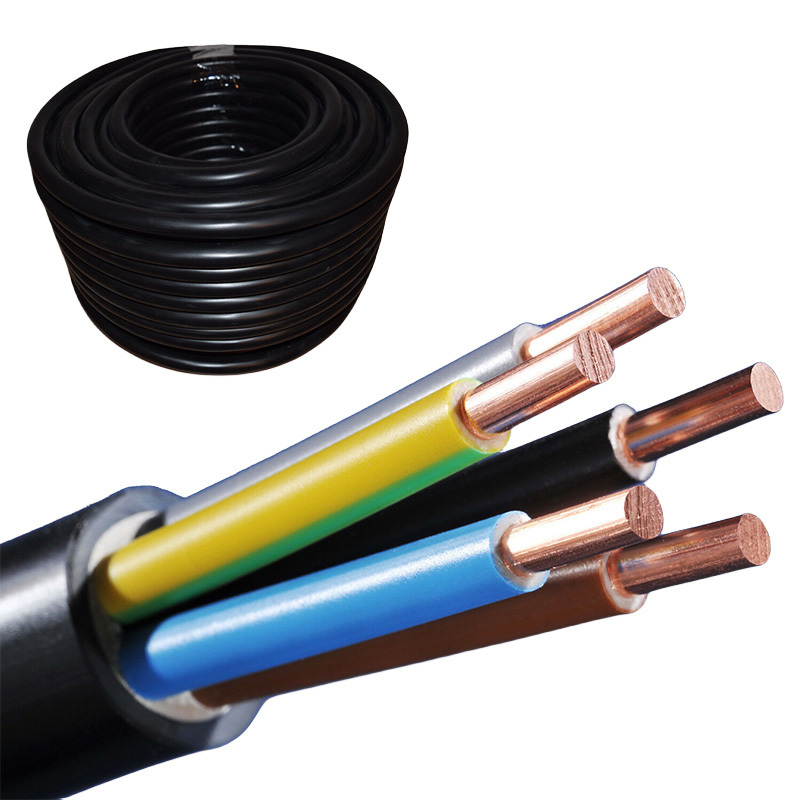

NYY Cable：
Is a type of cable that has a stronger PVC layer as its insulation and has more than 1 solid copper core. Unlike NYA and NYM cables, this
cable can be used for underground installation on trays or ducts, wet or dry places. Nominal voltage 0.6/1 kV.
