Quick Details
-
Brand Name:
-
Y&L
-
Model Number:
-
EDJ
-
Place of Origin:
-
Shanghai, China
-
Horsepower:
-
/
-
Cable Length:
-
/
-
Product name:
-
water pump for fire fighting
-
Theory:
-
Centrifugal Pump
-
Pump Spare Parts:
-
Pump Casing, Impeller, Seal, Coupling, Bearing, etc
-
Configuration:
-
Diesel engine pump+electric motor pump+jockey pump
-
Coupling:
-
High Elastic Coupling
-
Frequency:
-
50HZ/60HZ
-
Seal:
-
Meachnical Seal or packing seal
-
Keywords:
-
diesel fire fighting pump
-
Feature:
-
High Efficiency High Pressure
-
Standard or Nonstandard:
-
Standanrd
Quick Details
-
Application:
-
Industrial Utilities, Irrigation and Agriculture
-
Pressure:
-
High Pressure
-
Warranty:
-
1year
-
Brand Name:
-
Y&L
-
Model Number:
-
EDJ
-
Place of Origin:
-
Shanghai, China
-
Horsepower:
-
/
-
Cable Length:
-
/
-
Product name:
-
water pump for fire fighting
-
Theory:
-
Centrifugal Pump
-
Pump Spare Parts:
-
Pump Casing, Impeller, Seal, Coupling, Bearing, etc
-
Configuration:
-
Diesel engine pump+electric motor pump+jockey pump
-
Coupling:
-
High Elastic Coupling
-
Frequency:
-
50HZ/60HZ
-
Seal:
-
Meachnical Seal or packing seal
-
Keywords:
-
diesel fire fighting pump
-
Feature:
-
High Efficiency High Pressure
-
Standard or Nonstandard:
-
Standanrd
Products Description
1.Product Description

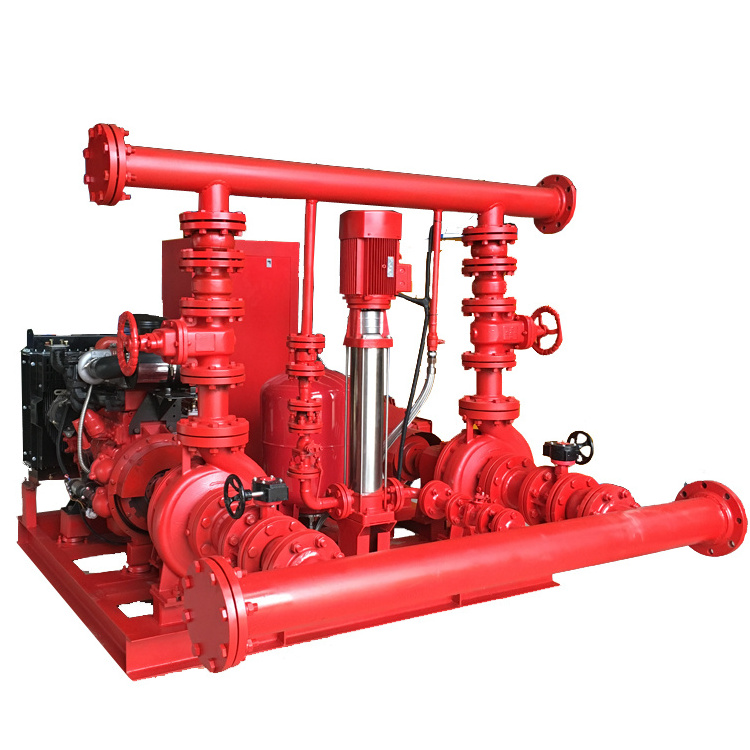

EDJ series is a packaged fire pump set,generally an automatic fire water supply system It consists of a main pump (driven by an electrical motor),stand by pump (driven by diesel engine) and a jockey pump.This model comes equipped with a separate
controller,or one that is attached to the skid,The package also contains discharge valves,common header,and accessories.
controller,or one that is attached to the skid,The package also contains discharge valves,common header,and accessories.
2.Working Principle
Generally the pipeline network's pressure is between the low pressure P1 and the high pressure P2.When the above pressure is lower than P1,the pressure maintaining pump will start automatically and not stop until the pressure rises gradually to P2.Due to the pipeline network's leakage,its pressure will drop to P1 gradually,and then the pressure maintaining pump will start automatically again.with such a repeated process,the pipeline network's pressure is maintained between P1 and P2 all the time.when the pipeline network's pressure can't be maintained between P1 and P2 (for instance,when the water consumption increases a lot) and drops to the minimum pressure P3,the electric pump will start automatically and the pressure will rise to Pw and meet the need for fire water supply,if the mains supply is power-off or the electric pump fails,the pressure will continue to drop from P3 to the ultimate pressure P4.then the diesel pump set will start automatically,and the pressure will rise to Pw and meet the need for fire water supply.the electric or diesel pump shall be stopped manually after human judgment (except automatic switching ).
|
Product Name
|
EDJ fire fighting pump set
|
|
|
|
|||
|
Structure
|
Single stage centrifugal pump
|
|
|
|
|||
|
Pump material
|
Cast Iron
|
|
|
|
|||
|
Impeller material
|
Cast Iron or Brass
|
|
|
|
|||
|
Capacity
|
500Gpm( pls tell us your need flow rate)
|
|
|
|
|||
|
Head
|
108Psi(Pls tell us your need head)
|
|
|
|
|||
|
Remark
|
We are manufacturer, we pay attention to each details to ensure the pump quality!
|
|
|
|
|||
