Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Jery
-
Model Number:
-
JRPU
-
Product name::
-

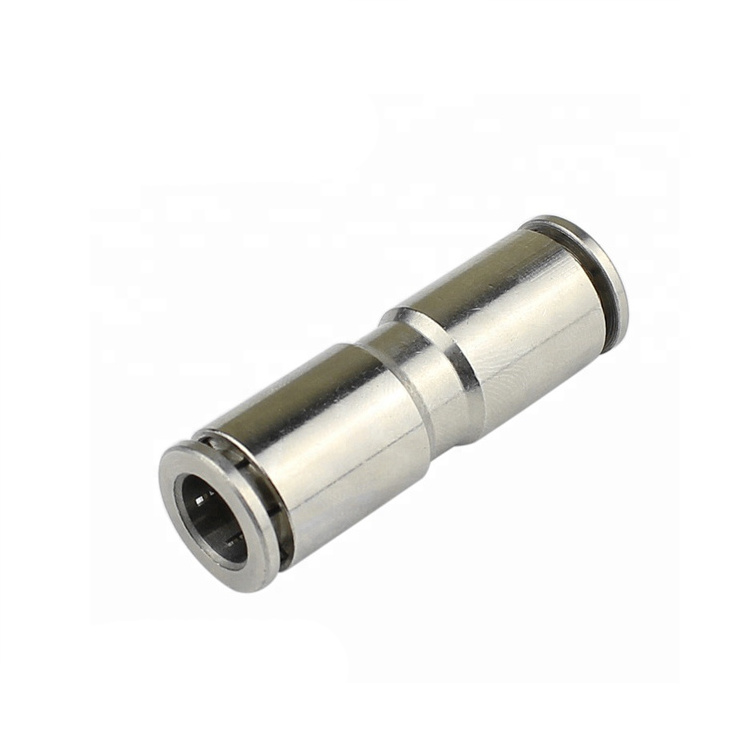

PU Pneumatic Fitting
-
Head Code::
-
Round
-
Working Pressure::
-
2.5MPa
-
Working Temperature::
-
-30℃~100℃
-
Tube size::
-
4/6/8/10/12/14/16
-
Thread type::
-
BSP, G, NPT
-
Quality control system::
-
ISO9001
Quick Details
-
Technics:
-
Forged
-
Shape:
-
straight
-
Head Code:
-
ROUND
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Jery
-
Model Number:
-
JRPU
-
Product name::
-
PU Pneumatic Fitting
-
Head Code::
-
Round
-
Working Pressure::
-
2.5MPa
-
Working Temperature::
-
-30℃~100℃
-
Tube size::
-
4/6/8/10/12/14/16
-
Thread type::
-
BSP, G, NPT
-
Quality control system::
-
ISO9001
Product Feature
1.Pneumatic fittings are ready to use, offering fast assembly with no need for tools and offers a broad range of over 1,000 com posite push-in pneumatic fittings to complement our established all brass，nickel plated , Pneumatic fitting series.
2.Releasable stainless-steel grab ring to grip nylon or polyurethane tube (95 or 98durometer).
3.Nickel plated brass components provide corrosion and contamination resistance and an extended life.
4.Pre applied thread sealant on all taper threads and recessed captive O-ring on parallel threads provides optimum rapid sealing Immediate quality sealing using silicone free U-packing.
|
Working Pressure
|
0.095-2.5 MPa
|
|
Proof Pressure
|
1.6 Mpa
|
|
Proof Vacuum Pressure
|
-100Kpa(10Torr)
|
|
Working Temp
|
-30℃~100℃
|
|
Material
|
Brass with nickle plated
|
|
Medium
|
Air - Water - Vacuum
|
|
Applicable Tube
|
PU / PA / PE / PVC
|
|
Features
|
1.Designed for Polyurethane or Nylon tubing.
2.Simple installation pneumatic push in connector. 3.After installation, the direction of the tube can be changed freely. 4.Elliptical release ring help to connect tube easily by manual, no special tools required. 5.Outside (and Inside where applicable) hexagonal wrench tightening. 6. PV fittings are only used for industrial automatic apparatus and can not be applied on any medicinal equipment. |
|
Note
|
1.Due to the difference between different monitors, the picture may not reflect the actual
color of the item. 2.Pay attention to the column of size and color, you could find a variety of product types and quantities for your choice,the more your purchase the best price you get. Thank you! |
1.Q: Are you trading company or manufacturer ?
A: Our factory in Ningbo Fenghua and our export office in Ningbo.
2.Q: What type of diaphragm used in oil media?
A: Usually, NBR, VITON, PTFE, and EPDM diaphragms are applicable in oil media.
3.Q: I have been told that 2-way valves only allow fluid flow in one direction is it correct?
A: Generally, 2-way valves allow fluid according to the cylinders. If there is a single-acting cylinder fluid flow in a single direction when a double-acting cylinder being used, fluid is able to flow in both directions.
4.Q: I am looking for a valve factory for a long term business relationship. What product you main specialized?
A: We've been in valve field since 2000s, mainly for solenoid valve, brass valve,screw air compressor solenoid valve, automobile valve,air treatment units and air suspension.
5.Q: I have a drawing for customized valve, can you do it?
A:Sure, we have our own CNC machine. No matter curved surface or complex process can be finished.
6.Q: Do you have stock for RTS?
A: Conventional products are fully stock on warehouse, once you place order, it will be send out in 1 day.
7.Q: We are concerned about the technical support after using your product. Any technical engineers can be provided?
A: Yes, our engineer 24 hrs onlineonce you contact.
8.Q: What methods of payment do you accept?
A: T/T, Paypal and credit card can be accept.
9.Q: What is the difference between a direct acting solenoid valve and a solenoid- pilot operated valve?
A: In a direct acting valve, the main body or poppet is moved using magnetic force generated by the electrical coil to shift the valve. In a solenoid-pilot operated valve, the main body or plunger is moved using force developed from the available pilot pressure. The coil in this case is used to control the pilot for the pilot piston.
10.Q: How many materials can be used apply to solenoid valve ?
A: Stainless steel 316L(Sanitary grades), Stainless Steel 316&304, Brass and cast steel.
11.Q:About samples
A:We can provide samples production and service. Usually 4 to 7 days, the sample can be sent to your hands. We will choose the shipping way as you required: by sea,by air,by express ect. Any question about samples, please contact us.
12.Q:For OEM products
A:We will finish the production within 20 days after payment has been confirmed.
