Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Mounting Hole Size:
-
22mm
-
Stucture:
-
1NO1NC
-
Operation type:
-
monentary
-
Switch Rating:
-
5A 250VAC
-
Protection Grade:
-
IP67 IK10
-
Material:
-
stainless steel
-
Terminal:
-
J pin terminal
-
LED Voltage:
-
12V.24V.220V.2V.3V.5V.6V. 36V.48V.110V
-
Lamp color:
-
red green yellow blue white
-
Certificate:
-
CQC CE ROHS ISO9001 MSDS KC
Quick Details
-
Protection Level:
-
IP67
-
Max. Current:
-
5A
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Mounting Hole Size:
-
22mm
-
Stucture:
-
1NO1NC
-
Operation type:
-
monentary
-
Switch Rating:
-
5A 250VAC
-
Protection Grade:
-
IP67 IK10
-
Material:
-
stainless steel
-
Terminal:
-
J pin terminal
-
LED Voltage:
-
12V.24V.220V.2V.3V.5V.6V. 36V.48V.110V
-
Lamp color:
-
red green yellow blue white
-
Certificate:
-
CQC CE ROHS ISO9001 MSDS KC

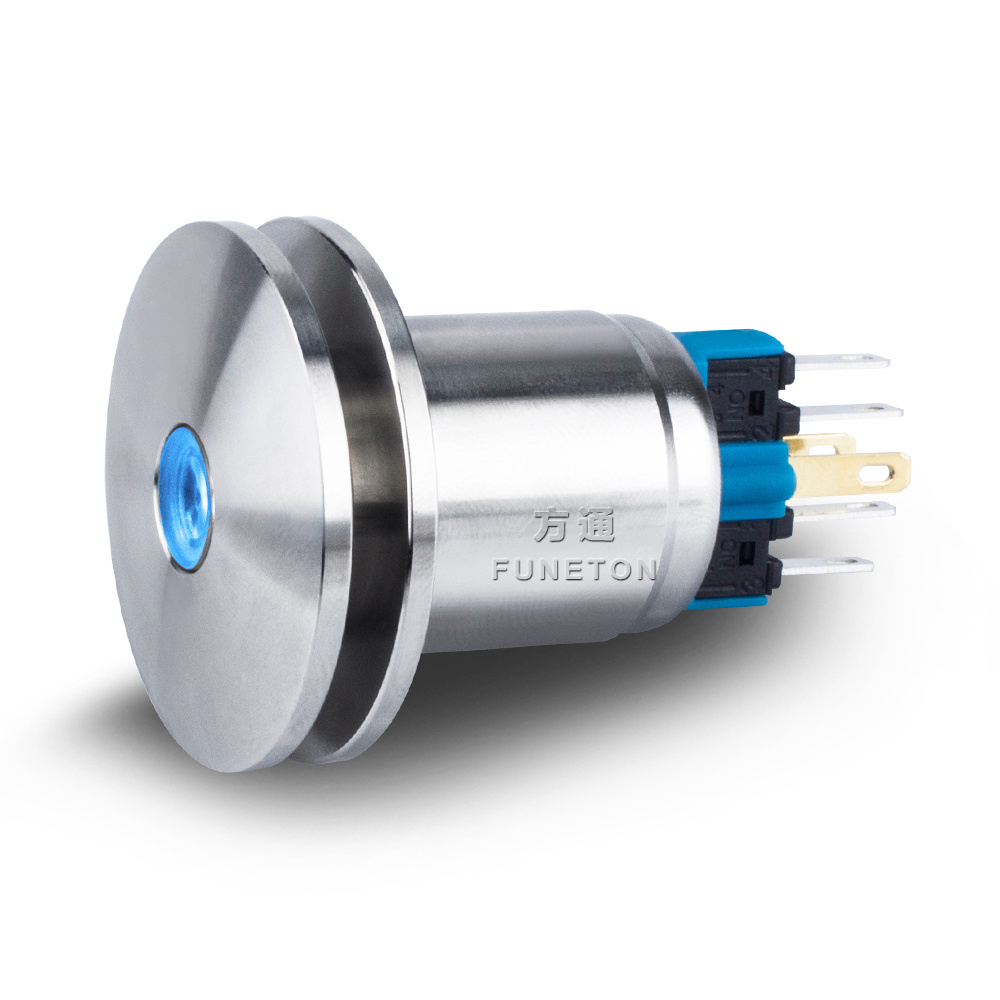

16mm 19mm 22mm 25mm blue 12V 5V 24V LED illuminated momentary push button foot pedal switch
| Model Description |
| Product | FT22 push button switch |
| Mounting Hole Size | 22MM |
| Head Shape | ball head |
| Switch Combination | 1NO1NC |
| Operation | momentary |
| Illuminating Type | dot |
| Terminal Type | 2.8*0.5 J pin terminal |
| Illuminating Color | red, green, blue, yellow(orange), white |
| Lamp Voltage | 2V / 3V / 5V / 6V / 12V / 24V / 36V / 48V / 110V / 220V / 250V |
| Shell Material | stainless steel |
| Switch Parameters |
| Project | Parameter | Project | Parameter |
|
Contact Type |
point contact |
Operation Distance |
2.8mm |
|
Contact Resistance |
≤50mΩ |
Operating Pressure |
5~6N |
|
Insulation Resistance |
≥1000mΩ |
Panel Thickness |
≤10mm (customizable) |
|
Dielectric Strength |
2000VAC/min | Nut Torque | 5~14Nm |
|
Environment Temperature |
-20℃~+55℃ |
Contact Material |
silver alloy |
| Waterproof | IP67 |
Button Material |
stainless steel |
|
Protection Levels |
IK10 |
Body Material |
stainless steel |
|
Electrical Life |
rated : 5A 250VAC |
Nut Material |
brass nickel plated |
| momentary = 200000 cycles |
Terminal Material |
H62 silver plated | |
| self-locking = 50000 cycles |
Spring Materia |
improved steel wire | |
|
Mechanical Life |
momentary = 500000 times | Waterproof Circle Material | silica gel |
| self-locking = 50000 times |
Lamp Bead |
LED |
| Led Lamp Parameters |
| Project | Parameter |
| Led Type | cool high brightness LED lamp (dual chip) |
| Luminous Color | red, green, blue, yellow, orange, white, purple, pink (customizable) |
| Rated Voltage | AC/DC 2~48V, AC110~220V |
| Rated Current | ≤20mA |
| Reference Life | 50000 hours |
