Quick Details
-
Size:
-
13137x2500x3850mm
-
Place of Origin:
-
China
-
Material::
-
Steel
-
OE NO.::
-
Customized
-
Certification::
-
ASME
-
Volume::
-
30m3~70m3 or customized
-
Air Test Pressure::
-
1.724MPa or customized
-
Materials::
-
SA-516, SA-517, SA-612, P460, Q420R, Q370R, etc
-
Design Pressure::
-
1.724MPa or customized
-
Test Pressure (Hydraulic Horizont):al)::
-
2.25MPa or customized
-
Max Payload::
-
15 tons ~35 tons or customized
-
Corrosion Allowance::
-
1mm or Customized
-
Certification:
-
DOT
-
OE NO.:
-
BT-CT126T
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
23000kg
-
Brand Name:
-
CLW
-
Size:
-
13137x2500x3850mm
-
Place of Origin:
-
China
-
Material::
-
Steel
-
OE NO.::
-
Customized
-
Certification::
-
ASME
-
Volume::
-
30m3~70m3 or customized
-
Air Test Pressure::
-
1.724MPa or customized
-
Materials::
-
SA-516, SA-517, SA-612, P460, Q420R, Q370R, etc
-
Design Pressure::
-
1.724MPa or customized
-
Test Pressure (Hydraulic Horizont):al)::
-
2.25MPa or customized
-
Max Payload::
-
15 tons ~35 tons or customized
-
Corrosion Allowance::
-
1mm or Customized
-
Certification:
-
DOT
-
OE NO.:
-
BT-CT126T
Product Description

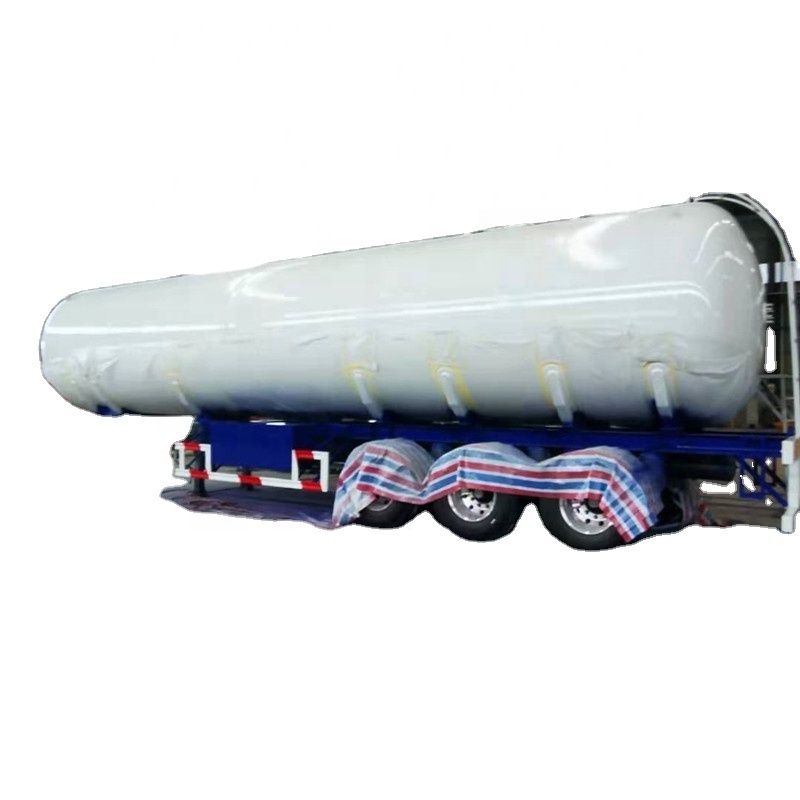

L pg tank tanker semi trailer truck for sale in dubai
LPG Semi-trailer
CLW has 20-plus years of experience in design and fabrication of LPG semi-trailers. With European and American certificates of pressure vessels, CLW can supply various semi-trailers as per Chinese standard, international standards, and tailered design register, etc. CLW has cooperated with the international reputed sulliers of valves, instruments and other accessories, such as REGO, FISHER, ROCHESTER, WIKA, CORKEN, BLACKMER, etc. in the long term so as to supply the optional brands of valves, pumps and flow meters etc. as per clients' requirements..
Technical speccification
Design code: ASME BPVC VIII-1/VIII-2. EN 12493, GB/T 19905, JB4732
Volume: 30m³~70m³
Materials: SA-516, SA-517, SA-612, P460, Q420R, Q370R, etc.
Tank type: Cylindrical tank, Eccentric cone tank, etc.
Materials: SA-516, SA-517, SA-612, P460, Q420R, Q370R, etc.
Tank type: Cylindrical tank, Eccentric cone tank, etc.
Vehicle type:
ASME codes pressure vessel material plus international brands of valves and safety accessories
Chinese standard pressure vessel material plus Chinese brands of valves and safety accessories.
ASME codes pressure vessel material plus international brands of valves and safety accessories
Chinese standard pressure vessel material plus Chinese brands of valves and safety accessories.
Note:
The information of CIMC HONTO LPG semi-trailers listed as below are only for recommendations and references. CIMC Hongtu, as the TOP 1 manufacturer of LPG transport tankers in China, can provide customized products according to customers' requirements.
SPECIFICATIONS
|
I. ASME Code
|
||||||
|
Capacity
|
38.3m³
|
46m³
(with pump)
**
|
47.5m³
|
55m³
|
58m³
|
60m³
(with pump)
**
|
|
*Max. Payload
|
18000kg
(19.15 t)
|
21300kg
(23 t)
|
23000kg
(23.75 t)
|
25710kg
(27.5 t)
|
26130kg
(29 t)
|
25500kg
(30 t)
|
|
Kerb Weight
|
11900kg
|
16900kg
|
14000kg
|
16790kg
|
17300kg
|
22150kg
|
|
Gross Vehicle Weight
|
29900kg
|
38200kg
|
37000kg
|
42500kg
|
43430kg
|
47650kg
|
|
Outline Dimension
|
L:10470mm
W:2550mm
H:3920mm
|
L:13152mm
W:2500mm H:3850mm |
L:13137mm
W:2500mm
H:3850mm
|
L:14297mm
W:2500mm H:4000mm |
L:13238mm
W:2640mm
H:4050mm
|
L:13052mm
W:2550mm H:4000mm |
|
Design Pressure
|
1.724 MPa
|
2.26 MPa
|
1.724MPa
|
1.724MPa
|
1.724MPa
|
2.5MPa
|
|
MAWP
|
1.724 MPa
at 51.7℃
|
2.26 MPa at 70℃
|
1.724MPa
|
-
|
1.724MPa
|
2.5MPa
|
|
Design Temperature
|
51.7℃
|
70℃
|
-23.3/51.7℃
|
50℃
|
-23.3/51.7℃
|
-40/+70℃
|
|
Corrosion Allowance
|
0mm
|
2mm
|
0mm
|
0mm
|
0mm
|
1mm
|
|
Material of Shell
|
SA-612M(N)
|
SA-537M
|
SA-612M(N)
|
SA-612M(N)
|
SA-612M(N)
|
SA-612
|
|
Material of Head
|
SA-612M(N)
|
SA-537M
|
SA-612M(N)
|
SA-612M(N)
|
SA-612M(N)
|
SA-612
|
|
Thickness of Shell
|
12.5mm
|
15mm
|
12mm
|
12.5mm
|
14mm
|
16mm
|
|
Thickness of Head
|
8mm
|
10mm
|
8mm
|
8mm
|
8mm
|
16mm
|
|
Test Pressure
(Hydraulic Horizontal)
|
2.25MPa
|
3.4MPa
|
2.24MPa
|
2.25MPa
|
2.25MPa
|
3.58MPa
|
|
Air Test Pressure
|
1.724MPa
|
2.26MPa
|
1.724MPa
|
1.724MPa
|
1.724MPa
|
-
|
Valves & Instruments
Packaging & Shipping
Packaging Details Nude/ Ro-ro ship / Bulk transport / Container packing / SKD / etc
