Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
DSDST
-
Model Number:
-
101-104
-
Items:
-

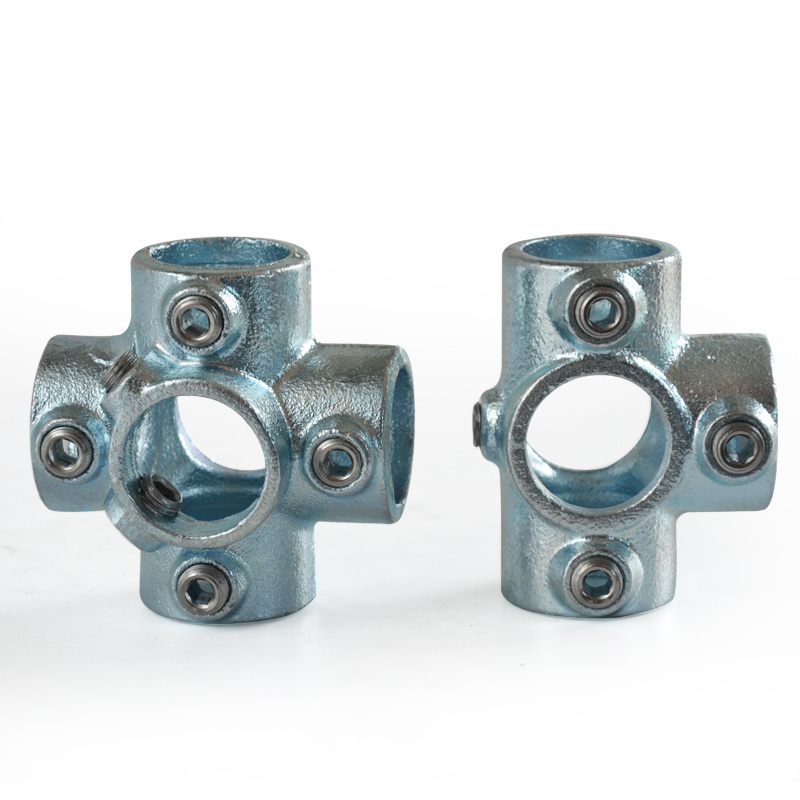

Malleable iron pipe clamps
-
Material:
-
Malleable Cast Iron
-
Standard:
-
EN 1562
-
Tensile Strength:
-
≥350
-
Proof Stress:
-
≥210
-
Elongation:
-
≥10
-
Certification:
-
TUV
-
Keyword of pipe fittings:
-
Structural Pipe Fittings
-
Connection method:
-
Jackscrew
-
Surface:
-
Black Galvanized
Quick Details
-
Technics:
-
Casting
-
Shape:
-
Equal
-
Head Code:
-
Square
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
DSDST
-
Model Number:
-
101-104
-
Items:
-
Malleable iron pipe clamps
-
Material:
-
Malleable Cast Iron
-
Standard:
-
EN 1562
-
Tensile Strength:
-
≥350
-
Proof Stress:
-
≥210
-
Elongation:
-
≥10
-
Certification:
-
TUV
-
Keyword of pipe fittings:
-
Structural Pipe Fittings
-
Connection method:
-
Jackscrew
-
Surface:
-
Black Galvanized
|
Product Description |
|
|
Product Name |
Malleable Cast Pipe Clamps |
|
Size |
21.3mm, 26.9mm, 33.7mm, 42.4mm, 48.3mm, 60.3mm |
|
Material |
Malleable Cast Iron (KTH350) |
|
Color |
Sliver or Black |
| Type |
plain end.
|
|
Related Products |
Flange, Threaded Pipe Nipples, Reducers, Street Elbow, Side Outlet. |
|
Elbows,Tees, Crosses, Sockets, Plugs, Caps, Unions, Bushings, Hex Nipples, |
|
|
Surface Treatment |
Hot Dip Galvanized /Electrogalvanizing / Natural Black / Coating Black |
|
Technology |
Electrophoresis and hot dip,spraying coating. |
|
Usage |
Connect Framework |
|
Pressure |
Class 150, Class 300, PN10, PN16 |
|
Properties |
Tensile Strength ≥ 330MPa / Elongation ≥ 8% / Hardness < 163 / Working Pressure: Max 1.5MP / Test Pressure: Max 2.5MPa |
|
MOQ |
NO Min Order Quantity. |
|
Packing |
carton+wood pallet |
|
Delivery Time |
15 days |
|
Payment Term |
T/T, or To be negotiated |
|
S IZE SPECIFICATION |
||
|
PIPE CLAMPS SIZE |
NOMINAL BORE |
OUTSIDE DIAMETER |
|
T |
1/2 ” |
21.3mm |
|
A |
3/4 ” |
26.9mm |
|
B |
1 ” |
33.7mm |
|
C |
1-1/4 ” |
42.4mm |
|
D |
1-1/2 ” |
48.3mm |
|
E |
2 ” |
60.3mm |
More Specifications, Please contact us for free. thanks
Providing Customized service, Category is complete and Quality guaranteed.
Applications include:
- Barriers and Handrails
- Balustrades
- Handrails for Mezzanine floors & staircases
- Permanent or temporary guard rails
- Playground equipment
- Sports goals
- Shopping trolley bays
- Agriculture enclosures
