Quick Details
-
Voltage:
-
3 Phase 380-420V 50/60Hz
-
Dimension(L*W*H):
-
Customized
-
Weight (T):
-
0.5 T
-
Power (kW):
-
45
-
Capacity:
-
10-200kg
-
Power supply:
-
3 Phase 380-420V 50/60Hz
-
Melting Capacity:
-
100kg or customized
-
Duty cycle::
-
100%
-
Cooling way:
-
Water cooling
-
MAX Input Current:
-
23-240A
-
MAX Temperature:
-
1500-2000℃
-
Weight:
-
Customized
-
Certification:
-
ISO9001
Quick Details
-
Place of Origin:
-
Henan, China
-
Core Components:
-
melting furnace
-
Brand Name:
-
SHENNAI
-
Voltage:
-
3 Phase 380-420V 50/60Hz
-
Dimension(L*W*H):
-
Customized
-
Weight (T):
-
0.5 T
-
Power (kW):
-
45
-
Capacity:
-
10-200kg
-
Power supply:
-
3 Phase 380-420V 50/60Hz
-
Melting Capacity:
-
100kg or customized
-
Duty cycle::
-
100%
-
Cooling way:
-
Water cooling
-
MAX Input Current:
-
23-240A
-
MAX Temperature:
-
1500-2000℃
-
Weight:
-
Customized
-
Certification:
-
ISO9001
Product Description

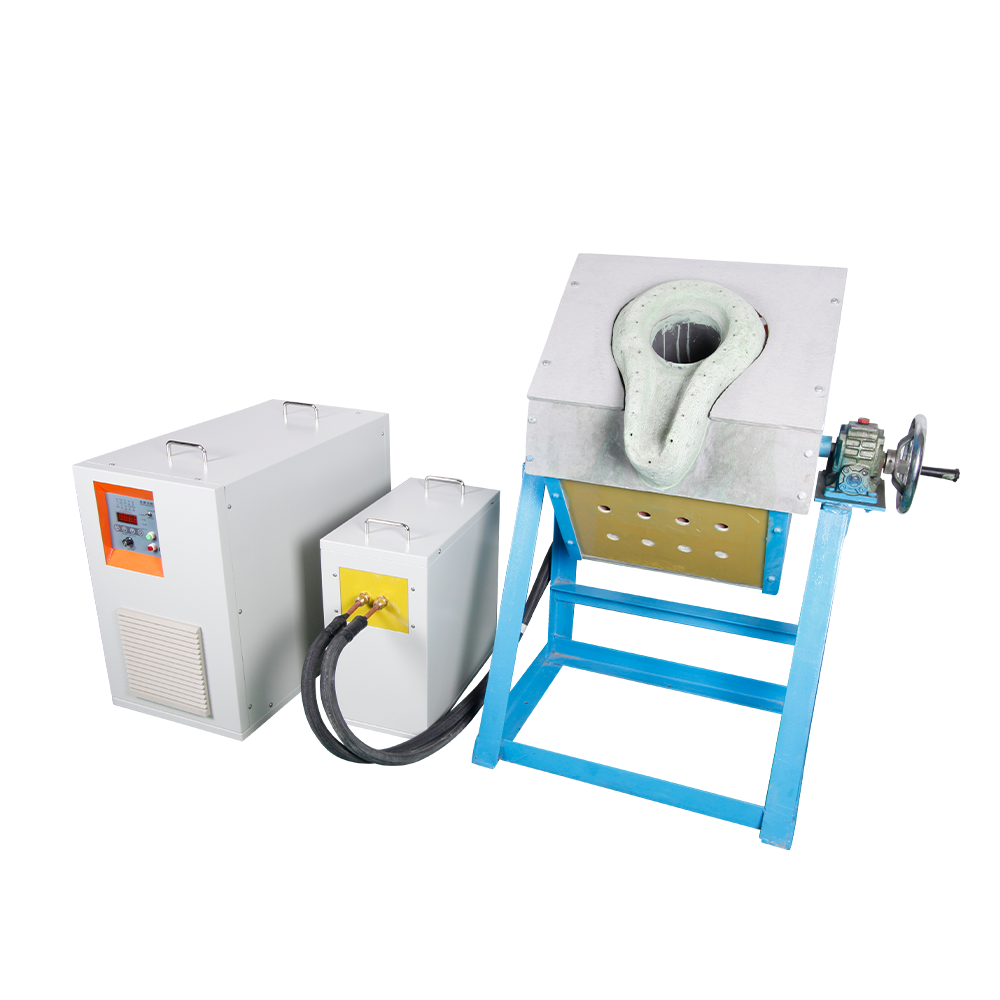

10-250 kg capacity copper,silver,aluminum,iron,steel,gold melting furnace
Main features of intermediate frequency furnace:
- Installation and operation are very simple and convenient.
- Ultra-small size, light weight, removable, covering less than one square meter.
- 24 hours uninterrupted melting capacity.
- Power saving.
- It is convenient to replace furnace bodies with different weights, different materials and different firing methods to meet various melting requirements.
- The ultra-small medium frequency induction heating power supply is completely different from the traditional medium frequency power supply.
- Good heat permeability and uniform temperature.
- The medium frequency magnetic field has a magnetic stirring effect on the molten metal, which is beneficial to the uniform composition and scum.
- According to the recommended equipment and maximum melting capacity, the melting time per furnace is 20-30 minutes.
technical parameter:
‹The following parameters are for reference only, please refer to Shenna recent parameters›
Main Model | Max input power | Smelting capacity of commonly used materials | |||
Steel ,iron , stainless steel | Gold | Copper ,silver ,tin | Aluminum and aluminum alloy | ||
SN-15 | 15KW | 3KG | 10KG | 10KG | 3KG |
SN-25 | 25KW | 5KG | 20KG | 20KG | 5KG |
SN-35 | 35KW | 10KG | 30KG | 30KG | 10KG |
SN-45 | 45KW | 18KG | 50KG | 50KG | 18KG |
SN-70 | 70KW | 25KG | 100KG | 100KG | 25KG |
SN-90 | 90KW | 40KG | 120KG | 120KG | 40KG |
SN-110 | 110KW | 50KG | 150KG | 150KG | 50KG |
SN-160 | 160KW | 100KG | 250KG | 250KG | 100KG |
