Quick Details
-
Product name:
-
China New Automated Gas Fuel Dispenser for Gasoline Price
-
Keywords:
-
Fuel Dispenser
-
Fuel Dispenser:
-
5-50L/min
-
Voltage:
-
220V, 50Hz
-
Min. Measured:
-
5L
-
Motor Power:
-
750w
-
Ambient Temp.:
-
-25℃~+55℃
-
Noise:
-
≤70dB(A)
-
Oil Medium:
-
Gasoline, Diesel, Kerosene
-
Ex-proof:
-
Ex db mb II B T4 Gb
Quick Details
-
Place of Origin:
-
Henan
-
Brand Name:
-
Leader Energy
-
Model Number:
-
LD32Z212 (tatsuno type parts)
-
Product name:
-
China New Automated Gas Fuel Dispenser for Gasoline Price
-
Keywords:
-
Fuel Dispenser
-
Fuel Dispenser:
-
5-50L/min
-
Voltage:
-
220V, 50Hz
-
Min. Measured:
-
5L
-
Motor Power:
-
750w
-
Ambient Temp.:
-
-25℃~+55℃
-
Noise:
-
≤70dB(A)
-
Oil Medium:
-
Gasoline, Diesel, Kerosene
-
Ex-proof:
-
Ex db mb II B T4 Gb

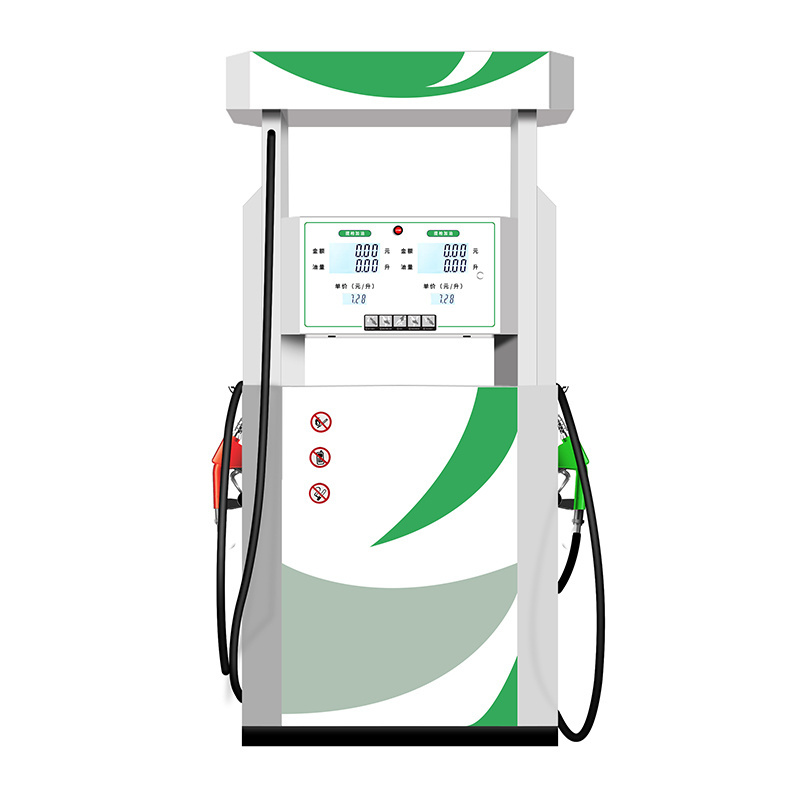

China New Automated Gas Fuel Dispenser for Gasoline Price LD32Q212
Products Description
LD Series offers functional and reliable models in single and dual configurations. There are suction type and submersible type, which use rugged components, making them dependable even in harsh field conditions.
LD32Q212
1 x Product ( Suction type)
2 x Tatsuno type Flow meter
2 x OPW type Nozzle 11A, 3/4" NPT, outlet: 13/16"
2 x Rubber hose, black color, length:4.5 M with coupling
2 x Solenoid valve
2 x Breakaway valve
2 x Hose swivel
1 x Electronic Controller
2 x Preset keyboard
4 x Display board for Total and Volume
4 x Display board for unit price
2 x Emergency Stop Button
Stainless Steel side panel, all the remain paiting body
Power supply: 220V, 50hz
Package: Standare Export Carton
Product Paramenters
|
PRODUCT SPECIFICATION
|
|
|
|
|
|
|
||||||
|
Model
|
Pump
|
Nozzle
|
Oil Product
|
Display
|
Hose Size
|
Voltage
|
||||||
|
LD32Z111
|
Suction Type
|
1
|
1
|
2
|
3/4"
|
220V/380V, 50Hz/60Hz
|
||||||
|
LD32Z212
|
Suction Type
|
2
|
1
|
4
|
3/4"
|
220V/380V, 50Hz/60Hz
|
||||||
|
LD32Z222
|
Suction Type
|
2
|
2
|
4
|
3/4"
|
220V/380V, 50Hz/60Hz
|
||||||
|
LD32Q111
|
Submersible Type
|
1
|
1
|
2
|
3/4"
|
220V/380V, 50Hz/60Hz
|
||||||
|
LD32Q212
|
Submersible Type
|
2
|
1
|
4
|
3/4"
|
220V/380V, 50Hz/60Hz
|
||||||
|
LD32Q222
|
Submersible Type
|
2
|
2
|
4
|
3/4"
|
220V/380V, 50Hz/60Hz
|
||||||
Please kindly supply us with the bellowing information when sending us an inquiry.
1. Voltage of the motor you need, 220V or 380V?
2. How many types of fuel need to be fueling? 1 product, 2 products, or 3 products.
3. With how many nozzles?
4. Would you like Tatsuno, Tokheim, or Bennett flow meter and pump?
5. How many sets you may need?
