Quick Details
-
Brand Name:
-
Fengbo
-
Model Number:
-
FB-SWM-DN32
-
Product name:
-

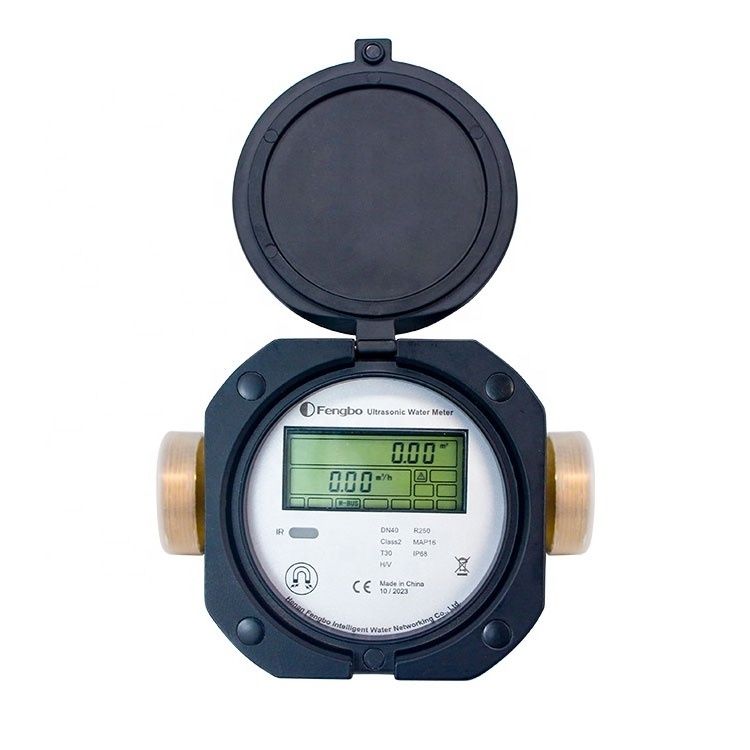

Ultrasonic Water Meter
-
Application:
-
Family, School, Industrial park etc.
-
Certificate:
-
ISO, CE
-
Capacity:
-
12000 pcs/month
-
Flow Profile Sensitiivty Levels:
-
U5/D3
-
Protection class:
-
IP68
-
Brand:
-
Fengbo
-
Measuring accuracy:
-
R250
-
Function:
-
Remote Shut on/off Valve
Quick Details
-
Warranty:
-
1 Year
-
Type:
-
Ultrasonic meters, Prepaid water meters
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Fengbo
-
Model Number:
-
FB-SWM-DN32
-
Product name:
-
Ultrasonic Water Meter
-
Application:
-
Family, School, Industrial park etc.
-
Certificate:
-
ISO, CE
-
Capacity:
-
12000 pcs/month
-
Flow Profile Sensitiivty Levels:
-
U5/D3
-
Protection class:
-
IP68
-
Brand:
-
Fengbo
-
Measuring accuracy:
-
R250
-
Function:
-
Remote Shut on/off Valve
High Quality Water Flow Sensor Mass Flow Meter Rs485 Smart Water Meter
Product Description
|
Meter Type
|
Ultrasonic Water Meter
|
|
Accuracy Class
|
Class B
|
|
Range Ratio
|
R250
|
|
Type
|
DN 32mm (DN40mm for your option as well)
|
|
Pressure Rating
|
MAP16
|
|
Max. Pressure Loss (Mpa)
|
<=0.040
|
|
Temperature Class
|
T30
|
|
Protection Class
|
IP 68
|
|
Environmental Class
|
Class O
|
|
EME Class
|
E1
|
|
Flow Field Sensitivity
|
U5/D3
|
|
Battery Life
|
10+2Years
|
|
Data Storage
|
24 months historical data, alarm time and alarm source
|
|
Pipe Segment Material
|
Steel(brass and Nylon, SS304 for your option)
|
|
Communication
|
M-BUS, 485, NB-loT, Wifi, 4G, 5G, GPRS, GSM, Lora, Lorwan
|
|
Installation Mode
|
H/V
|
Product Features
1. Dual channel measurement, high accuracy and good stability;
2. Having redundancy, even if one of the channels is blocked by foreign objects or abnormal, the
entire meter can still measure normally;
3. We have applied our company's proprietary flow measurement methods and intelligent data error
correction technology, resulting in high measurement accuracy and stability;
4. High definition and wide temperature 9-bit LCD display;
5. Built-in carp battery power supply can ensure service life for (6+1) years or more;
6. Equipped with the photoelectric interface, supporting handheld infrared meter reading tools for on
site reading;
7. Optional wired communication interface (M-BUS, 485) or wireless communication interface
(LoRa);
8. Optional built-in IoT communication module (4G or NB IoT) to form an IoT table;
9. Optional power supply methods:
1) Built-in battery powered (default configuration);
2) External power supply (used in 485 configurations, voltage range: DC (7.5-24) V) (to be specified
when ordering).
10. Self-diagnosis function: flow sensor fault alarm, temperature sensor open circuit and short circuit
alarm, measurement over range alarm, battery low voltage alarm.
2. Having redundancy, even if one of the channels is blocked by foreign objects or abnormal, the
entire meter can still measure normally;
3. We have applied our company's proprietary flow measurement methods and intelligent data error
correction technology, resulting in high measurement accuracy and stability;
4. High definition and wide temperature 9-bit LCD display;
5. Built-in carp battery power supply can ensure service life for (6+1) years or more;
6. Equipped with the photoelectric interface, supporting handheld infrared meter reading tools for on
site reading;
7. Optional wired communication interface (M-BUS, 485) or wireless communication interface
(LoRa);
8. Optional built-in IoT communication module (4G or NB IoT) to form an IoT table;
9. Optional power supply methods:
1) Built-in battery powered (default configuration);
2) External power supply (used in 485 configurations, voltage range: DC (7.5-24) V) (to be specified
when ordering).
10. Self-diagnosis function: flow sensor fault alarm, temperature sensor open circuit and short circuit
alarm, measurement over range alarm, battery low voltage alarm.
Main Technical Parameters:
FAQ
1. Are you a trade company or a manufacturer?
Henan Fengbo Intelligent Water Networking Co., Ltd. is a professional smart ultrasonic water meter manufacturer under Fengbo Group, integrating comprehensive R&D, intelligent production, marketing, and services. Fengbo Group has specialized in the metrological industry for 27 years.
2. How do I visit your factory?
Our factory is located in Yuanyang County, Xinxiang City, Henan province. It only takes less than one hour from the Xinzheng International Airport. We could pick you up from the airport.
3. Do you accept
customization
?
Yes, we do. We accept customization according to your requirements. We will provide you with satisfied products and services with our professional teams. We accept ODM, OEM, and OBM.
4. Can I get a sample for pretesting before I place a bulk order?
Yes, we could provide samples for you to do pretesting. Don't hesitate to get in touch with us for the details.
