Silicone rubber heaters have two types of heating circuits; the wire-wound style and the etched-foil style. Each style has its unique characteristics and should be selected accordingly. Wire-wound circuits are formed by creating a specific pattern out of resistance wire that is spiraled around a fiberglass core. The etched foil circuit is a flat circuit that is formed by chemically etching a resistive circuit out of nickel alloy resistance foil.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
vsec
-
Dimension(L*W*H):
-
Custom Size
-
Weight:
-
Based
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
After-sales Service Provided:
-
Field maintenance and repair service, No overseas service provided
-
Product name:
-
silicone rubber heater
-
Material:
-
silicone
-
connector:
-
lead wire/ceramic terminal/plug
-
Certification:
-
CE ROHS
Quick Details
-
Type:
-
Other
-
Power Source:
-
Electric
-
Voltage:
-
12-480v
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
vsec
-
Dimension(L*W*H):
-
Custom Size
-
Weight:
-
Based
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
After-sales Service Provided:
-
Field maintenance and repair service, No overseas service provided
-
Product name:
-
silicone rubber heater
-
Material:
-
silicone
-
connector:
-
lead wire/ceramic terminal/plug
-
Certification:
-
CE ROHS
Product Description

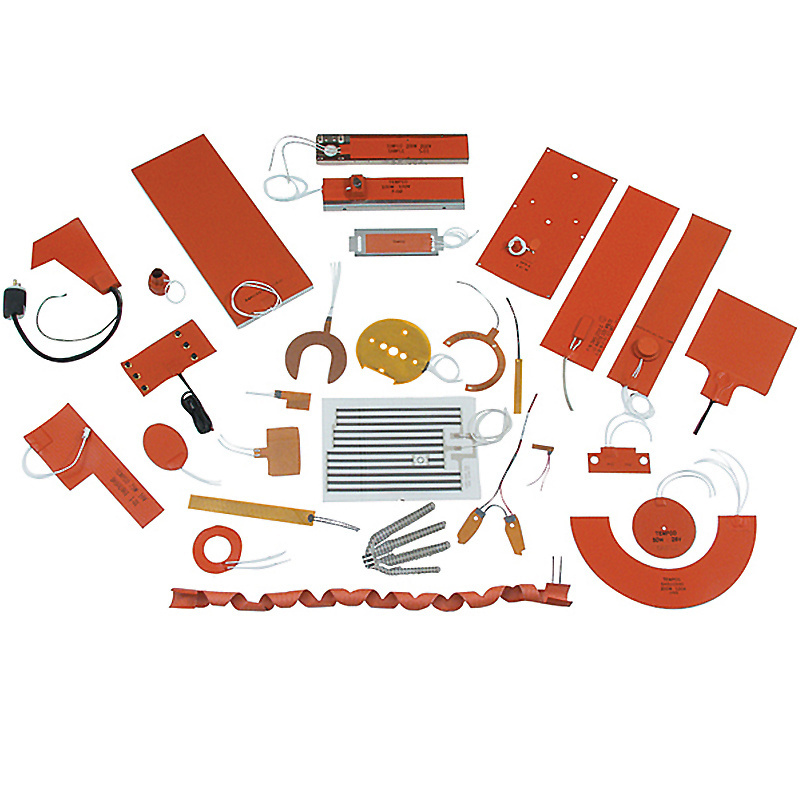

CE certificate silicon heating pad industrial ce 120v silicone band heater with digital controller
Features
1. The silicone is made of nickel,chromium alloy wire and insulating materials.Quickly heating,high thermal efficiency and long use life;
2. Water, acid and alkali resistance, high-strength of electric insulation;
3. Small space occupied when applying this heating product;
4. Its self-insulation and free-of-open-fire property greatly help simplify the techniques of heat preservation and thermal insulation;
5. Made in any size, the temperature of the product can be precisely adjusted by temperature controller;
6. Perfect after-sale service.
Application:
1
. Industrial equipment, pipelines, barrels, tanks, etc;
2. Thermal transfer equipment;
3. Medical equipment and devices;
4. Airplane engine heaters and aerospace industry;
5. Laser printers, duplicating machines.
|
Item
|
silione rubber heater
|
|
|
||
|
Dimension
|
customize(any size,any shape)
|
|
|
||
|
Maximum operating
|
250℃
|
|
|
||
|
Thickness
|
1.5mm
|
|
|
||
|
Voltage
|
12v,24v,110v,120v,220v,230v,240v,360v (AC & DC)
|
|
|
||
|
Wattage
|
0.3-1w/cm2
|
|
|
||
|
Thermostat
|
Analog or Digital display(optional)
|
|
|
||
|
thermistor
|
NTC,PT100,or others
|
|
|
||
|
3M self-adhesive
|
YES/NO(optional)
|
|
|
||
Internal structure
