Quick Details
-
Warranty:
-
1Years
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GP
-
Model Number:
-
GP-59WGM150
-
Torque:
-
High Torque, >15Nm
-
Motor type:
-
Gear Motor
-
Material of gear:
-
nylon/brass
-
load speed:
-
300rpm
-
Shaft Material:
-
Carbon steel / Stainless steel
-
Diameter of shaft:
-
6/8/10/12mm
-
Life time:
-
4000 hours
Quick Details
-
Speed(RPM):
-
35-5300rpm
-
Continuous Current(A):
-
0.5-10A
-
Efficiency:
-
IE 2
-
Warranty:
-
1Years
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GP
-
Model Number:
-
GP-59WGM150
-
Torque:
-
High Torque, >15Nm
-
Motor type:
-
Gear Motor
-
Material of gear:
-
nylon/brass
-
load speed:
-
300rpm
-
Shaft Material:
-
Carbon steel / Stainless steel
-
Diameter of shaft:
-
6/8/10/12mm
-
Life time:
-
4000 hours

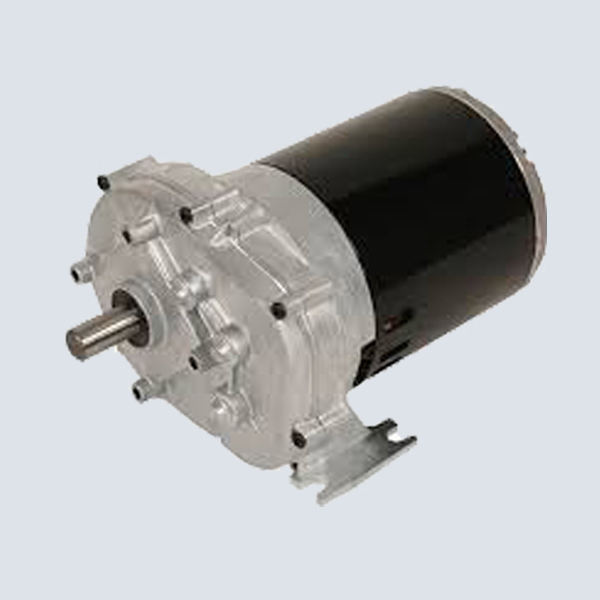

Mini 12V Brushed Dc Gear Motor 24V Gear Motor Dc Worm Geared Motor With Gearbox
| Diameter | Motor & Gearbox 12/28/36/42/60/90/115 to 160mm (Customized) |
| Voltage |
DC Input 3v,6v,9v,12v,24v,36v,48v,60v (Customized) AC Input 110v,220v,230v,380v (Customized) |
| Power | 12/25/50/75/100/125/200/250/300 to 800w (Customized) |
| Speed | Variable speed (Customized) |
| Torque | 0.3/3/5/20/25/30 to 50N.m (Customized) |
| Shaft | Bare /D-Cut /Double D-Cut /Pin Hole /Keyway shaft (Customized) |
| Bearing At Output | Ball bearing |
| IP Class | IP55 / IP65 / IP68 (Customized) |
| Accessories | Gearbox, Encoder, Brake, Cool Fan, etc (Optional) |
| Note | Ratios and shaft configuration can be designed |
|
Product Name |
Brushless Worm Geared Motor |
| Model No. | GP-59WGM150 |
| Voltage | 24V |
| Size of motor | Dia 59mm; Length 80mm |
| Output Power | 30W |
| No Load -Speed | 150 RPM |
| Load Speed | 130RPM |
| Gear Ratio | 1:28 |
| Outline Drawing |
|
|
| Shaft |
|
Customized Motor GP Motor specialize in design, custom and manufacture electric motors, including ECM Motor , PMDC Motor , Brushless Motor , Gear Motor , Servo Motor , AC Motor as well as Motor Parts . All of them can be fully and easily customized (see some of the many customization options listed below). We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now! |
