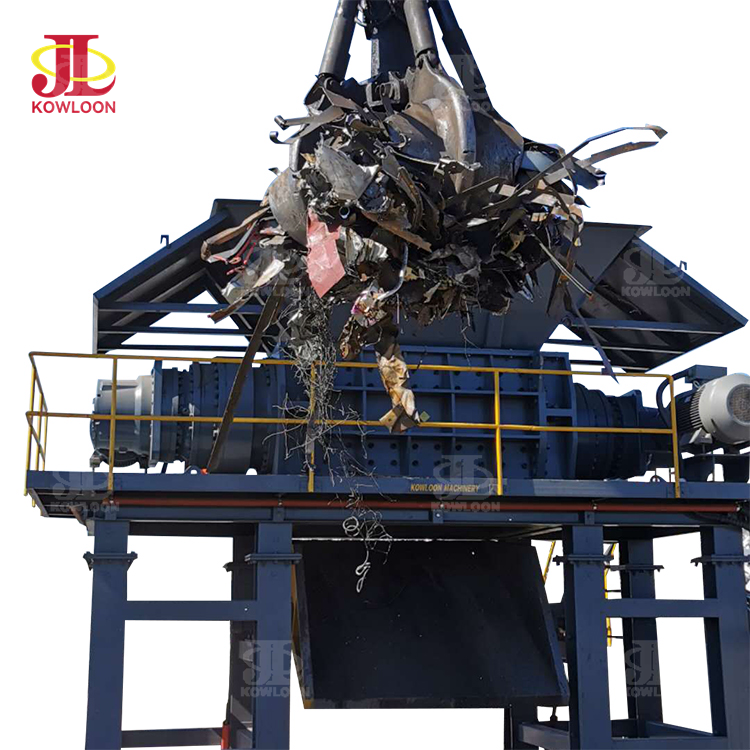

Kowloon industrial shredder is sort of twin shaft shredding machine, widely used for scrap car metal recycling and waste rubber like car and truck tires downsize, also apply to size reduction of IBC tank, metal barrel and other large size materials, which inconvenient for transportation, the shreds after processing can also be used for secondary resources recovery.
- Product Details
- {{item.text}}
Quick Details
-
Power (kW):
-
45
-
Weight (KG):
-
6000
-
Name:
-
heavy duty metal shredder scrap metal shredders crushing machine
-
blade materials:
-
9SiCr
-
blade type:
-
hexagon
-
Shaft:
-
Doule solid type
-
color:
-
gray or as cutomer optional
-
Motor brand:
-
Simens motor
-
Final product:
-
1-10 Cm
-
Speed(RPM):
-
10-20r/min
-
After-sales Service Provided:
-
Video technical support
Quick Details
-
Place of Origin:
-
Henan, China
-
Marketing Type:
-
New Product 2022, New Product 2022
-
Brand Name:
-
kowloon
-
Power (kW):
-
45
-
Weight (KG):
-
6000
-
Name:
-
heavy duty metal shredder scrap metal shredders crushing machine
-
blade materials:
-
9SiCr
-
blade type:
-
hexagon
-
Shaft:
-
Doule solid type
-
color:
-
gray or as cutomer optional
-
Motor brand:
-
Simens motor
-
Final product:
-
1-10 Cm
-
Speed(RPM):
-
10-20r/min
-
After-sales Service Provided:
-
Video technical support
Product Description
Workshop 360° product display
Scrap Metal Recycling Machine
|
Model
|
JLSS1200D
|
JLSS1500D
|
JLSS2000D
|
JLSS2600D
|
|||
|
Motor
|
30kw+30kw
|
30kw+30kw /
55kw+55kw
|
75kw+75kw /
90kw+90kw
|
110kw+110kw /
160kw+160kw
|
|||
|
Gearbox
|
Gearbox: planetary type, gear transmission
|
|
|
|
|||
|
Shaft
|
solid shaft, made of 40Cr, hardened and tempered
|
|
|
|
|||
|
Shredder chamber (inner)
|
1120x1000mm
|
1450x1100mm
|
1920x1250mm
|
2425x1400mm
|
|||
|
Rotor rotary speed
|
6-8rpm
|
6-8rpm
|
4-6rpm
|
4-6rpm
|
|||
|
Blade type
|
Detachable type
|
Detachable type
|
Detachable type
|
Detachable type
|
|||
|
Blade
|
Dia.530mm
|
Dia.530/560mm
|
Dia.720mm
|
Dia.720/900mm
|
|||
|
Lubrication system
|
With automatic oil lubricator for gearboxes
|
|
|
|
|||
|
Dimension
|
3.2x2x1.9m
|
4.9x2.8x2.8m
|
6x3.8x4.8m
|
8.2x4x4.3m
|
|||
|
Weight
|
17000kg
|
22000kg
|
29000kg
|
38000kg
|
|||
Details Show
Features:
1. Low speed, high torque rotor, cutting and shearing working principle suitable for both soft and hard materials;
2. Blades made of special alloy, different shape, thickness and cutting head quantity providing the optimum solution for different materials.
3. Siemens, abb, weg…etc quality motors are available for different customers’ options
4. Schneider, chint, siements…etc electrical components to ensure steady performance and realize machine 24hours running, also plc system is optional to enabling automatic reverse for overload protection and minimizing blades damages;
5. Individual electrical control panel with plc control system ensure the machine work properly and safety;
6. Detachable type cutting head on shredder blades, makes the maintenance and replacement of wearing parts easier and much shorten maintenance time.
7. Low speed, lower noise, workable in workshop and outdoor.
Raw Materials and Finished Products
