Quick Details
-
Table Travel (Y) (mm):
-
550 mm
-
Dimension(L*W*H):
-
2400/2050/2250mm
-
Weight (T):
-
5200 T
-
Table Travel (Z) (mm):
-
550 mm
-
Range of Spindle Speed(r.p.m):
-
1 - 12000 r.p.m
-
Spindle Motor Power(kW):
-
Servo Motor:3/3/3KW
-
Max. Table Load(kg):
-
550 kg
-
Feed Speed(mm/min):
-
1 - 12000 mm/min
-
Rapid Feed Speed(m/min):
-
36/36/36m/min
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
DRC
-
Voltage:
-
220/380V
-
Marketing Type:
-
Hot Product 2021
-
Siemens808D CNC System:
-
VMC855 machining center
-
Machine tool lighting working lamp:
-
BT40 belt spindle
-
Spindles clean the air:
-
Centralized automatic feed lubrication system
-
Chip liquid system:
-
Spindle taper: BT40
-
10.4 "display:
-
Tricolor warning light
-
Servo transformer:
-
Separate handwheel
-
Foundation gasket and adjusting bolt:
-
RS232 interface
-
Random technical document:
-
Three ball type linear guide rail
-
Metal Parts Machining Center:
-
Three-axis precision grinding ball screw
-
cnc milling machine:
-
Cheap 3 axis cnc vertical machining center vmc machine price for sale
Quick Details
-
Table Size (mm):
-
1000*550mm
-
Number of Axes:
-
3, 4
-
Table Travel (X) (mm):
-
800 mm
-
Table Travel (Y) (mm):
-
550 mm
-
Dimension(L*W*H):
-
2400/2050/2250mm
-
Weight (T):
-
5200 T
-
Table Travel (Z) (mm):
-
550 mm
-
Range of Spindle Speed(r.p.m):
-
1 - 12000 r.p.m
-
Spindle Motor Power(kW):
-
Servo Motor:3/3/3KW
-
Max. Table Load(kg):
-
550 kg
-
Feed Speed(mm/min):
-
1 - 12000 mm/min
-
Rapid Feed Speed(m/min):
-
36/36/36m/min
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
DRC
-
Voltage:
-
220/380V
-
Marketing Type:
-
Hot Product 2021
-
Siemens808D CNC System:
-
VMC855 machining center
-
Machine tool lighting working lamp:
-
BT40 belt spindle
-
Spindles clean the air:
-
Centralized automatic feed lubrication system
-
Chip liquid system:
-
Spindle taper: BT40
-
10.4 "display:
-
Tricolor warning light
-
Servo transformer:
-
Separate handwheel
-
Foundation gasket and adjusting bolt:
-
RS232 interface
-
Random technical document:
-
Three ball type linear guide rail
-
Metal Parts Machining Center:
-
Three-axis precision grinding ball screw
-
cnc milling machine:
-
Cheap 3 axis cnc vertical machining center vmc machine price for sale
Product Description

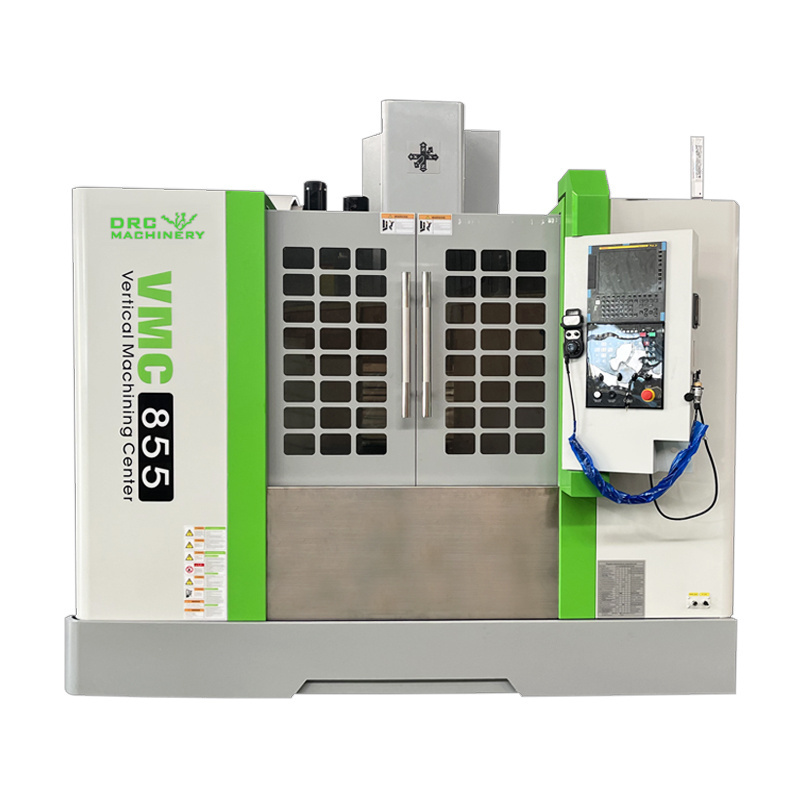

VMC855 Free Upgrade VMC1055 Purchased This Month
4 axis 5 axis metal cnc milling machine for metal
Machine Center
Application:
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
|
Specification
|
Unit
|
VMC855
|
VMC1055
|
|
Processing range
|
|
|
|
|
X axis travel
|
mm
|
800
|
1000
|
|
Yaxis travel
|
mm
|
550
|
550
|
|
Zaxis travel
|
mm
|
550
|
550
|
|
Spindle face to table distance
|
mm
|
120-670
|
120-670
|
|
Distance between spindle center
|
|
|
|
|
and column guide surface
|
mm
|
613
|
613
|
|
Worktable parameters
|
|
|
|
|
Worktable size (X)
|
mm
|
1000
|
1000
|
|
Worktable size (Y)
|
mm
|
550
|
550
|
|
Maximum load bearing of worktable
|
kg
|
550
|
550
|
|
Spindle parameters
|
|
|
|
|
Spindle speed
|
rpm
|
10000/12000
|
10000/12000
|
|
Feeding parameters
|
|
|
|
|
X/Y/Z axis rapid movement rate
|
m/min
|
36/36/36
|
36/36/36
|
|
Feed moving velocity X,Y,Z
|
mm/min
|
1-10000
|
1-10000
|
|
Servo motor specification
|
kw
|
3*3*3
|
3*3*3
|
|
ATC paremeters
|
|
|
|
|
ATC capacity
|
pcs
|
Knife wall type 24
|
Knife wall type 24
|
|
Machine size
|
|
|
|
|
Length of machine
|
mm
|
2400
|
2400
|
|
Width of machine
|
mm
|
2050
|
2050
|
|
Height of machine
|
mm
|
2250
|
2250
|
|
Weight of machine
|
kg
|
5200
|
5500
|
