CBC Machine Best Price Medical Laboratory Equipment 3 Part Hematology Analyzer
CBC Machine Best Price Medical Laboratory Equipment 3 Part Hematology Analyzer
CBC Machine Best Price Medical Laboratory Equipment 3 Part Hematology Analyzer
CBC Machine Best Price Medical Laboratory Equipment 3 Part Hematology Analyzer
CBC Machine Best Price Medical Laboratory Equipment 3 Part Hematology Analyzer
CBC Machine Best Price Medical Laboratory Equipment 3 Part Hematology Analyzer
CBC Machine Best Price Medical Laboratory Equipment 3 Part Hematology Analyzer
CBC Machine Best Price Medical Laboratory Equipment 3 Part Hematology Analyzer

CBC Machine Best Price Medical Laboratory Equipment 3 Part Hematology Analyzer

FOB Reference Price: Get Latest Price
≥1 Sets
US $1999
≥5 Sets
US $1998
≥10 Sets
US $1997
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
MCL-HA01
Place of Origin:
Guangdong, China
Medical Equipment:
3 Part Hematology Analyzer for Lab
Clinical function:
3-part differential, 23 parameters
Throughput:
60T/H
Touchscreen:
8.4 inches TFT touchscreen
Channel:
Dual-channel
Dimension:
330mm X 420mm X 400mm
Weight:
15kg
Data storage:
>30000results of sample,including 3 histograms
Printing:
Built-in thermal printer
Data interface:
2 USB, 1 RS-232, 1 printer interface

Quick Details

Warranty:
1 Year
After-sale Service:
Online technical support
Brand Name:
MECAN
Model Number:
MCL-HA01
Place of Origin:
Guangdong, China
Medical Equipment:
3 Part Hematology Analyzer for Lab
Clinical function:
3-part differential, 23 parameters
Throughput:
60T/H
Touchscreen:
8.4 inches TFT touchscreen
Channel:
Dual-channel
Dimension:
330mm X 420mm X 400mm
Weight:
15kg
Data storage:
>30000results of sample,including 3 histograms
Printing:
Built-in thermal printer
Data interface:
2 USB, 1 RS-232, 1 printer interface

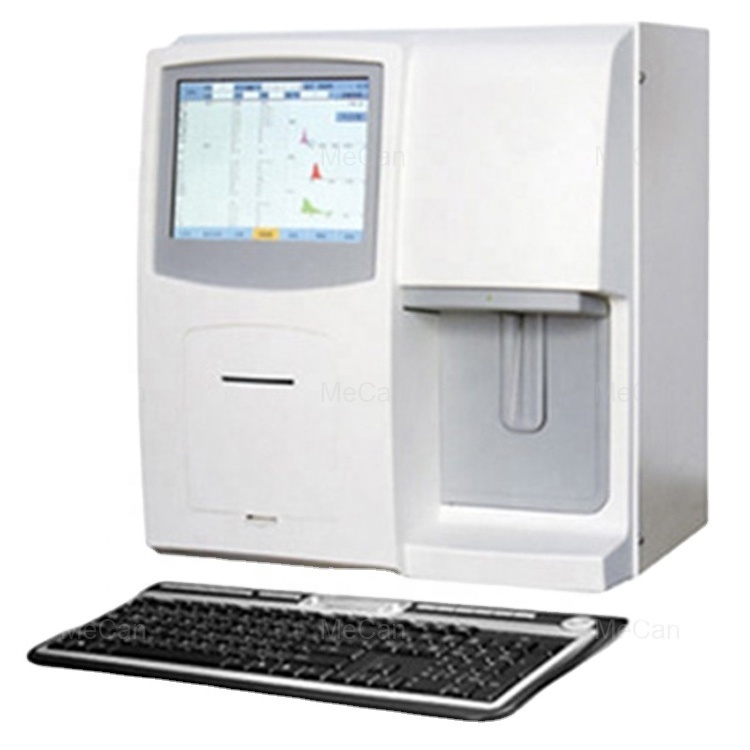

Best Price Medical Laboratory Equipment 3 Part Hematology Analyzer

Model: MCL-3800

Product Description

What is the features of our 3 part hematology analyzer?

1. 3-part white blood cell differential.

2. Dual-channel, 60 T/H.

3. 8.4 inches TFT touchscreen.

4. Fully digitized process of signals from blood cell, mature design of fluid path to ensure the reliability of measurement.
5. Advanced floating threshold combined with perfect abnormal blood sample expert recognition system.
6. Independent hemoglobin detecting system, unique volume metering pipe direct quantify technology; the interference source can be eliminated and precision can be increased.
7. Particle wizard technology: cells’straight-line motion produce pulse to ensure the accuracy of WBC,RBC,PLT counting.
8. Bi-directional stereoscopic rotational flow technology: avoiding fluid interfering PLT counting.
9. Brand-new highly accurate trace blood treating technology.
10. Impedance technology, Cyanide methemoglobin method and non-cyanide SFT method.

What is the advantage of our auto hematology analyzer?

1.Three classifications 23 items, include 3 histograms (RBC WBC PLT), the test range is more wider, and the results more intuitive.

2.One touch operation, detection is more convenient and quick. Automatic suction sampling, a key to the end.

3.Automatic blocking removal function, which overcome the problem of three classified blood cells easy blocking. (.High-pressure blocking removal, high-temperature burning, positive stamping and recoil and other methods solve the problem of blocking).

4.Five Chinese print report, including normal range, the testing is more intuitive. Built-in standard format, external standard format, external format without picture, built-in format without picture, built-in simplified format.

5.8.4 inch 600*800 lattice, TFT color touch LCD screen or 32 size paper (half of A4 paper); The size of the instrument just like a small drinking fountain.

6.built-in thermal printer, LQ-300K+2 printer can be connected.

7.20μl of peripheral blood was automatically pre-diluted by the host; 9.7ml venous blood just need tap the "count" key that is absorbed and analyzed.

8.The host automatically stores all parameters (including histograms) for more than 30,000 samples; can direct inserted U disk and unlimited expansion and can preservation for a long-term.

9.Perfect modular design.

10.The national recommended brand.

Click here for Price Inquiry !!!

What is the technical data of our hematology analyzer?

Clinical Function WBC, 23 Items
Test Speed 60 test/h
Principle of operation RBC WBC dual channel cell technology, electrical impedance method, HGB colorimetry
Analysis precision RBC≤2% HGB≤2% WBC≤2% PLT≤4% MCV≤1%
Sample Volume venous blood 9.7μL , Peripheral Blood 20 μL, Anticoagulation peripheral blood 9μL
Large-screen 8.4” TFT Touch Screen
Data Storage >30000, including 3 histograms
Printing built-in thermal printer, LQ-300K+2 printer can be connected
Data interface 2 USB, 1 RS-232, 1 printer interface
Dimensions 400mm×330mm×450mm
Weight 12KG

Click here for Price Inquiry !!!
