Quick Details
-
Weight (KG):
-
500
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Landpack
-
Dimension(L*W*H):
-
(L)1770*(W)600*(H)1230mm
-
Product name:
-
single station preformed pouch packing machine
-
Advantage:
-
OEM
-
Main Function:
-
Weighing Forming Filling Sealing
-
Bag type:
-
3 sides sealing bag, stand up bag
-
Control system:
-
PLC+touch Screen
-
Optional Devices:
-
Data Printer
-
Model:
-
GP-160C
-
Bag Material:
-
Multilayer composite premade bag
-
Bag width:
-
70-150 mm
-
Speed:
-
0-60 bag/min
Quick Details
-
Function:
-
FILLING, Wrapping, Labeling, Sealing
-
Packaging Type:
-
Stand-up Pouch, Bags, Pouch
-
Packaging Material:
-
Plastic, Paper, Metal
-
Weight (KG):
-
500
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Landpack
-
Dimension(L*W*H):
-
(L)1770*(W)600*(H)1230mm
-
Product name:
-
single station preformed pouch packing machine
-
Advantage:
-
OEM
-
Main Function:
-
Weighing Forming Filling Sealing
-
Bag type:
-
3 sides sealing bag, stand up bag
-
Control system:
-
PLC+touch Screen
-
Optional Devices:
-
Data Printer
-
Model:
-
GP-160C
-
Bag Material:
-
Multilayer composite premade bag
-
Bag width:
-
70-150 mm
-
Speed:
-
0-60 bag/min
Mini Nuts Premade Zip Lock Zipper Pouch Doypack Filling Packaging Packing Machine
Recommend Products
Contact us
Features

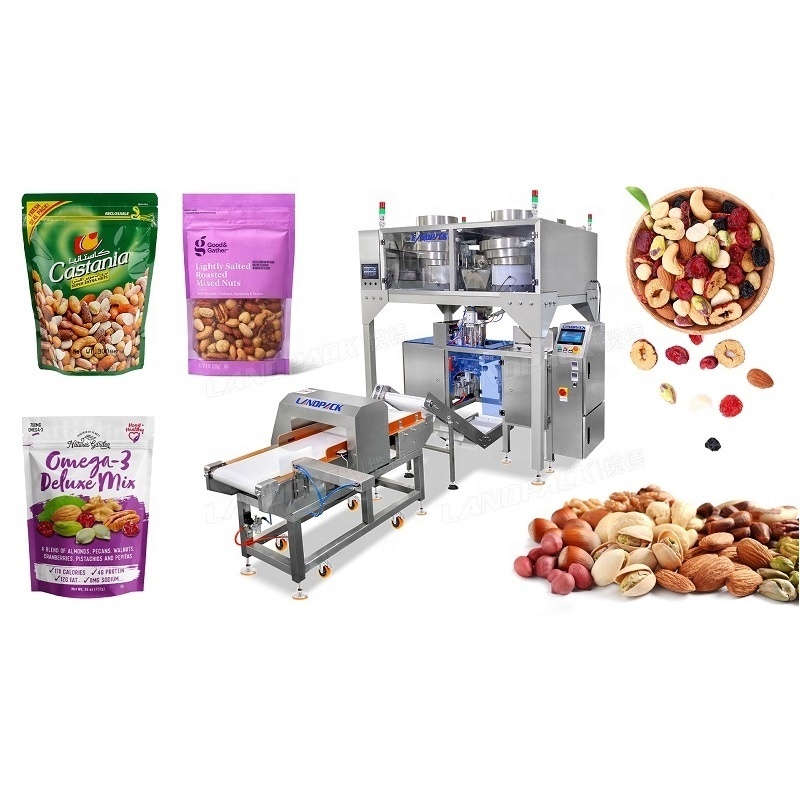

Economical Nuts Mixing Mini Doypack Machine
1.
Vibration Bowl Weighing Machine
With Economical Price.
2.
Mix Four Types Of Nuts
.
3.
With ink jet printer
, printing information can be set on touched screen, more intelligent.
4.
With metal detector
，efficiently select the qualified products.
Work Flow:
1. Vibration bowl weigher seperately measure different product weights.
2. Ink jet printer prints the information.
3. Automatically bag feeding.
4. Automatically zipper&bag opening.
5. Automatically filling.
6. Sealing.
7. Output.
8. Finished product conveyor delivers the finished bag to outside.
9. Metal detector.
Product Paramenters
Specification
|
Model
|
GP-160C
|
|
Bag Material
|
Multilayer Composite Premade Bag (e.g.: PET/PE)
|
|
Bag Type
|
3 Side Seal Bag, Stand-up Bag
|
|
Upgradable Bag Type
|
Gusset Bag, Zipper Bag, Flat Bottom Pouch (Need additional purchase of functional device)
|
|
Size Range
|
70mm≤W≤150mm 70mm≤L≤150mm
|
|
Speed
|
0~60bags/min
|
|
Sealing Type
|
Straight grain, pitch is 1mm (Optional reticulate)
|
|
Sealing Width
|
10mm (5--20mm can be customized)
|
|
Voltage
|
220V, Single-phase, 50/60HZ, 1.2KW
|
|
Air Pressure
|
0.65Mpa
|
|
Air Consumption
|
0.3m³/min (Standard machine, no additional function)
|
|
Body Dimension
|
1770*600*1230mm
|
|
Packing Dimension
|
1860*710*1550mm (Export non-fumigation wooden case)
|
Basic Configurations:
|
Touch Screen
|
China Kinco 7 inches corlor touch screen
|
|
|
Languages
|
Chinese, English, Spanish, Dutch, Italian, Korean (At most three languages);
|
|
|
PLC
|
Japan Panasonic
|
|
|
Cylinder
|
Taiwai Airtac (Can be upgraded to Japan SMC)
|
|
|
Vacuum Generator
|
China Airbest (Can be upgraded to Vacuum Pump);
|
|
|
Vacuum Component
|
Japan SMC;
|
|
|
Modular Control System For Vacuum Pressure
|
Japan SMC;
|
|
|
Modular Control System For Temperature:
|
China YUDIAN;
|
|
|
Electrical Component
|
Schneider / Omron;
|
|
|
The main structure of the machine is SUS304 (The thickness of the rack is 3.0mm), and the material of the part is aluminum;
|
|
|
|
The part (Hopper) in contact with the material is SUS304 (Can be upgraded to SUS316L).
|
|
|
Application
Suitable for conventional granular zipper bags, standing bags, pre-made bags
packing such as nuts, spices, biscuits, beans, oats, candy, coffee beans, chocolate, pet food, potato chips, popcorn, dried fruits, etc.
Nuts doypack packing machine; S
pices
stand up pouch packing machine; B
eans
zipper pouch packing machine etc.
