Quick Details
-
Power:
-
12-100KW
-
Dimension(L*W*H):
-
Capacity Request
-
Weight:
-
1200 KG
-
Warranty of core components:
-
1 year
-
Name:
-
Jacketed Fermenter
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
Stainless Steel 304/316
-
Thickness:
-
Inner 3mm External 2mm
-
Capacity:
-
100-2000L
-
Heating method:
-
Steam, Electric, Gas
-
Brewhouse:
-
2/3/4 Vessels
-
Fermentation:
-
60/75 cone
-
Control system:
-
Touch Screen
-
Function:
-
Making Beer
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
NDL Craft
-
Voltage:
-
220V/380V 50HZ/60HZ
-
Power:
-
12-100KW
-
Dimension(L*W*H):
-
Capacity Request
-
Weight:
-
1200 KG
-
Warranty of core components:
-
1 year
-
Name:
-
Jacketed Fermenter
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
Stainless Steel 304/316
-
Thickness:
-
Inner 3mm External 2mm
-
Capacity:
-
100-2000L
-
Heating method:
-
Steam, Electric, Gas
-
Brewhouse:
-
2/3/4 Vessels
-
Fermentation:
-
60/75 cone
-
Control system:
-
Touch Screen
-
Function:
-
Making Beer

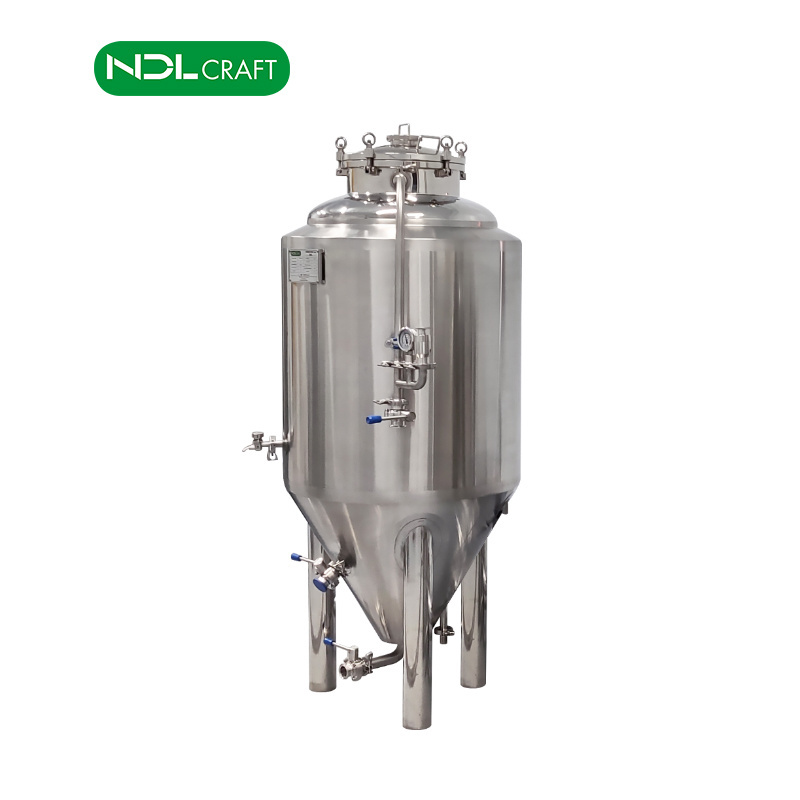

Stainless Steel 300L 500L 1000L Jacketed Conical Fermenter For Beer Brewing Equipment
1. NDL Craft Beer Brewery Main Configurations:
|
Main Parts |
Main Components |
|
1. Milling System |
01.Malt Miller |
|
2. Heating System |
01.Steam Boiler(Optional) 02.Burner(Optional) 03.Electric Heating (Optional) |
|
3. Saccharification System |
01.Mash Tun/Lauter Tank & Brew Kettle/Whirlpool Tank(2 vessel) 02. Mash Mixer & Lauter Tank & Brew Kettle/Whirlpool Tank(3 vessels) 03. Mash Tun/Lauter Tank & Brew Kettle &Whirlpool Tank(3 vessels) 04. Mash Mixer & Lauter Tank & Brew Kettle &Whirlpool Tank(4 vessels) |
|
4. Fermentation System |
01.Fermentation Tank(Unitank optional) 02.Bright Tank |
|
5. Cooling System |
01.Glycol Tank 02.Glycol Unit |
|
6. Cleaning System |
01.Disinfection Tank 02.Alkali Tank |
|
7. Control System |
01.PID 02.PLC(Siemens) |
|
8. Packing system |
01.Bottling 02.Canning 03.Kegging |
2. Fermentation System
NDL Craft professional fermenters are made from stainless steel as it is easy to clean and can be reused almost indefinitely. They all have a valve at the very bottom of the cone which can be used to remove sediment, and also drain the finished beer for bottling or kegging when done. Most also have a second port higher on the cone which can be used to draw samples of beer for measurement or tasting.
|
Fermentation tank series |
Volume in US Gallon |
Diameter |
Height |
|
|
26US Gallon |
640mm |
1500mm |
|
|
53US Gallon |
760mm |
1800mm |
|
|
79US Gallon |
860mm |
2000mm |
|
|
132US Gallon |
960mm |
2350mm |
|
|
264US Gallon |
1260mm |
2650mm |
|
|
528US Gallon |
1560mm |
3150mm |
|
|
793US Gallon |
1800mm |
3550mm |
|
|
2642US Gallon |
2200mm |
6100mm |
|
|
5283US Gallon |
2200mm |
10200mm |
3. Saccharification System
Whether you want to save space, money, and time by only using a 2 vessel mash and boil a kettle or you need a dedicated HLT tank alongside them, we have a solution for you.
Our stainless steel vessel brewing systems are insulated using chloride-free, 100mm Rockwell insulation, keeping temperatures at exactly the level you need them to be.
They also allow you to produce batches at record speeds, from the beginning to the cleanup process. Maximize your brewhouse’s efficiency with our systems!
4. NDL Craft Grouped Equipment
NDL Craft offers all necessary peripheral equipment to ensure that your beer brewery equipment / Brewpub has everything it needs for a high-quality brew and the means to give your clients the best drinking experience.
