TRVV black ul approved insulated wires 3*2.5 square meters 6mm two core electric wires manufacture

TRVV black ul approved insulated wires 3*2.5 square meters 6mm two core electric wires manufacture

FOB Reference Price: Get Latest Price

≥100 Meters

US $0.21

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Insulation Material:: PVC

Place of Origin:: Guangdong, China

Brand Name:: Minzan

Model Number:: TRVV

Product name:: TRVV High Flexible mechanical arm electric wire Cable

Insulation & Jack:: PVC

Rated voltage:: 300/500V

Specification:: 2 3 4 cores

Conductor:: Oxygen-Free Copper

MOQ:: 100Meter

Usage:: Robot ,Drag Chains Modern Machine,Automatic Machine,CNC Machines

Feature 2:: High Flexible 15Million Times Bending

Feature 1:: High Resistance,Oil Resistant,Super soft

Service:: OEM ODM Accept

Quick Details

Application:: Mechanical arm, tank chain, robot, automatic equipment

Conductor Material:: Copper

Conductor Type:: Stranded

Insulation Material:: PVC

Place of Origin:: Guangdong, China

Brand Name:: Minzan

Model Number:: TRVV

Product name:: TRVV High Flexible mechanical arm electric wire Cable

Insulation & Jack:: PVC

Rated voltage:: 300/500V

Specification:: 2 3 4 cores

Conductor:: Oxygen-Free Copper

MOQ:: 100Meter

Usage:: Robot ,Drag Chains Modern Machine,Automatic Machine,CNC Machines

Feature 2:: High Flexible 15Million Times Bending

Feature 1:: High Resistance,Oil Resistant,Super soft

Service:: OEM ODM Accept

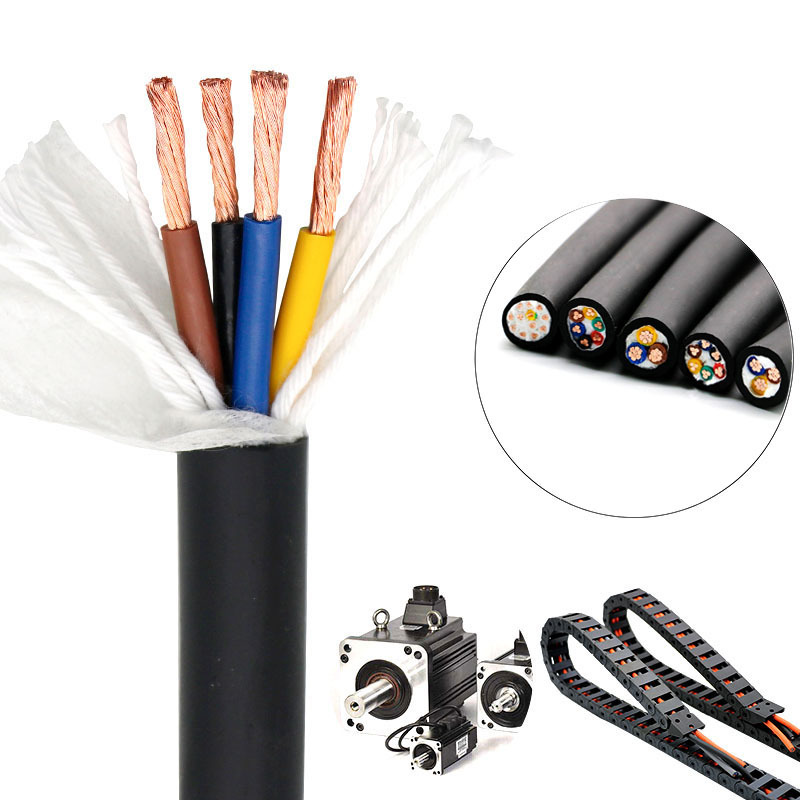

TRVV Black Flexible Cable

Product standard: GB/5023.5-2008 Insulation: special polyvinyl chloride Jacket: special polyvinyl chloride Rated voltage: 300/300V ; 300/500V Test voltage： 2000V

Insulation Resistance: Minimum 20MOhm×km Feature: flexible, Cold high temperature , abrasion , oil resistance.

Bending times： 15 million beding times Working Condiction: 1. Temperature requirements: -20℃-90℃ for mobile installation, -30℃-100℃ for fixed installation 2. Minimum bending radiu s: mobile installation allows bending readius not less than 6 times the cable diameter, fixed installation allows bending radius not less than 4 times the cable diameter

Application: robot arm, machanical arm,automatic equipment, tank chain, high speed motion scene

Product Description

Specification

Cross Sectional Area(mm²)	Cable diameter (mm)	Conductor specification	*Ma.cond. resistance (Ω/KM,20°C)**	100m/KG
2x0.15mm²	4.4±0.2	24/0.09	98.5	2.20
2X0.2mm²	5±0.2	31/0.09	92.3	2.39
2X0.3mm²	5.4±0.2	46/0.09	69.2	3.00
2x0.5mm²	5.8±0.2	78/0.09	39	4.10
2X0.75mm²	6.8±0.2	117/0.09	26	5.60
2X1.0mm²	7.4±0.2	156/0.09	19.5	6.90
2X1.5mm²	8.2±0.2	235/0.09	13.3	7.60
2X2.5mm²	9.8±0.2	392/0.09	7.98	14.00
2X6.0mm²	14.5±0.2	950/0.09	3.65	30.35
3X0.15mm²	4.7±0.2	24/0.09	98.5	2.80
3X0.2mm²	5.2±0.2	31/0.09	92.3	2.69
3X0.3mm²	5.5±0.2	46/0.09	69.2	4.30
3X0.5mm²	6.1±0.2	78/0.09	39	5.00
3X0.75mm²	7.2±0.2	117/0.09	26	6.80
3X1.0mm²	7.8±0.2	156/0.09	19.5	8.50
3X1.5mm²	8.6±0.2	235/0.09	13.3	9.80
3X2.5mm²	10.4±0.2	392/0.09	7.98	17.00
3X6.0mm²	14.9±0.2	950/0.09	3.65	48.97
3X10+1X6.0mm²	21±0.2	874/0.12+950/0.09	1.98	76.00
3X10+2X6.0mm²	20.6±0.2	874/0.12+950/0.09	1.98
3X16+1X10mm²	23.6±0.2	1425/0.12+874/0.12	1.65	108.00
4X0.15mm²	5±0.2	24/0.09	98.5	3.00
4X0.2mm²	5.5±0.2	31/0.09	92.3	3.23
4X0.3mm²	6.2±0.2	46/0.09	69.2	4.71
4X0.5mm²	6.7±0.2	78/0.09	39	6.63
4X0.75mm²	7.6±0.2	117/0.09	26	8.20
4X1.0mm²	8.4±0.2	156/0.09	19.5	11.00
4X1.5mm²	9.5±0.2	235/0.09	13.3	13.50
4X2.5mm²	11.4±0.2	392/0.09	7.98	21.00
4X6.0mm²	16.1±0.2	950/0.09	3.65	48.26

QUALITY ASSURANCE

FAQ

1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last. Welcome to visit us. We'll pick you up in DONGGUAN.

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.

3. What’s your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.You'd better order a suitable quantity to avoid the high freight.Sea transportation is the best option.

4. why should you buy from us not from other suppliers?
Specializing in the production of sheathed power cords, towline cables, high-flexible cables, shielded cable series, network cables, multi-core control cables, flat wires, electronic wires, video cables, elevator video cables, etc.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

5. Does your company accept OEM production?

Yes, could print your company name, we even custom the quality card to promote your company.

1. What size wire do I need?

There are two pieces to the wire size question: thickness (gauge) and length. To determine what gauge wire you need, consider the carrying capacity and the amount of current the wire needs to conduct (measured in amperage or amps). Wire gauge is directly related to how many amps you need to run through it. The distance you need the wire to go can also impact the gauge of wire you need. Because no conductor is perfect, the longer the wire, the more voltage you can lose through resistance/heat. You can counteract voltage drop by increasing the wire gauge which will, therefore, increase the amperage capacity. This allows you to pump more amps through to ensure the right amount of electricity is received, even if you lose a little along the way.
