Quick Details
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Chemical Composition:
-
galvanized steel
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
XINCHANG
-
Model Number:
-
ST
-
Product name:
-
Australian Gypsum Board stud and track/light gauge steel structure
-
Shape:
-
C and U-shaped Keel
-
Color:
-
Silver
-
Surface Treatment::
-
Zinc Galvanized
-
Zinc Coating Range:
-
40-200g/㎡
-
Thickness:
-
0.40, 0.45, 0.50, 0.60, 0.70mm
-
Standard:
-
GB11981-2001
-
Specialty:
-
Easy to install
-
Advantage:
-
Durable in use
Quick Details
-
Warranty:
-
3 years
-
After-sale Service:
-
Online technical support, Other
-
Project Solution Capability:
-
graphic design, total solution for projects
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Chemical Composition:
-
galvanized steel
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
XINCHANG
-
Model Number:
-
ST
-
Product name:
-
Australian Gypsum Board stud and track/light gauge steel structure
-
Shape:
-
C and U-shaped Keel
-
Color:
-
Silver
-
Surface Treatment::
-
Zinc Galvanized
-
Zinc Coating Range:
-
40-200g/㎡
-
Thickness:
-
0.40, 0.45, 0.50, 0.60, 0.70mm
-
Standard:
-
GB11981-2001
-
Specialty:
-
Easy to install
-
Advantage:
-
Durable in use
Galvanized metal studs and tracks for wall partition
Specialty : 1.fireproof, waterproof, rustproof, quake proof
2.ceiling suspended
3.light weight ,load-bearing,
4.sound insulation , sound absorption
5.holding temperature
6.dimensional accuracy
|
Commodity |
Spec.(mm) |
Length(m/pc) |
Package (pcs/bundle) |
|
41 STUD |
41X32X0.40 |
3 |
10 |
|
41X32X0.45 |
3 |
10 |
|
|
41X32X0.50 |
3 |
10 |
|
|
40 STUD |
40 X 35 X 0.40 |
3 |
10 |
|
40 X 35 X 0.45 |
3 |
10 |
|
|
40 X 35 X 0.50 |
3 |
10 |
|
|
42 TRACK |
42 X 25 X 0.40 |
3 |
10 |
|
42 X 25 X 0.45 |
3 |
10 |
|
|
42 X 25 X 0.50 |
3 |
10 |
|
|
50 STUD |
50 X 35X0.40 |
3 |
10 |
|
50 X 35X0.45 |
3 |
10 |
|
|
50 X 35X0.50 |
3 |
10 |
|
|
52 TRACK |
52 X 25 X 0.40 |
3 |
10 |
|
52 X 25 X 0.45 |
3 |
10 |
|
|
52 X 25 X 0.50 |
3 |
10 |
|
|
63 STUD |
63X30X0.32 |
3 |
10 |
|
63X30X0.35 |
3 |
10 |
|
|
63X30X0.38 |
3 |
10 |
|
|
63X32X0.40 |
3 |
10 |
|
|
63X32X0.45 |
3 |
10 |
|
|
63X32X0.50 |
3 |
10 |
|
|
63 X 35 X 0.40 |
3 |
10 |
|
|
63 X 35 X 0.45 |
3 |
10 |
|
|
63 X 35 X 0.50 |
3 |
10 |
|
|
64 TRACK |
64X25X0.33 |
3 |
10 |
|
64X25X0.35 |
3 |
10 |
|
|
64X25X0.38 |
3 |
10 |
|
|
64 X 25 X 0.40 |
3 |
10 |
|
|
64 X 25 X 0.45 |
3 |
10 |
|
|
64 X 25 X 0.50 |
3 |
10 |
|
|
70 STUD |
70 X 35 X 0.40 |
3 |
10 |
|
70 X 35 X 0.45 |
3 |
10 |
|
|
70 X 35 X 0.50 |
3 |
10 |
|
|
72 TRACK |
72 X 25 X 0.40 |
3 |
10 |
|
72 X 25 X 0.45 |
3 |
10 |
|
|
72X25X0.50 |
3 |
10 |
|
|
75 STUD |
75X30X0.32 |
3 |
10 |
|
75X30X0.35 |
3 |
10 |
|
|
75X30X0.38 |
3 |
10 |
|
|
75X35X0.40 |
3 |
10 |
|
|
75X35X0.45 |
3 |
10 |
|
|
75X35X0.50 |
3 |
10 |
|
|
75X35X0.60 |
3 |
10 |
|
|
76 TRACK |
76X25X0.32 |
3 |
10 |
|
76X25X0.35 |
3 |
10 |
|
|
76X25X0.38 |
3 |
10 |
|
|
76X25X0.40 |
3 |
10 |
|
|
76X25X0.45 |
3 |
10 |
|
|
76X25X0.50 |
3 |
10 |
|
|
76X25X0.60 |
3 |
10 |
|
|
100 STUD |
100X35X0.50 |
3 |
10 |
|
100 TRACK |
100X25X0.50 |
3 |
10 |

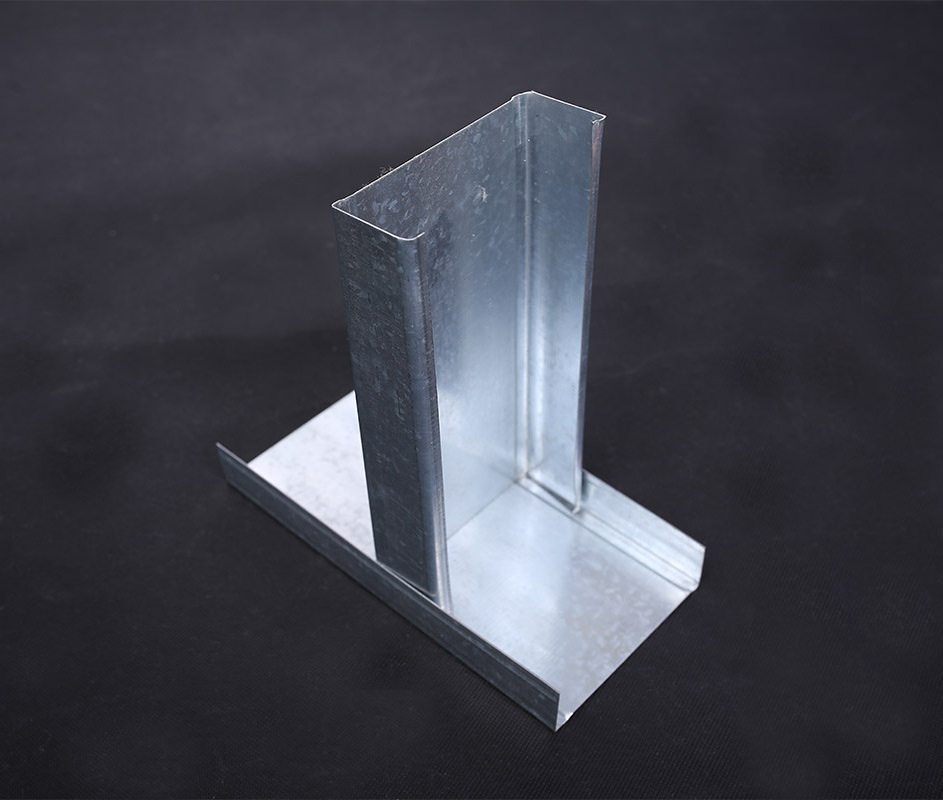

Photo of stud and track
Stud and track drywall system
Workshop
Loading picture
