Quick Details
-
Dimension(L*W*H):
-
L22500*W2500*H4800(mm)
-
Weight:
-
20 KG
-
Model:
-
ZRTBP1300
-
Coating width:
-
1300mm
-
Material:
-
Roll material such as film, Paper, Cloth, Foil, PVC etc.
-
Unwinding dia.:
-
600mm
-
rewinding dia.:
-
600mm
-
Oven temperature:
-
20 ~ 100°C(According to the material)
-
Heat Oven length:
-
21m
-
Coating speed:
-
10 ~ 110 m/min (According to the material)
-
Coating type:
-
anliox coating
-
Heating tyope:
-
Electric heating
Quick Details
-
Voltage:
-
380-450V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BDTECH
-
Dimension(L*W*H):
-
L22500*W2500*H4800(mm)
-
Weight:
-
20 KG
-
Model:
-
ZRTBP1300
-
Coating width:
-
1300mm
-
Material:
-
Roll material such as film, Paper, Cloth, Foil, PVC etc.
-
Unwinding dia.:
-
600mm
-
rewinding dia.:
-
600mm
-
Oven temperature:
-
20 ~ 100°C(According to the material)
-
Heat Oven length:
-
21m
-
Coating speed:
-
10 ~ 110 m/min (According to the material)
-
Coating type:
-
anliox coating
-
Heating tyope:
-
Electric heating
Ruian Toyo
Why Choose Us

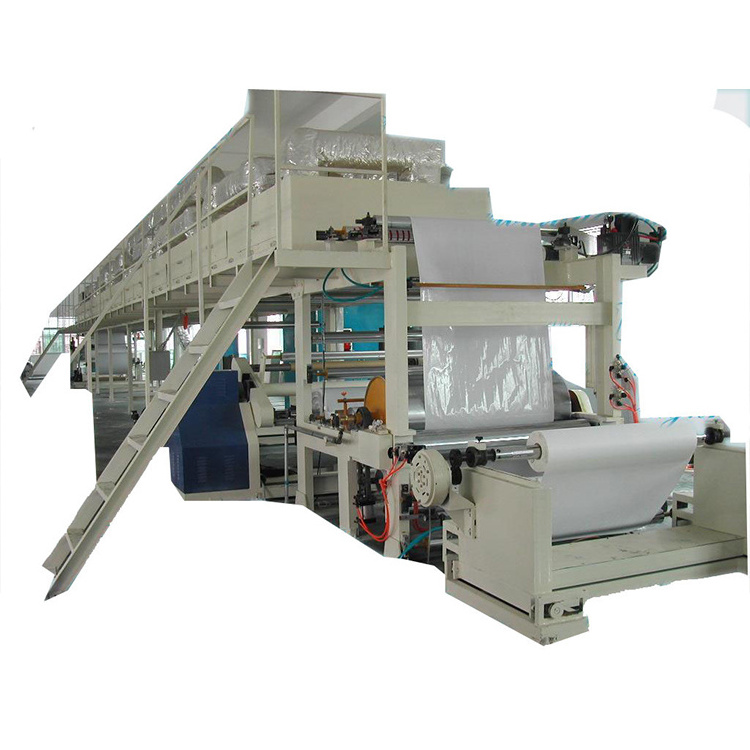

Products Description
|
Model
|
ZRTBP1300
|
|
Coating width
|
1300mm
|
|
Material
|
Roll material such as film, Paper, Cloth, Foil, PVC etc.
|
|
Unwinding dia.
|
Φ600mm
|
|
rewinding dia.
|
Φ600mm
|
|
Oven temperature
|
20 ~ 100°C(According to the material)
|
|
Heat Oven length
|
21m
|
|
Coating speed
|
10 ~ 110 m/min (According to the material)
|
|
Coating type
|
anliox coating
|
|
Heating tyope
|
Electric heating
|
|
Heat oven section
|
7 segments
|
|
Machine weight
|
20Tons
|
|
Overall dimensions
|
L22500×W2500×H4800（mm）
|
Performance characteristics:
1.This machine adopts frame structure type and length of machine can be determined by the user.
2.AC frequency stepless speed regulation, pre-traction, coating,laminating traction, rewinding, ect. are synchronously controlled.
3.PLC control with man-machine interface can achieve many advantages such as precisenesss, sensitivity, easy-operation, anti-jamming.
4.use anliox roll coating the glue
5.This machine adopts separately constant temperature drying system and various kinds of heating types, automatically controlling temperature in each temperature zone, adjustable cycling in-out air system.
6.Auto counting, auto rising and decreasing speed, auto tape-broken inspection, auto error alarm,pneumatic components auto on-off.
7.Rewinding and unwinding adopt singal working positions turning type
8,two unwinding use airshaft,magnetic powder control
9, most of the parts use imported ,such as inverter use japan YASKAWA,PLC use SIEMENS,electricity part use SCHNIDER,bear use japan NSK,
motor use ABB,EPC use TECHMACH, most of the parts use imported
Delivery time: 90 days after we receive the deposit
Valid time: 2 months
Installation & Commission at the Buyer’s Site
The Seller shall send max.2 engineers to the Buyer’s place for supervision and instruction of Installation & test.the buyer pay for the food,hotel ,round tickets and the transport. And pay for engnieer sallary 80usd/day/person.
