Quick Details
-
Voltage:
-
380v/50hz, 3X380V,50HZ, 3X220V, 50HZ
-
Disc Dia.:
-
As customers request
-
No Load Speed:
-
0.22-0.25m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Long Yao Brand
-
Model Number:
-
LX-E2
-
Warranty:
-
12 months
-
Certification:
-
ce
-
Color:
-
orange/red/white/blue
-
type:
-
spray booths
-
power:
-
34.5kw
-
Free Air Speed:
-
≥0.22(m/s)
-
Noise:
-
<85db(A)
-
guarantee:
-
1 year and lifelong maintenance
-
installation:
-
with installation drawing or video and manual
-
function:
-
spraying and baking for car, truck, wooden door,table
Quick Details
-
Power:
-
9.5kw
-
External Size:
-
7000*5350*3400mm
-
Internal Size:
-
6900*3900*2650mm
-
Voltage:
-
380v/50hz, 3X380V,50HZ, 3X220V, 50HZ
-
Disc Dia.:
-
As customers request
-
No Load Speed:
-
0.22-0.25m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Long Yao Brand
-
Model Number:
-
LX-E2
-
Warranty:
-
12 months
-
Certification:
-
ce
-
Color:
-
orange/red/white/blue
-
type:
-
spray booths
-
power:
-
34.5kw
-
Free Air Speed:
-
≥0.22(m/s)
-
Noise:
-
<85db(A)
-
guarantee:
-
1 year and lifelong maintenance
-
installation:
-
with installation drawing or video and manual
-
function:
-
spraying and baking for car, truck, wooden door,table

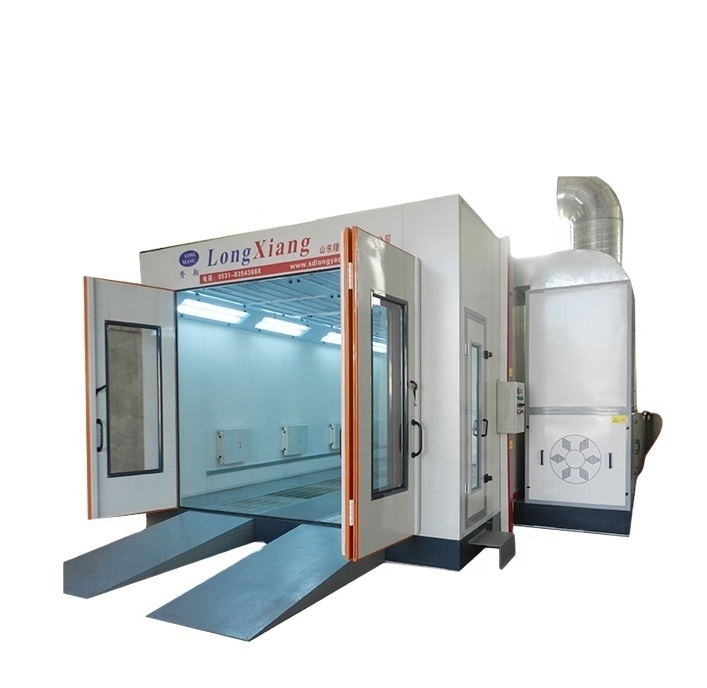

high quality with hot sale lighting for spray booth CE car Spray Booth
1 . Customized Room body Color & Size.
2 . Original Italian RIELLO Burner, Hot wind recycling system with SUS304 heat exchanger.
3. "BELIMO" automatic electric & pneumatic damper.
4 . Unique big area air filtering system & filtering rate reaches 98%.
5 . Big air capacity & low noise centrifugal blower fan adopts Siemens Technology.
6. LED lighting system with high illumination and long using life.
7 . Insulation material wall panels using life up to 20 years.
|
Parameters |
|
|
Outside size |
70 00× 535 0×3 4 00mm(L×W×H) |
|
Inside size |
6900×3900×2650mm(L×W×H) |
|
Entrance door |
3 folds, 3000x2600 mm(W×H), bending steel without covered frame |
|
Emergency door |
650*1800mm(W*H),equipped with handle lock |
|
Main System |
||
|
Cabin system |
Wall panel |
-Sandwich style EPS 50mm,0.376mm thick steel, anti-flame and heat-insulation. -High quality galvanized steel roof panel. |
|
Basement |
-Galvanized steel assemble,300mm high,quadrate steel support,2 rows of grills,3 rows of indented plates. -2 ramps,external setting,620*2000mm(W*L)/pc |
|
|
Ventilation system |
Inlet fan |
1*7.5KW turbo fan, air capacity: 25000m³/h, direct drive,with Siemens technology production |
|
Outlet fan |
1*7.5KW turbo fan, air capacity: 25000m³/h, direct drive,with Siemens technology production |
|
|
Cabinet setting type |
- Intake air from side upper , adopt powder quadrate steel frame , strong and beautiful . - A ir duct* 2m long*1unit , -E lbow :90°*1 unit |
|
|
Airflow speed |
0.4m/s,ventilation rate:320time/h |
|
|
Heating system |
With 10 units high energy shortwave infrared lamps for heating. 3pcs/ unit, each lamp 1LW, total power :30KW . (Option: Baking power regulator) |
|
|
Lighting system |
Ceiling lights |
32pcs*36w Philip tubes with electronic ballast . |
|
Side lights |
Optional |
|
|
Filtering system |
Primary filter |
Grade G2 plate type , filtering rate>83% |
|
Ceiling filter |
EU5 grade high efficient filter,filtering rate>98% |
|
|
Floor filter |
Multi-layer fiberglass filter,filtering rate>70% |
|
|
Control system |
Control panel |
Intelligent control system |
|
Function |
Painting, risen-temperature painting, baking, time setting, lighting, failure indication, thermostatic switch, power switch, emergency stop |
|
|
Voltage/Frequency |
380V,50HZ,3 phase |
|
|
Total power |
46.5 KW |
|
In order to promote dust free , appropriate temperature and wind speed for customers, LONGXIANG spray booth has following advantages:
V entilation of the spray booth
LONGXIANG spray booth has several ventilation systems which provide better painting conditions. All the filter system s and air exhaust systems underneath create a efficient ly vertical air flow ; and this air flow distribute inside of the booth evenly ; then this air flow make overspray remov ing away from the vehicle immediately and completely.
Air
recirculation
on
bak
ing
model
100% of the air
produced by
the fan is
transported
into
LONGXIANG
spray booth during the bak
ing model;
and only 15%-20% is expelled outside
which means
the balance 85%-80% is recovered and filled up with fresh air by means of the changeover damper.
The inner temperature of the LONGXIANG spray booth raises rapid ly; Then the heating system will power off at once when it reaches at bak ing temperature , this will save more energy.
Lighting
The
lighting system
is provided by fou
r*1
6
W
light fixed in the ceiling panels and side walls. They are sealed with 5mm tempered safety glass.
LONGXIANG
spray booth
lighting system
is able to supply enough lighting with lower
energy
consume safely.
Filters
The filtering
system
is
made up by
high-efficiency filters. The
filers
hold
high
er
dust retention capacity and low
er
resistance to the air passage. The long life
designing
reduces frequency of replacement,
which is
contributing to reductions in running costs.
Warranty
Our equipment s except quick-wear-parts are guaranteed for 12 months from the date of receipt, and the filters and lamps are quick-wear-parts .
Why Choose LONGXIANG spray booth?
1. Verified 8 years original factory, covers more than 2 8,000 owned built square meters.
2. Quality first and service high er are the principle for LONGXIANG members. Supporting higher quality equipments is the only purpose for LONGXIANG .
3. We own product showroom in factory and apply 24h- visit ing our factory at any time.
4. Professional engineer and technician team guarantee wonderful product structure, design and layout.
5. With excellent attitude and service, our experienced export team members provide suitable solution for your own standard or customized goods.
6. Powder coa ted parts are widely used with our products such as beams, frames, cabinets and basement etc ; this will help to prolong service life.
7. High quality materials, appropriate facilities , strictly procedure controlling and skilled workers can help to make sure high er quality products.
9. Specially verified by CE, SGS, ISO and other certificates, which help LONGXIANG products to get a higher level.
Certifications
Customers/exhibiton shows
Packing & Shipping
Delivery Details : Usually we will ship you our standard specifications goods about 7-10 days after receiving your payment. It depends on the quantities you order.
Packing Details: Standard exportation packing with polyfoam / wooden box / carton.
