Quick Details
-
Brand Name:
-
APT media converter
-
Use:
-
Ftth Fttx Fttb Network, Fttx, Ftth
-
Warranty Time:
-
3years
-
Product name:
-
Fiber Media Converter
-
Wavelength:
-
1310nm/1550nm
-
Fiber Type:
-
Single Mode
-
Case:
-
Metal Case
-
Connector:
-
RJ-45, 1port fiber
-
Power supply:
-
AC 220V
-
Transmission Distance:
-
2 Km~120km
-
Optical Port Rate:
-
100M ,1000M,10000M
Quick Details
-
Type:
-
Fiber optic media converter
-
Model Number:
-
fiber optic media converter
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
APT media converter
-
Use:
-
Ftth Fttx Fttb Network, Fttx, Ftth
-
Warranty Time:
-
3years
-
Product name:
-
Fiber Media Converter
-
Wavelength:
-
1310nm/1550nm
-
Fiber Type:
-
Single Mode
-
Case:
-
Metal Case
-
Connector:
-
RJ-45, 1port fiber
-
Power supply:
-
AC 220V
-
Transmission Distance:
-
2 Km~120km
-
Optical Port Rate:
-
100M ,1000M,10000M
Specification

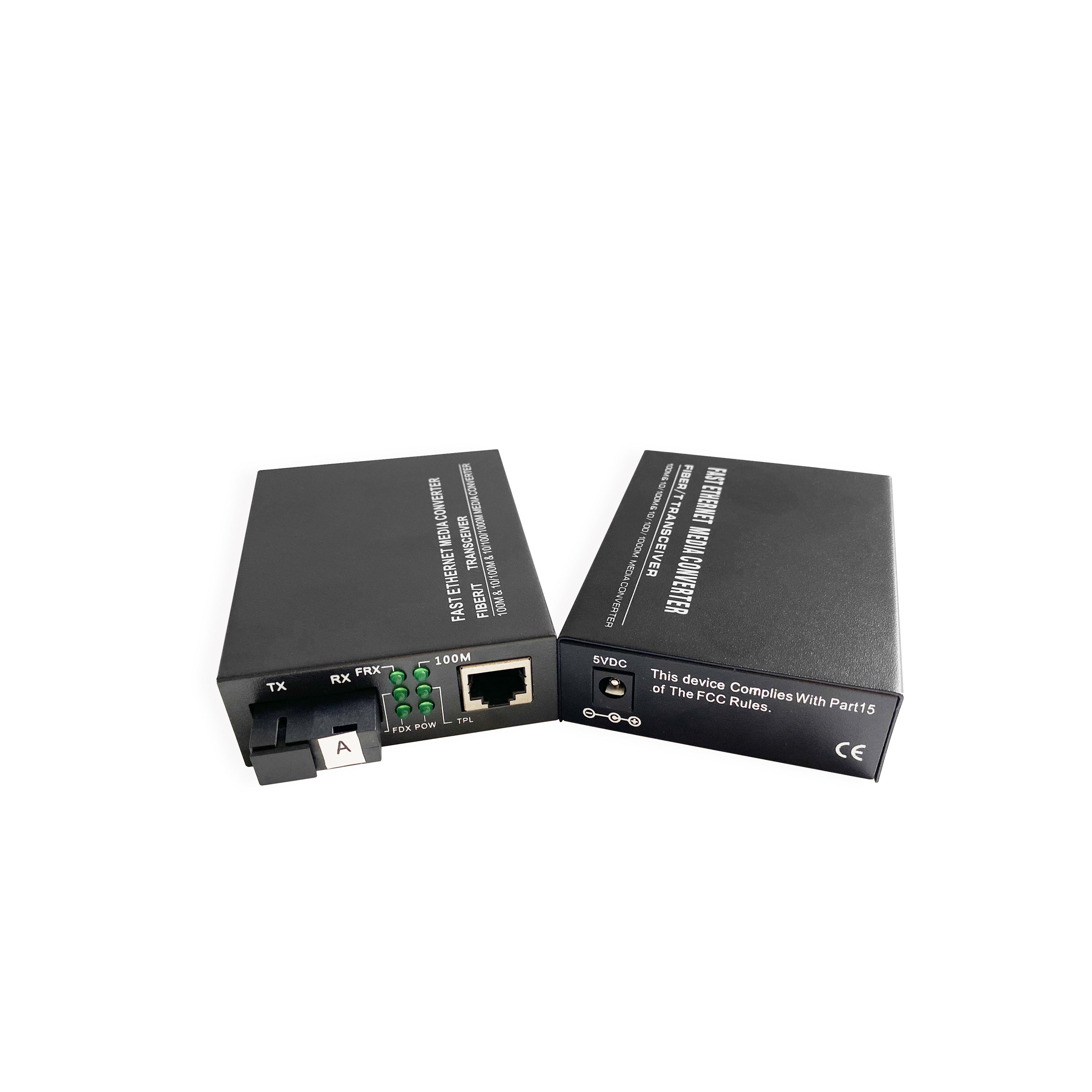

Fiber Optic Media Converter
Fiber Optic Media Converter
10/100/1000M adaptive fast Ethernet optical media converter is a new product used for optical transmission via high-speed Ethernet. It is capable of switching between twisted pair and optical and relaying across 10/100/1000 Base-TX and 1000 Base-Fx network segments, meeting long-distance, high-speed and high-broadband fast Ethernet workgroup users’ needs, achieving high-speed remote interconnection for up to 120km's relay-free computer data network. With steady and reliable performance, design in accordance with Ethernet standard and lightning protection, it is particularly applicable to a wide range of fields requiring a variety of broadband data network and high-reliability data transmission or dedicated IP data transfer network, such as telecommunication, cable television, railway, military, finance and securities, customs, civil aviation, shipping, power, water conservancy and oilfield etc, and is an ideal type of facility to build broadband campus network, cable TV and intelligent broadband FTTB/FTTH networks.
|
Optical Interface
|
Connector
|
Dual Fiber SC port
|
|
|
|
Data Rate
|
1.25Gbps
|
|
|
|
Duplex Mode
|
Full duplex
|
|
|
|
Fiber
|
SM 9/125um
|
|
|
|
Distance
|
850m~120km
|
|
|
|
Wavelength
|
850/1310/1490/1550nm
|
|
|
UTP Interface |
Connector
|
RJ45
|
|
|
|
Data Rate
|
10/100/1000Mbps
|
|
|
|
Duplex Mode
|
Half/full duplex
|
|
|
|
Cable
|
Cat5, Cat6
|
|
|
Power Input |
Adapter Type
|
DC5V 1A
|
|
|
|
Power Built-in Type
|
AC100~240V
|
|
|
Weight
|
Adapter Type
|
0.39kg
|
|
|
|
Power Built-in Type
|
0.67kg
|
|
|
Dimensions
|
Adapter Type
|
94*70.5*26.5cm
|
|
|
|
Power Built-in Type
|
140.5*111*30cm
|
|
|
Power Consumption
|
|
＜3W
|
|
|
Temperature
|
|
0~70℃ Operating; -40~70℃ Storage
|
|
|
Humidity
|
|
5~95% (no condensing)
|
|
|
MTBF
|
|
≥10.0000h
|
|
|
Certification
|
|
CE,FCC,RoHS
|
|
|
Warranty
|
|
3 years warranty
|
|
