Quick Details
-
Supplier Type:
-
Factory
-
Product name:
-

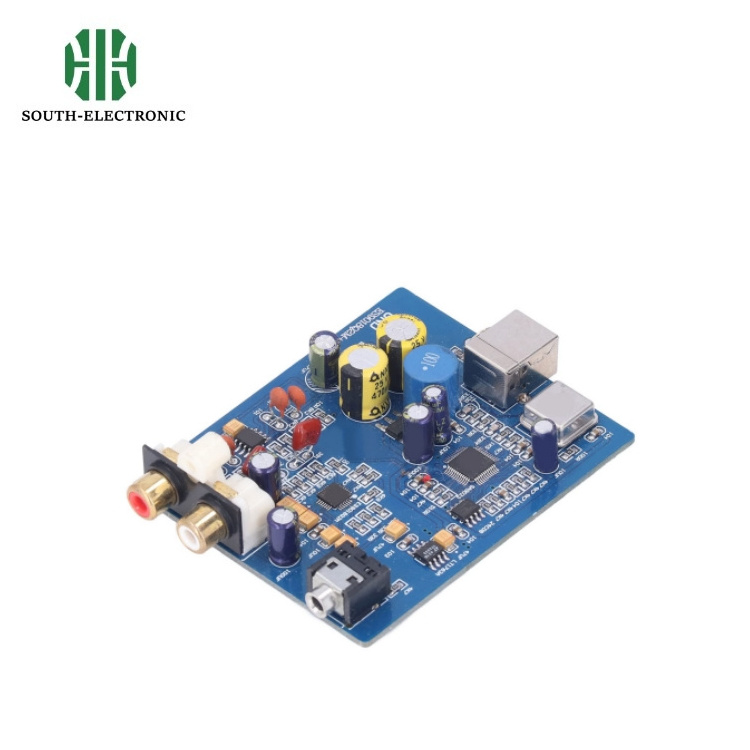

pcba
-
Application:
-
PCB Assembly
-
Service:
-
SMT DIP
-
MOQ:
-
1pcs
-
Solder mask color:
-
Green
-
Packaging:
-
Static bag packing
-
Package:
-
Standard Package
-
Testing Service:
-
Yes
-
Payment ways:
-
Union Moneygram Escrow TT Paypal
-
Delivery time:
-
3-7days
Quick Details
-
Model Number:
-
SE23072616
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
South-Electronic
-
Supplier Type:
-
Factory
-
Product name:
-
pcba
-
Application:
-
PCB Assembly
-
Service:
-
SMT DIP
-
MOQ:
-
1pcs
-
Solder mask color:
-
Green
-
Packaging:
-
Static bag packing
-
Package:
-
Standard Package
-
Testing Service:
-
Yes
-
Payment ways:
-
Union Moneygram Escrow TT Paypal
-
Delivery time:
-
3-7days
Company Introduction
PCB PROGRESS
|
SMT Progress
|
Item
|
Mass Production Capability
|
|
Solde Paste Print
|
Max PCB size can be processed
|
900*600mm²
|
|
|
Max PCB WT can be processed
|
8kg
|
|
|
±25μm
|
|
|
|
System calibration repeatability
|
±10μm
|
|
|
Squeegee pressure detection
|
Pressure closed loop control system
|
|
SPI (Solder Paste Inspection)
|
Min Detectable solder ball pitch
|
100μm
|
|
|
X-Y axis accuracy
|
0.5μm
|
|
|
False positive rate
|
≤0.1%
|
|
Mount
|
Min-Max machinable components
|
0.3*0.15 mm²--200*125 mm²
|
|
|
Max Height of machinable components
|
25.4mm
|
|
|
Max Weight of machinable components
|
100g
|
|
|
BGA/CSP Min ball spacing, ball diameter
|
0.30mm，0.15mm
|
|
|
Mount accuracy
|
±22μm），±0.05
|
|
|
Min-Max PCB size can be processed
|
50*50 mm²—850*560 mm²
|
|
|
Min-Max PCB thickness can be processed
|
0.3mm--6mm
|
|
|
Max PCB WT can be processed
|
6kg
|
|
|
Max types of materials can place up to the line
|
500
|
|
3D X-Ray
|
Gain
|
Geometric magnification 2000; system magnification 12000
|
|
|
Resolution
|
1μm /nm
|
|
|
Rotation angle & tilt angle of view
|
any ±45°+360°Spin
|
|
AXI
|
Min components can be processed
|
1005
|
|
|
Min detectable lead pitch
|
0.4mm（QFP）
|
|
|
Min detectable tin thickness
|
0.0127mm
|
