Quick Details
-
Brand Name:
-
Zotai
-
Model Number:
-
ZT-1605
-
Product name:
-

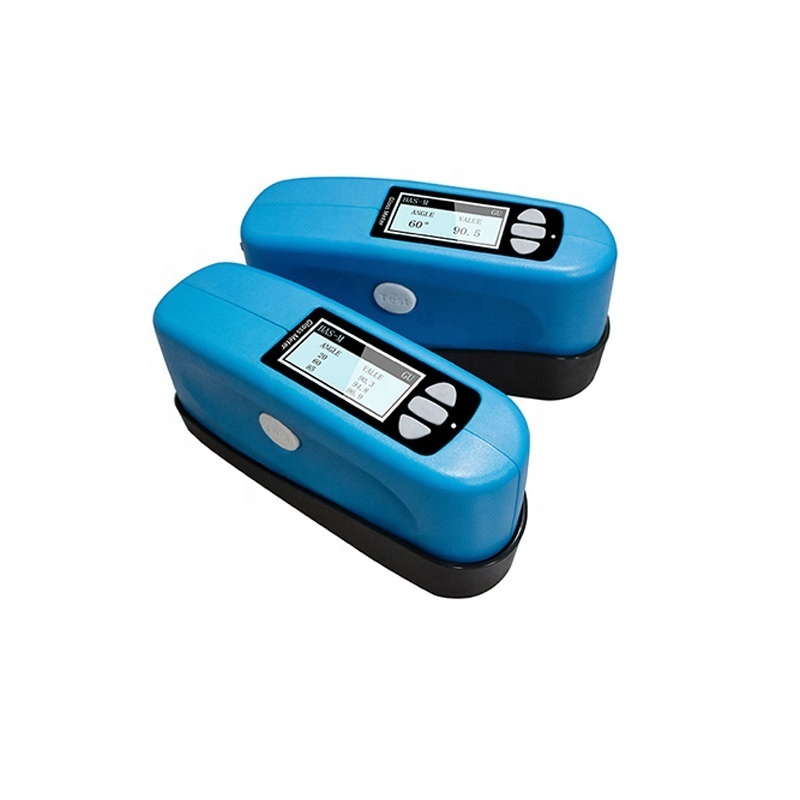

Car Paint Coating Gloss Meter
-
Measurement Range:
-
0-200Gu
-
Projection Angle:
-
60°
-
Measuring Spot:
-
12*40mm
-
Division Value:
-
0.1Gu
-
Repeatability:
-
0.2Gu
-
Reproducibility:
-
0.4Gu
-
Indication Error:
-
1.5Gu
-
International Standard 60°:
-
ISO-2813/ASTM-C584/ASTM-D523/DIN-67530
-
Working Temperature:
-
10℃ - 40℃
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Zotai
-
Model Number:
-
ZT-1605
-
Product name:
-
Car Paint Coating Gloss Meter
-
Measurement Range:
-
0-200Gu
-
Projection Angle:
-
60°
-
Measuring Spot:
-
12*40mm
-
Division Value:
-
0.1Gu
-
Repeatability:
-
0.2Gu
-
Reproducibility:
-
0.4Gu
-
Indication Error:
-
1.5Gu
-
International Standard 60°:
-
ISO-2813/ASTM-C584/ASTM-D523/DIN-67530
-
Working Temperature:
-
10℃ - 40℃
Z T-160 5 Car Paint Coating Gloss Meter
Aperture (caliber) Application:
1) Big apertures like WG60, WG60T, WG60A & WG68 are normally used on flat or wide arc surface samples.
2) While if your sample is cambered or small parts, please don’t worry, WG60G with small aperture (1*3mm) can easily solve your problem.
Gloss meter can be applicable in coatings, printing ink, paint, paint, wood, marble, granite, polishing brick, brick of pottery and porcelain, plastic, paper, metal and non-metallic materials, stoving varnish, vitrified polished tile.
Data sheet:
| Model | ZT60 |
|
Measurement Range |
|
|
Application |
Apply on paint, ink, stoving varnish, coating, wood products; Marble, granite, vitrified polished tile, pottery brick and porcelain; Plastic, printing, paper; Other metallic material. |
|
Projection Angle |
|
|
Measuring Spot |
12*40mm |
|
Measuring Mode |
Automatic/ manual /single / average and combination angle |
|
Standard Sample Setting |
Manually setting/bring out stored data for setting/manually setting tolerance |
|
Data Storage |
100 groups |
|
set standard sample in any stored data, user-define the tolerance range |
|
|
Language |
Chinese/English |
|
Output |
|
|
Division Value |
0.1Gu |
|
Repeatability |
0.2Gu |
|
Reproducibility |
0 .4Gu |
|
Indication Error |
1. 5 Gu |
|
International Standard 60° |
ISO-2813 / ASTM-C584 / ASTM-D523 / DIN-67530 / ASTM-D2457 /J ND-A60 / JND-P60 /ISO7668 |
|
National Standard 60° |
GB 9754 / GB 9966 / GB 8807 - GB/T 9754 , GB/T 13891 , GB/T 7706 , GB/T 8807 |
|
Worki ng Temperature |
10℃ - 40℃ |
|
Storage Temperature |
-10℃ - 70℃ |
|
Humidity Range |
Relative humidity less than 85%, without condensation |
|
Volume |
122*34*60mm |
|
Weight |
310g |
|
Standard Accessories |
Power adapter / User manual Warranty c ard standard board |
1. Zotai Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide operation video for machines .
2. Onsite Service:
A. Device installation;
B. Equipment Operation Test Technology training;
C. Equipment Calibration;
D. Daily maintenance and maintenance of equipment
3. Free technical training for visiting factories
4. 24-hour Online contact
5. Free software upgrades
6. Free information:
A.Product Instruction;
B.Product operation instruction/video;
C.Experiment Test (test application, test report)
7. Device Problem Handling:
A. Social media 24 hours online communication;
B. Mail Seamless Docking;
C. Video Conferencing;
D. Artificial free door-to-door service
