Quick Details
-
Brand Name:
-
GXCOM
-
Model Number:
-
TS8200-8P-2FM
-
Place of Origin:
-
Guangdong, China
-
PoE Ports:
-
1-8 Port Support PoE
-
Manufacturer:
-
GXCOM Technology
-
Product Name:
-
Managed poe switch
-
Device Type:
-
Switch - 8 Ports - Managed
-
Applications:
-
CCTV Security System
-
Uplink Ports:
-
2*1.25G SFP Uplink Ports
-
PoE Standard:
-
IEEE802.3af /IEEE802.3at
-
Warranty:
-
1 Year
-
Power:
-
150W built-in power
-
Keywords:
-
managed PoE switch
-
Certification:
-
CE FCC RoHS
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
20Gbps
-
Brand Name:
-
GXCOM
-
Model Number:
-
TS8200-8P-2FM
-
Place of Origin:
-
Guangdong, China
-
PoE Ports:
-
1-8 Port Support PoE
-
Manufacturer:
-
GXCOM Technology
-
Product Name:
-
Managed poe switch
-
Device Type:
-
Switch - 8 Ports - Managed
-
Applications:
-
CCTV Security System
-
Uplink Ports:
-
2*1.25G SFP Uplink Ports
-
PoE Standard:
-
IEEE802.3af /IEEE802.3at
-
Warranty:
-
1 Year
-
Power:
-
150W built-in power
-
Keywords:
-
managed PoE switch
-
Certification:
-
CE FCC RoHS

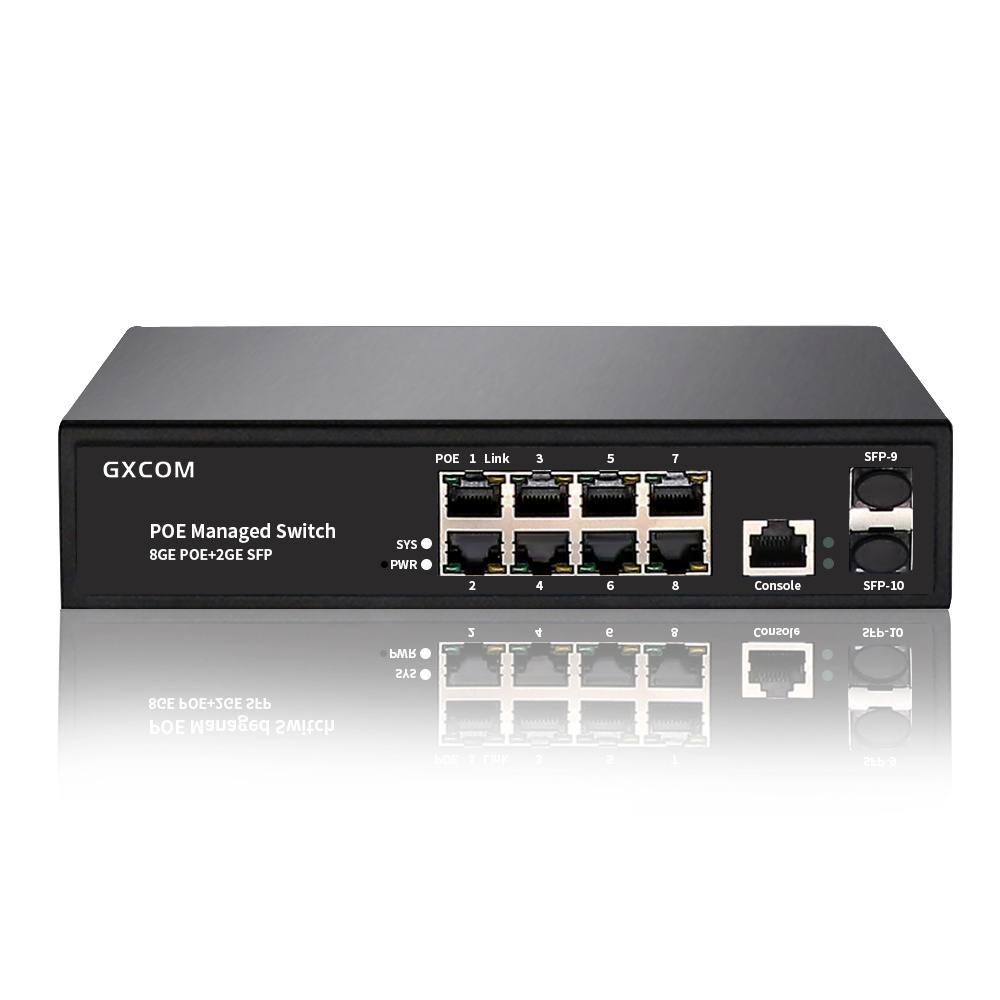

2 Layer manageable Ethernet PoE switch 48V 8 port Gigabit 802.3af/at 150W smart managed PoE+ network switch
Introduction:
Specification :
|
HARDWARE FEATURES
|
|
|
Standards and Protocols
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
|
Interface
|
8*10/100/1000Mbps RJ45 Ports
2*1Gb fiber SFP
1*Console
1*Reset
|
|
Network Media
|
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
|
Fan Quantity
|
Fan Quantity
|
|
Power Supply
|
Built-in power supply DC 52V/3A
|
|
(Power over Ethernet)
|
Standard: 802.3af/at compliant
PoE Ports: Port 1- 8
Max. 30w per port
PoE Power Budget: 120W/150W/180W
|
|
PoE Ports (RJ45)
|
225*135*35MM
|
|
Dimensions ( W x D x H )
|
1.5Kg
|
|
Switching Capacity
Packet Forwarding Rate
|
20Gbps
11.9Mpps |
|
MAC Address Table
|
4K
|
|
Packet Buffer Memory
|
1.5Mb
|
|
Jumbo Frame
|
15KB
|
