Quick Details
-
Production Capacity:
-
3~5m2/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YG
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
720*650*1050mm
-
Weight:
-
170 kg
-
Product name:
-
Diamond Wire Saw Machine
-
Application:
-
Stone Marble Granite Quartz Sandstone
-
Name:
-
Hydraulic Diamond Wire Saw Machine
-
Color:
-
Customer's Request
-
Feature:
-
High Cutting Efficiency
-
Control system:
-
Electrical System
-
Cutting materials:
-
Stone Marble Granite Tile
-
Advantage:
-
Environmental Friendly
-
Keyword:
-
Dimond Wire Saw
Quick Details
-
Type:
-
Stone Cutting Machine
-
Power:
-
25KW, 25kw
-
Cutting thickness (max):
-
600mm
-
Production Capacity:
-
3~5m2/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YG
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
720*650*1050mm
-
Weight:
-
170 kg
-
Product name:
-
Diamond Wire Saw Machine
-
Application:
-
Stone Marble Granite Quartz Sandstone
-
Name:
-
Hydraulic Diamond Wire Saw Machine
-
Color:
-
Customer's Request
-
Feature:
-
High Cutting Efficiency
-
Control system:
-
Electrical System
-
Cutting materials:
-
Stone Marble Granite Tile
-
Advantage:
-
Environmental Friendly
-
Keyword:
-
Dimond Wire Saw

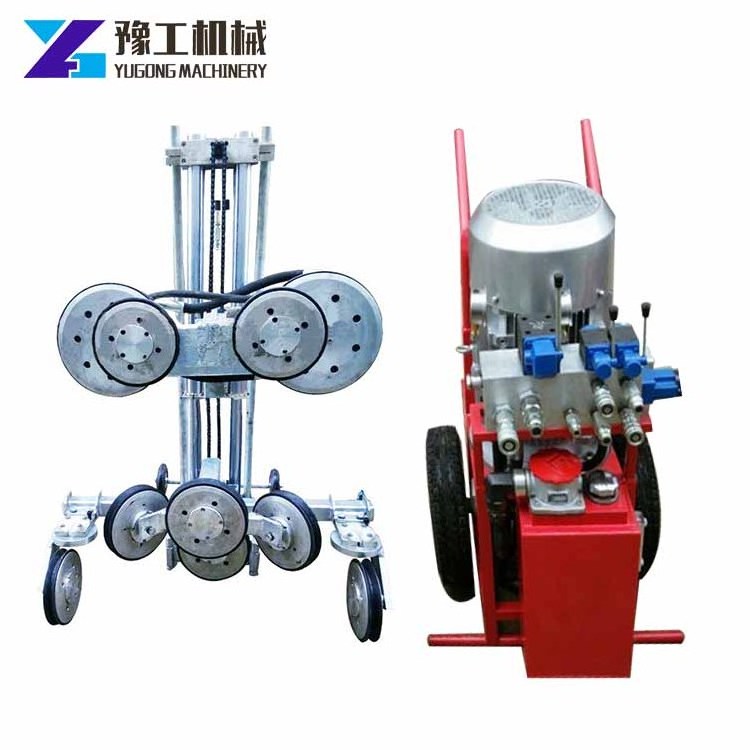

Granite wire saw machine diamond wire saw machine for stone
Diamond wire saw machine is used to cut concrete and rock walls and beams in construction of bridges, roads and tunnels. It is necessary for cutting and removing reinforced concrete such as bridge sections, jetties, columns, beams and mining rocks.
Technical Parameters :
|
Hydraulic Pump |
YG-25 |
Motor Power |
25kw |
|
Voltage |
220V/380V, 50Hz |
Motor Type |
HM-80, 2 Cylinders |
|
Rotation |
1300r/min |
Working Pressure |
15-20Mpa |
|
Weight |
170kg |
Size |
720*650*1050mm |
|
Frame & Wheels |
Aluminum |
Wheels |
10 |
|
Weight |
75kg |
Size |
90*90*1700mm |
|
Diamond Wire Saw |
Diamond Wire |
Specification |
φ11.5mm 40beads/m |
|
Cutting speed |
3~5m 2 /h |
Wire life |
2~3m 2 /m |
Product Features :
1.It's made of hard materials. The wedges are running stability. Long surviving life of our Diamond Wire Saw Machine.
2.Powerful cutting ability, it can split the stone or concrete easily with no cutting depth limitation.
3.High Efficiency, and it's easy and comfortable to operate and maintain.
Construction Site :
1. Packaging:
1)Wrapped by protective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping:
By logistics; by automobile; by train; by shipping; by air etc.
