Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JINGDIANRUIHUA
-
Model Number:
-
DFR-600/700/800/900
-
Voltage:
-
380V/220V 50HZ
-
Dimension(L*W*H):
-
2600*1020*1700mm
-
Weight:
-
900 KG
-
Kind:
-
Thick Plastic Bag Making Machine
-
Bag Making Speed:
-
150pcs/min
-
Control Motor:
-
inverter motor
-
Bag Making Width:
-
max. 700mm
-
Bag Making Length:
-
max. 1000mm
-
Photocell for Tracking:
-
Yes
-
Sealing Knife:
-
hot sealing
-
Cutting Knife:
-
hot cutting
-
Function:
-
for plastic T-shirt bag making
-
Feeding Material:
-
plastic film rolls
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
Shopping Bag
-
Material:
-
Plastic
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JINGDIANRUIHUA
-
Model Number:
-
DFR-600/700/800/900
-
Voltage:
-
380V/220V 50HZ
-
Dimension(L*W*H):
-
2600*1020*1700mm
-
Weight:
-
900 KG
-
Kind:
-
Thick Plastic Bag Making Machine
-
Bag Making Speed:
-
150pcs/min
-
Control Motor:
-
inverter motor
-
Bag Making Width:
-
max. 700mm
-
Bag Making Length:
-
max. 1000mm
-
Photocell for Tracking:
-
Yes
-
Sealing Knife:
-
hot sealing
-
Cutting Knife:
-
hot cutting
-
Function:
-
for plastic T-shirt bag making
-
Feeding Material:
-
plastic film rolls
Machine Details
Detailed product description:

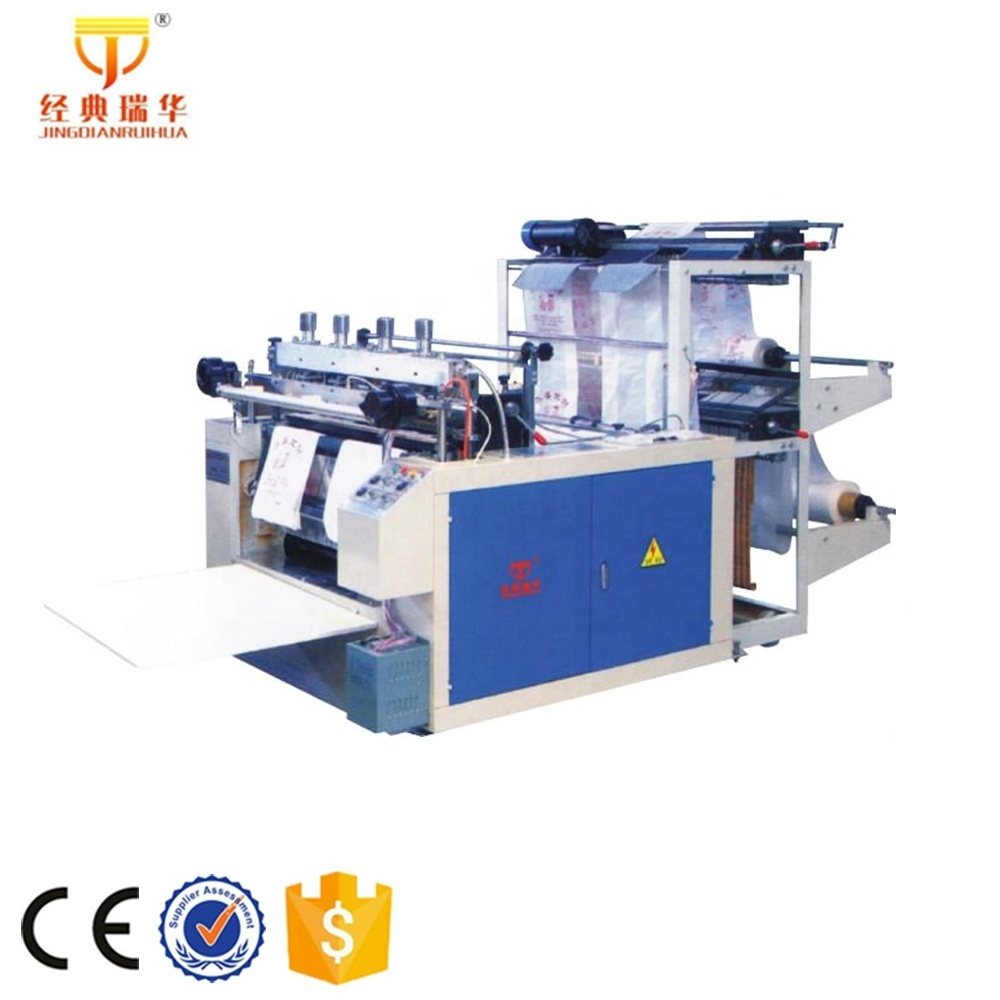

Thick Plastic Bag Making Machine is suitable for vest bags and flats bags with printing.
Characteristics:
1.It's used for producing vest bags/t-shirt bags with or without printing.
2.The main motor adopts inverer control to save more electricity and regulated speed more easily.
3.the color tracker with perfect performance make the sealing and cutting length more accurately.
4.It adopts advanced computer to adjust length more easily and accurately.
Thick Plastic Bag Making Machine is suitable for vest bags and flats bags with printing.
Characteristics:
1.It's used for producing vest bags/t-shirt bags with or without printing.
2.The main motor adopts inverer control to save more electricity and regulated speed more easily.
3.the color tracker with perfect performance make the sealing and cutting length more accurately.
4.It adopts advanced computer to adjust length more easily and accurately.
Main Technical Parameters:
|
Model
|
DFR-600
|
DFR-700
|
DFR-800
|
DFR-900
|
|||
|
Making bag width
|
120-500mm
|
150-600mm
|
200-700mm
|
200-800mm
|
|||
|
Making bag length
|
max. 1000mm
|
max. 1000mm
|
max. 1000mm
|
max. 1000mm
|
|||
|
Bag making speed
|
150pcs/min
|
150pcs/min
|
|
|
|||
|
Main Motor
|
1.1kw
|
1.1kw
|
1.1kw
|
.1kw
|
|||
|
Heating Power
|
2kw
|
2kw
|
2.4kw
|
2.6kw
|
|||
|
Machine weight
|
700kg
|
800kg
|
900kgs
|
1000kgs
|
|||
|
Dimension(L*W*H)mm
|
3300*1150*1600
|
3300*1250*1600
|
3300*1350*1600
|
3300*1450*1600
|
|||
Produced Sample Bag Photos
