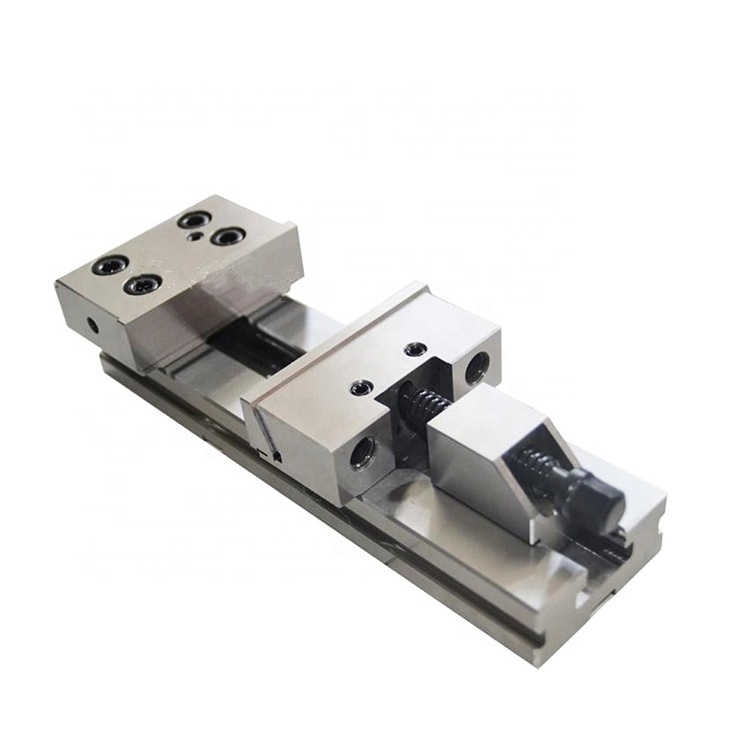

CNC Precision Milling Vise GT150B GT150X300 Modular Precision Vise for Tools Clamping

CNC Precision Milling Vise GT150B GT150X300 Modular Precision Vise for Tools Clamping

FOB Reference Price: Get Latest Price

≥1 Pieces

US $210

≥10 Pieces

US $200

≥50 Pieces

US $190

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Core Components:: Vise

Product name:: Precision Milling Vise GT150B GT150X300 Modular Precision Vise

Material:: 20CrMnTi

Hardness:: HRC58-62

Parallelism:: 0.015mm

Application:: Machining Centers

Usage:: Workholding Precision Vise

Payment:: T/T

MOQ:: 1 Piece

Model:: Standard Model

Advantage:: Accurate Positioning

Quick Details

Place of Origin:: Shandong, China

Brand Name:: SAILVIN

Weight (KG):: 6

Core Components:: Vise

Product name:: Precision Milling Vise GT150B GT150X300 Modular Precision Vise

Material:: 20CrMnTi

Hardness:: HRC58-62

Parallelism:: 0.015mm

Application:: Machining Centers

Usage:: Workholding Precision Vise

Payment:: T/T

MOQ:: 1 Piece

Model:: Standard Model

Advantage:: Accurate Positioning

Product Description

Specification

CNC Precision Milling Vise GT150B GT150X300 Modular Precision Vise for Tools Clamping We Produce

DEZHOU SAILVIN MECHATECH CO., LTD produce diversified CNC Precision Milling Vise GT150B GT150X300 Modular Precision Vise for Tools Clamping , which is made of 20CrMnTi and the hardness is HRC58-62. The GT modular vise we make can keep the parallelism of 0.015mm.
Meanwhile we also make other machine tool accessories, including collets, tool holders, clamping nuts, pull studs, etc. We will try our best to supply highest cost performance products and service.

Model	B(mm)	H(mm)	Smax(mm)	L(mm)	Clamping Force(Kg)
GT100-Ⅰ	100	30	100	270	3000
GT125-Ⅰ	125	40	150	345	3000
GT150A-Ⅰ	150	50	200	420	5000
GT150B-Ⅰ	150	50	300	520	5000
GT150C-Ⅰ	150	50	400	620	5000
GT175A-Ⅰ	175	60	200	455	6000
GT175B-Ⅰ	175	60	300	555	6000
GT175C-Ⅰ	175	60	400	655	6000
GT175D-Ⅰ	175	60	500	755	6000
GT175E-Ⅰ	175	60	600	855	6000
GT200A-Ⅰ	200	65	200	495	10000
GT200B-Ⅰ	200	65	300	595	10000
GT200C-Ⅰ	200	65	400	695	10000
GT200D-Ⅰ	200	65	500	795	10000
GT200E-Ⅰ	200	65	600	895	10000
GT300A-Ⅰ	300	80	200	535	12000
GT300B-Ⅰ	300	80	300	635	12000
GT300C-Ⅰ	300	80	400	735	12000
GT300D-Ⅰ	300	80	500	835	12000
GT300E-Ⅰ	300	80	600	935	12000
GT300F-Ⅰ	300	80	700	1035	12000
GT300G-Ⅰ	300	80	800	1135	12000

Packing & Delivery

CNC Precision Milling Vise GT150B GT150X300 Modular Precision Vise for Tools Clamping Packge for shipment

1, CNC Precision Milling Vise GT150B GT150X300 Modular Precision Vise for Tools Clamping is packed by the film first, aims at keeping the oil which covering on the surface the GT vise, it will protect product material and anti rusting.

2, Secondly we will pack the single CNC Precision Milling Vise GT150B GT150X300 Modular Precision Vise for Tools Clamping by the carbon box to fix it.
3, Finally the carbon box will be filled into the wooden box for shipment by sea or by air.
