Quick Details
-
Brand Name:
-
Wanglink
-
Model Number:
-
WOR-8FE-2FE-POE
-
Place of Origin:
-
Guangdong, China
-
Key Feature1:
-
Smart POE Switch 8Port
-
Key Feature2:
-
10/100M POE Switch 8port
-
Key Feature3:
-
IEEE802.3AF/AT
-
Application:
-
Telecommunication
-
Certification:
-
CE RoHS FCC
-
Transmission distance:
-
250Merter POE Max
-
Transmission rate:
-
10/100Mbps POE 8 Port
-
Uplink rate:
-
100Mbps uplink 2 port
-
LED Display:
-
Power ,T-LINK ,R-LINK
-
Power Supply:
-
External Power 120W(52V 2.3A)
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
1.2G
-
Brand Name:
-
Wanglink
-
Model Number:
-
WOR-8FE-2FE-POE
-
Place of Origin:
-
Guangdong, China
-
Key Feature1:
-
Smart POE Switch 8Port
-
Key Feature2:
-
10/100M POE Switch 8port
-
Key Feature3:
-
IEEE802.3AF/AT
-
Application:
-
Telecommunication
-
Certification:
-
CE RoHS FCC
-
Transmission distance:
-
250Merter POE Max
-
Transmission rate:
-
10/100Mbps POE 8 Port
-
Uplink rate:
-
100Mbps uplink 2 port
-
LED Display:
-
Power ,T-LINK ,R-LINK
-
Power Supply:
-
External Power 120W(52V 2.3A)
Product Description

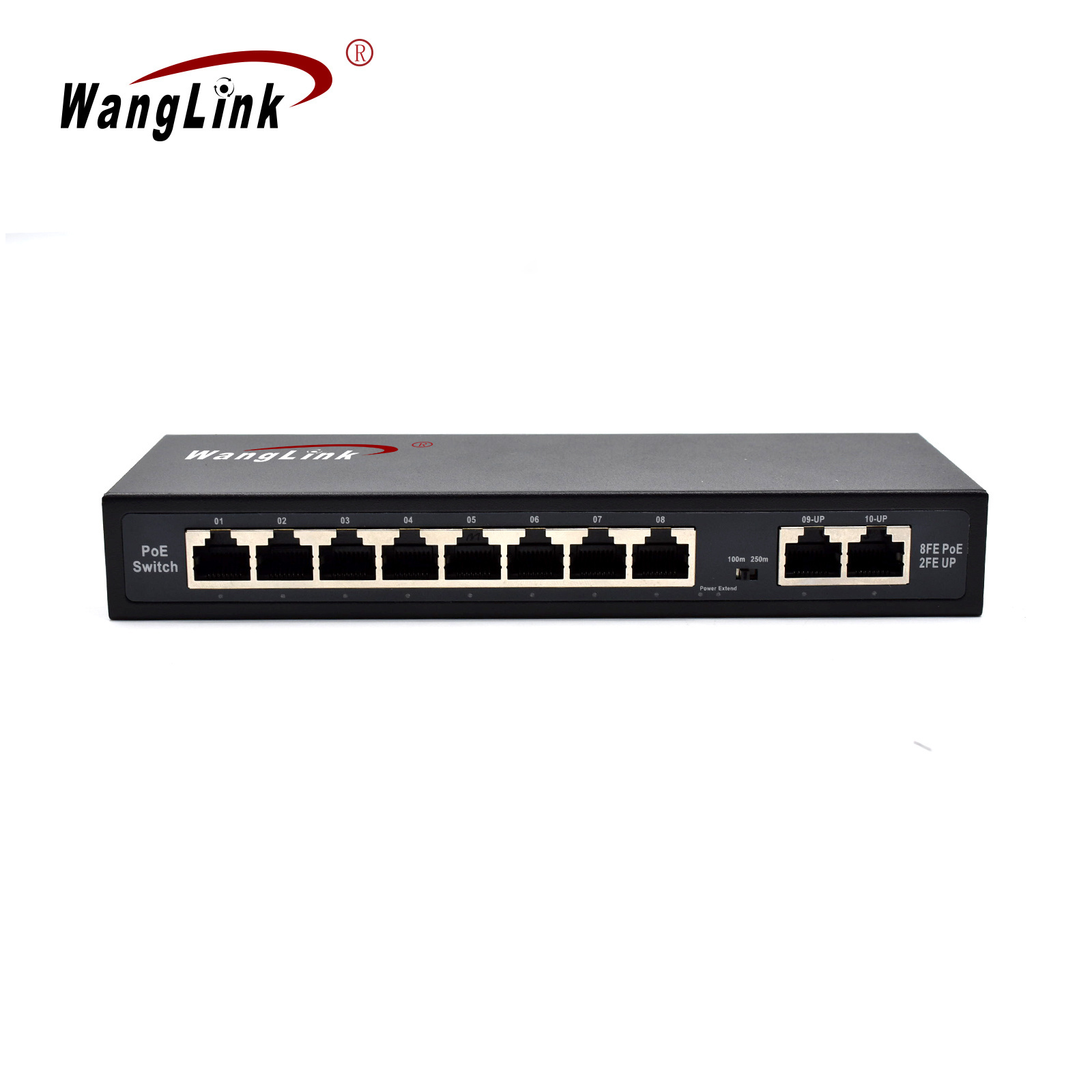

Wanglink OEM/ODM POE Switch 10/100m 8 ports Extend 250M Support VLAN with 2 100Base-TX Uplink Switch POE Port Network Ethernet
This PoE Switch provides a network point for power supply and data transmission. All the 10 Ethernet ports can be connected with 10/100Mbps quickly, and the uplink port is Ethernet interface, among which 1-8 port can provide standard IEEE 802.3af power supply. Due to the advanced self-sensing algorithm supply power for IEEE802af terminal unit only, there is no need to worry about damaging proprietary PoE or non-PoE standard equipment. In addition, it will stop power supply when PoE devices are not connected.
Product Specification
|
Product description
|
Wanglink OEM/ODM POE Switch 10/100m 8 ports Extend 250M Support VLAN with 2 100Base-TX Uplink Switch POE Port Network Ethernet
|
|
|
|
|||
|
Model No.
|
WOR-8FE-2FE-POE
|
|
|
|
|||
|
Port description
|
8*10/100Mbps POE port (all ports support MDI/MDIX self-adapting)2*100Mbps uplink port
|
|
|
|
|||
|
Network media
|
100BASE-TX: ≥Cat 5 UTP (≤100m)
|
|
|
|
|||
|
Network protocol
|
IEEE 802.3 I; The IEEE 802.3 u; IEEE 802.3 x Flow Control; IEEE 802.1 af/at DTE Power via MDI
|
|
|
|
|||
|
Performance
|
Backboard bandwidth: 8Gbps (no blocking)
Forwarding mode: store forward (can be forwarded by line speed) MAC address list: 1K |
|
|
|
|||
|
POE
|
1-8 port support for IEEE802.3 af (15.4 W) network power supply
Standard: IEEE 802.3 af/at (port output power 15.4 W Type: terminal straddle method (optional middle span) Port: 15.4w per port power (IEEE802.3 af/at) Wire core: 1/2 +, 3/6 - line pair (optional: 4/5 +, 7/8-line pair) Total power for POE: 120W |
|
|
|
|||
|
Environmental
|
Working temperature: - 30 ° C ~ 70 ° C
Storage temperature: - 35° C ~ 75 ° C Working humidity: 5% ~ 95%(no condensation) |
|
|
|
|||
|
Weight
|
NW: 1.2KG GW: 1.4KG
|
|
|
|
|||
Application
