Quick Details
-
Max. Turned Length (mm):
-
2000 mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YANCHENG C&J MACHINE TOOLS
-
Model Number:
-
CD6240C CD6250C CD6260C
-
Voltage:
-
110/220/380/400 V/3P
-
Dimension(L*W*H):
-
2420/2920/3460X1150X1800
-
Weight (KG):
-
3070 KG
-
old and new:
-
new
-
After sales Service Provided:
-
Overseas third-party support available
-
Automatic Grade:
-
Manual
-
CNC or Not:
-
Normal
-
Max swing over bed:
-
400mm 500mm 660mm
-
Max swing over gap:
-
530mm 630mm 730mm
-
Max turning dia.over cross slide:
-
225mm 325mm 360mm
-
Max length to be turned:
-
1000mm 1500mm 2000mm
-
Speed range:
-
24-1600rpm
-
Spindle bore dia:
-
80mm
Quick Details
-
Max. Length of Workpiece (mm):
-
2000
-
Machining Capacity:
-
Medium Duty
-
Spindle Bore(mm):
-
80
-
Max. Turned Length (mm):
-
2000 mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YANCHENG C&J MACHINE TOOLS
-
Model Number:
-
CD6240C CD6250C CD6260C
-
Voltage:
-
110/220/380/400 V/3P
-
Dimension(L*W*H):
-
2420/2920/3460X1150X1800
-
Weight (KG):
-
3070 KG
-
old and new:
-
new
-
After sales Service Provided:
-
Overseas third-party support available
-
Automatic Grade:
-
Manual
-
CNC or Not:
-
Normal
-
Max swing over bed:
-
400mm 500mm 660mm
-
Max swing over gap:
-
530mm 630mm 730mm
-
Max turning dia.over cross slide:
-
225mm 325mm 360mm
-
Max length to be turned:
-
1000mm 1500mm 2000mm
-
Speed range:
-
24-1600rpm
-
Spindle bore dia:
-
80mm

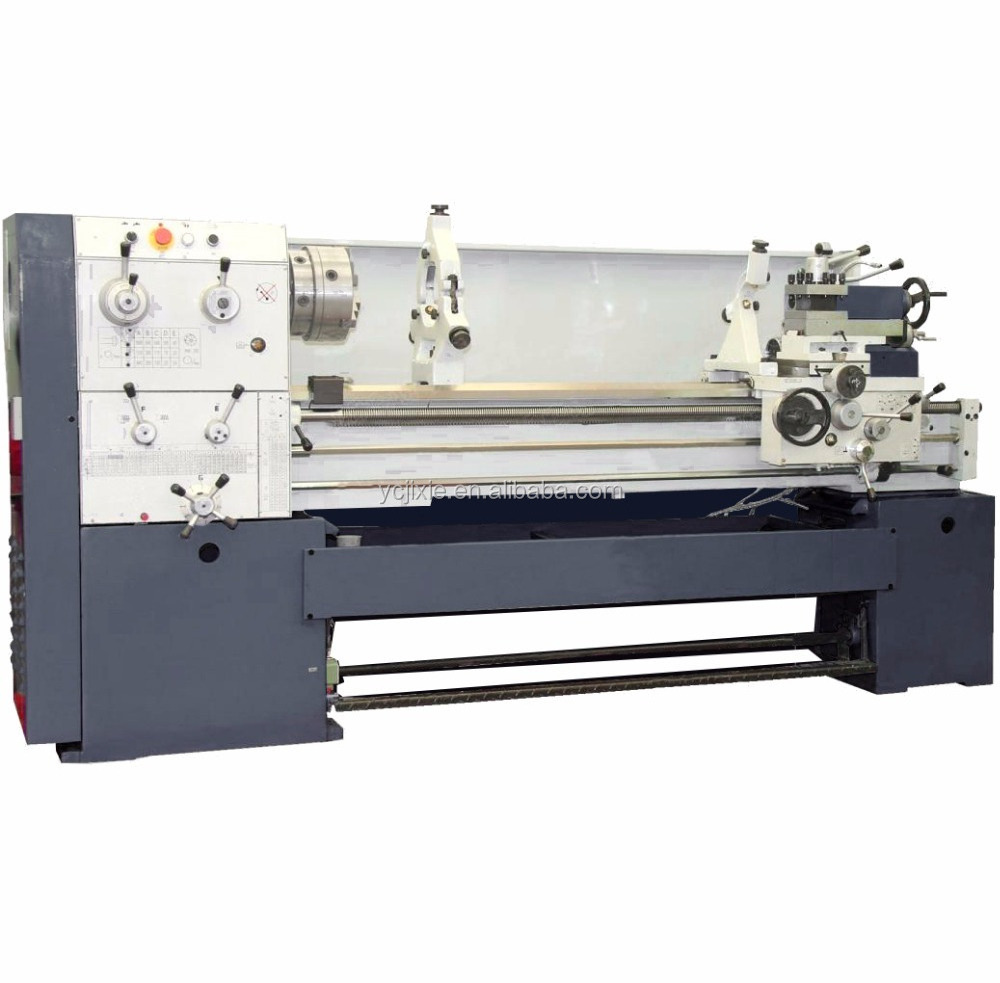

CD6240C CD6250C CD6260C Precision Geared Head Engine Lathe
Feature:
◊ Oversized spindle bore of 80mm;
◊ Main spindle dynamic balanced, and supported at 2 points with taper roller bearing of Harbin brand;
◊ Outward appearance of machine features large plains, making the machine more good-looking;
◊ Gapped bedways, which are super-audio frequency hardened (HB450 plus);
◊ All gears hardened and ground by Reishauer grinding machine;
◊ Leadscrew and feedrod interlocked, both with overload protection;
◊ Automatic feed stopper;
◊ Configuration variable totally according to orders:
Metric or inch system; right or left hand wheel; halogen lamp; quick change; tool post; DRP; T-slot compound; chuck guard; leadscrew hood; rapid traverse motor; electromagnetic brake; forced lubrication system.
|
Item Model |
CD6140C
|
CD6150C
|
CD6160C
|
|
|
CAPACTIES |
Max. swing over bed mm |
400 |
500 |
600 |
|
Max. swing over cross slide mm |
225 |
325 |
360 |
|
|
Max. swing in gap mm |
530 |
630 |
730 |
|
|
Center distance |
1000,1500, 2000mm |
|||
|
Cross slide travel mm |
300mm |
|||
|
SPINDLE |
Spindle hole |
80mm(2 3 /5¡å) |
||
|
Spindle nose |
ISO-C8 or ISO-D8 |
|||
|
Spindle taper |
Metric 85mm |
|||
|
Spindle speeds |
24-1600rpm (15 Steps) |
|||
|
FEEDS |
Metric threads range (Kinds) |
0.5-28mm (66Kinds) |
||
|
Inch threads range (Kinds) |
1-56tpi (66 Kinds) |
|||
|
Module threads range (Kings) |
0.5-3.5mm (33 Kinds) |
|||
|
Diametral threads range (Kings) |
8-56tpi (33 Kinds) |
|||
|
TAILSTOCK |
Spindle diameter |
65mm(2 3 /5¡å) |
75mm(3¡å) |
|
|
Spindle taper |
Morse No. 5 |
|||
|
Spindle travel |
120mm(4 3 /4¡å) |
|||
|
Main motor |
5.5kw |
7.5kw |
||
|
Net weight/Gross weight |
1000mm |
1640/2250kg |
1700/2350kg |
1800/2500kg |
|
1500mm |
1850/2250kg |
1910/2610kg |
2010/2760kg |
|
|
2000mm |
2090/2860kg |
2150/2920kg |
2250/3070kg |
|
|
PACKING SIZE
|
1000mm |
2460*1150*1800mm |
||
|
1500mm |
2950*1150*1800mm |
|||
|
2000mm |
3460*1150*1800mm |
|||
CD6240C CD6250C CD6260C Precision Geared Head Engine Lathe
STANDARD ACCESSORIES
3*jaw chuck (250mm)
4*jaw chuck (320mm)
Face plate
Steady rest
Follow rest
Splash guard
Stand & oil tray
Halogen work lamp
Toolbox & tools
Coolant system
Foot brake
OPTIONAL ACCESSORIES
Turning tools
Leadscrew cover
Chuck guard
Tool post cover
Digital readout system
Taper turning attachment
Rapid moving attachment
Afer-sale services
1.Technical support online service provided.
2.Technical files service provided.
3.Spare parts replacement and repair service provided.
4.Questions will be replied within 24 hours
