Quick Details
-
Voltage:
-
220V
-
Power:
-
2.2KW
-
Dimension(L*W*H):
-
970*460*1310mm
-
Weight (KG):
-
220
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
type:
-
with the base plase 20kg forging hammer
-
Max.hit energy:
-
2.2KJ
-
Height of working area:
-
200MM
-
Hit number:
-
255MIN-1
-
Max.square steel can be forged:
-
30*30mm
-
Motor power:
-
2.2KW
-
Speeds of motor:
-
1440r.p.m
-
Total weight:
-
460kg
-
Overall dimensions(L*W*H):
-
970*460*1310mm
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
pindu
-
Machine Type:
-
new
-
Voltage:
-
220V
-
Power:
-
2.2KW
-
Dimension(L*W*H):
-
970*460*1310mm
-
Weight (KG):
-
220
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
type:
-
with the base plase 20kg forging hammer
-
Max.hit energy:
-
2.2KJ
-
Height of working area:
-
200MM
-
Hit number:
-
255MIN-1
-
Max.square steel can be forged:
-
30*30mm
-
Motor power:
-
2.2KW
-
Speeds of motor:
-
1440r.p.m
-
Total weight:
-
460kg
-
Overall dimensions(L*W*H):
-
970*460*1310mm

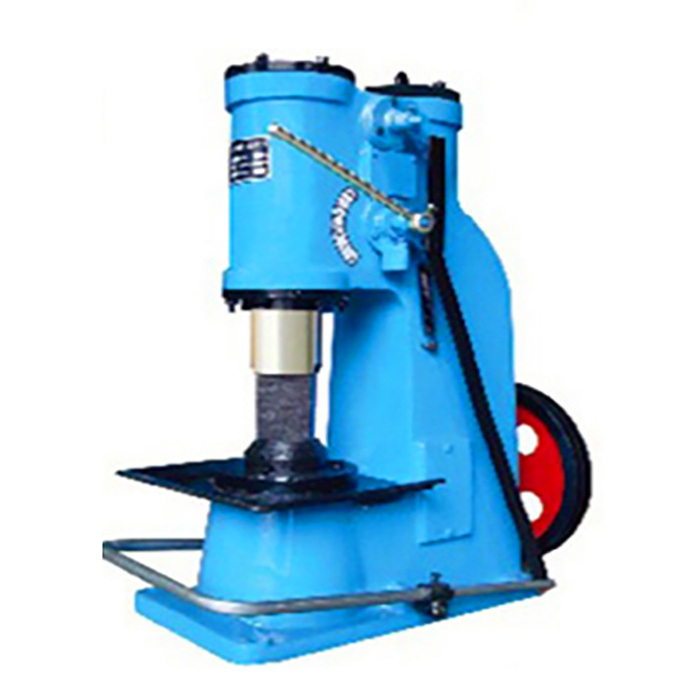

with the base plase 20kg forging hammer
| specification | UNIT | C-41-20K | |||||
| Monomer with the base | |||||||
| Max.hit energy | KJ | 0.22 | |||||
| Height of working area | MM | 200 | |||||
| Hit number | MIN-1 | 255 | |||||
| Dimension of top and | MM | 90*50 | |||||
| botton die surface(L*W) | |||||||
| Max.square steel can be forged | mm | 30*30 | |||||
| Max.round steel can be forged(Diameter) | mm | 35 | |||||
| Motor power | KW | single phase2.2/220 | |||||
| three-phase2.2/380 | |||||||
| Speeds of motor | r.p.m | 1440 | |||||
| Base plate weight | 0 | 60 | |||||
| Total weight | kg | 460 | |||||
| Overall dimensions(L*W*H) | mm | 970*460*1310 | |||||
| specification | UNIT | C-41-16K | |||||
| Monomer with the base | |||||||
| Max.hit energy | KJ | 0.18 | |||||
| Height of working area | MM | 180 | |||||
| Hit number | MIN-1 | 258 | |||||
| Dimension of top and | MM | 70*40 | |||||
| botton die surface(L*W) | |||||||
| Max.square steel can be forged | mm | 20*20 | |||||
| Max.round steel can be forged(Diameter) | mm | 22 | |||||
| Motor power | KW | single phase1.5/220 | |||||
| three-phase1.5/380 | |||||||
| Speeds of motor | r.p.m | 1440 | |||||
| Base plate weight | kg | 40 | |||||
| Total weight | kg | 290 | |||||
| Overall dimensions(L*W*H) | mm | 800*420*1170 | |||||
| specification | UNIT | C-41-20KG | |||||
| Max.hit energy | KJ | 0.22 | |||||
| Height of working area | MM | 200 | |||||
| Hit number | MIN-1 | 255 | |||||
| Dimension of top and | MM | 90*50 | |||||
| botton die surface(L*W) | |||||||
| Max.square steel can be forged | mm | 30*30 | |||||
| Max.round steel can be forged(Diameter) | mm | 35 | |||||
| Motor power | KW | single phase2.2/220 | |||||
| three-phase2.2/380 | |||||||
| Speeds of motor | r.p.m | 1440 | |||||
| Anvil weight | kg | 190 | |||||
| Total weight | kg | 500 | |||||
| Overall dimensions(L*W*H) | mm | 820*460*1110 | |||||
