Quick Details
-
Design Printing:
-
No printing
-
Material:
-
ALUMINIUM FOIL
-
Feature:
-
ANTISTATIC
-
Use:
-
MASKING
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MEIYUAN
-
Model Number:
-
T-FG701R
-
Product name:
-
T-FG701R
-
Backing Thickness:
-
100
-
Total Thickness:
-
145
-
Peel Adhesion:
-
18
-
Tack Rolling Ball:
-
20
-
Tensile Strength:
-
250
-
Elongation:
-
5.0%
-
Service Temperature:
-
-30 ~ +120
-
Applying Temperature:
-
+10 ~ +40
Quick Details
-
Adhesive:
-
Acrylic
-
Adhesive Side:
-
Single Sided
-
Adhesive Type:
-
Pressure Sensitive, Water Activated, Hot Melt
-
Design Printing:
-
No printing
-
Material:
-
ALUMINIUM FOIL
-
Feature:
-
ANTISTATIC
-
Use:
-
MASKING
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MEIYUAN
-
Model Number:
-
T-FG701R
-
Product name:
-
T-FG701R
-
Backing Thickness:
-
100
-
Total Thickness:
-
145
-
Peel Adhesion:
-
18
-
Tack Rolling Ball:
-
20
-
Tensile Strength:
-
250
-
Elongation:
-
5.0%
-
Service Temperature:
-
-30 ~ +120
-
Applying Temperature:
-
+10 ~ +40

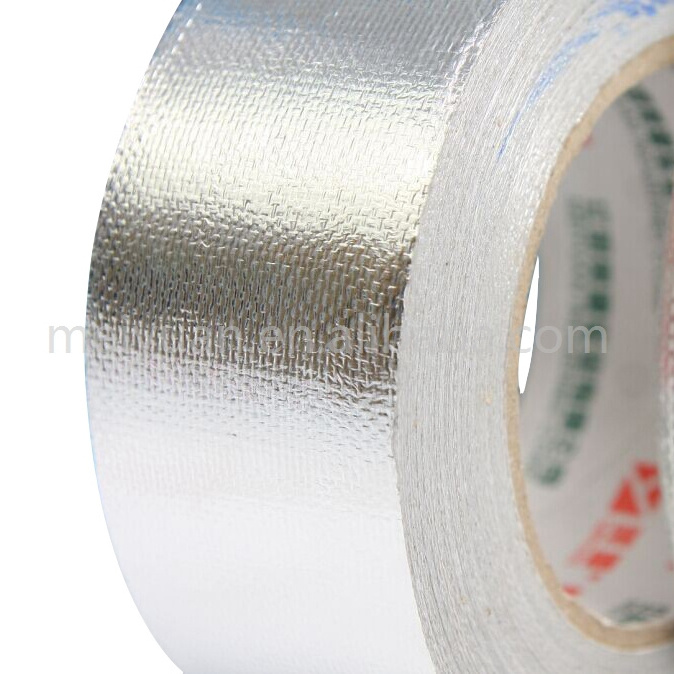

Meiyuan T-FG701 Foil-Glass Cloth Tape is a foil-glass cloth backing (7u foil with a 10x10 mesh 90gsm glass cloth) with acrylic adhesive and protected by easy release liner.
Technical Data Sheet
|
Property
|
Unit
|
Value
|
Test Method
|
|
Total Thickness
(Backing+Adhesive) |
Micron
|
150
|
PSTC-33 / ASTM D3652
|
|
Peel Adhesion
|
N/25mm
|
15
|
PSTC-1 / ASTM D3330
|
|
Tack Rolling Ball
|
cm
|
20
|
PSTC-6 / ASTM D3121
|
|
Tensile Strength
|
N/25mm
|
250
|
PSTC-31 / ASTM D3759
|
|
Elongation
|
%
|
5.0
|
PSTC-31 / ASTM D3759
|
|
Service Temperature
|
℃
|
-10 ~ +120
|
----
|
|
Applying Temperature
|
℃
|
+10 ~ +40
|
----
|
Cut Roll: 48mm, 50mm (2"), 60mm, 63mm (2.5"), 72mm, 75mm (3"), 96mm, 100mm (4").
Jumbo Roll: 1200mm x 800M
Remarks
1.The data above are typical results and subject to change without notice.
2.Tolerance: Weight and Thickness: 10%; Width: 3mm; Length: Cut Roll: 0.3m, Jumbo Roll 0.5%.
3.The product should be stored at room temperature and kept from wet and heat source.
Shelf life: One year from shipment date when stored at 21C (70F) / 50% relative humidity out of direct sunlight.
4.It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied must be clean, dry, and free of grease and oil.
5.The user should take test and do trial-application on the above products before coming into application so as to witness and ensure suitability for user's special purpose and technique.
Features
◇ High Tensile & Tear Strength
◇
Good Initial Tack & Permanent Bonding
◇
Match Foil-Glass Cloth Laminate
◇ Outstanding Temperature & Aging Resistance
Q1 :What certificates you have for your products?
A:We have some patents and SGS certificates for our products.
Q2 :What is your payment method?
A:We prefer to T/T, 30% deposit and the balance 70% paid off before shipment.
Q3 :Can we make an small order?
A:Yes, we can accept small order, but there won't be discount.
Q4 :What is the lead time?
A:As usual, we will complete the delivery within 15 days after your order.
Q5 :Can i get some samples for testing before placing order ?
A:Yes, we can provide you some free samples for your reference if you would like to bear the express cost.
Q6 :Can you make other sizes and packages for this product?
A:Yes, we can make other sizes as your requirement, normally our quotation will contain the common package.
If you need your own packages, you'd better advise your requirement ahead of time for an accurate quote.
Q7 :What is your Policy for the quality problems?
A:After our products are confirmed have quality problems, we are agreed to return all of your money.
