Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
VINAC
-
Model Number:
-
DZ47
-
Rated Frequency (Hz):
-
50
-
Product name:
-

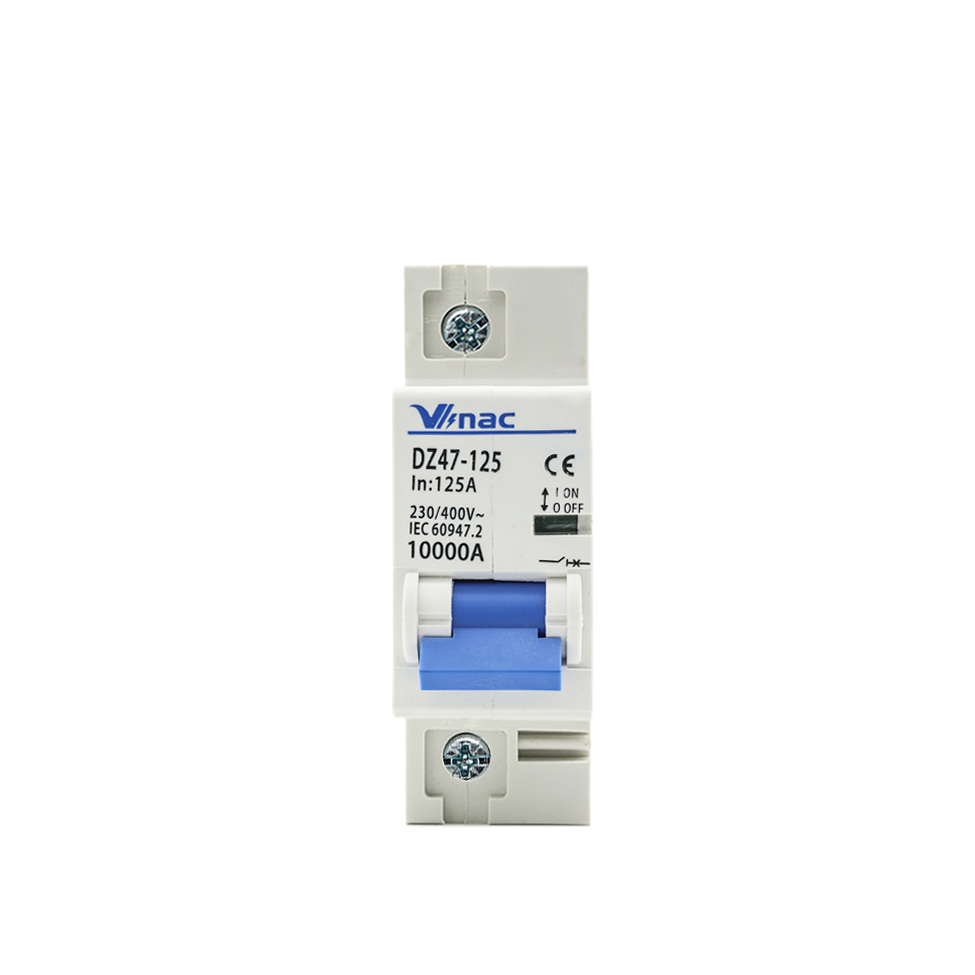

MCB Miniature Circuit Breaker
-
Application:
-
Industry
-
Certificate:
-
CE
-
Pole:
-
2pole
-
Color:
-
white
-
Warranty:
-
12 months
-
Brand:
-
Vinac
-
Rated Current:
-
125A
-
Model:
-
DZ47-125
-
MOQ:
-
20pcs
Quick Details
-
Breaking Capacity:
-
4.5kA, 6kA, 10kA
-
Rated Voltage:
-
230V 400V
-
BCD Curve:
-
B,C,D
-
Place of Origin:
-
China
-
Brand Name:
-
VINAC
-
Model Number:
-
DZ47
-
Rated Frequency (Hz):
-
50
-
Product name:
-
MCB Miniature Circuit Breaker
-
Application:
-
Industry
-
Certificate:
-
CE
-
Pole:
-
2pole
-
Color:
-
white
-
Warranty:
-
12 months
-
Brand:
-
Vinac
-
Rated Current:
-
125A
-
Model:
-
DZ47-125
-
MOQ:
-
20pcs
Product Description
|
Type
|
Standard
|
|
IEC/EN 60947-2
|
|
Electrical
features
|
Rated current In
|
A
|
63,80,100,125
|
|
|
Poles
|
P
|
1,2, 3,4
|
|
|
Rated voltage Ue
|
V
|
230/400
|
|
|
Insulation voltage Ui
|
V
|
500
|
|
|
Rated frequency
|
Hz
|
50/60
|
|
|
Rated breaking capacity
|
A
|
6000
|
|
|
Rated impulse withstand voltage(1.2/50) Uimp
|
V
|
6000,10000
|
|
|
Dielectrc test voltage at ind.Freq. for lmin
|
KV
|
2.5
|
|
|
Pollution degree
|
|
3
|
|
|
Thermo-magnetc release characteristic
|
|
8-12In
|
|
features
|
Electrical ife
|
t
|
1500
|
|
|
Mechanical ife
|
t
|
10000
|
|
|
Contact position indicator
|
|
Yes
|
|
|
Protection degree
|
|
IP20
|
|
|
Reference temperature for setting
of thermal element |
|
-5~+40(Special application please refer to temperature compensaton correction)
|
|
|
Ambient temperature
(with daily average≤35℃)
|
℃
|
30
|
|
|
Storage temperature
|
℃
|
-25~+70
|
|
|
Terminal connection type
|
℃
|
Cable/Pin-type busbar
|
|
|
Terminal size top / bottom for cable
|
m㎡
|
50
|
|
|
|
AWG
|
18-1/0
|
|
|
Terminal size top / bottom for busbar
|
m㎡
|
50
|
|
|
|
AWG
|
18-1/0
|
|
|
Tightening torque
|
N*m
|
3.5
|
|
|
|
In-Ibs
|
31
|
|
|
Mounting
|
|
On DIN rail EN60715(35mm)by means of fast clip device
|
|
|
Connection
|
|
From top and bottom
|
