Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SUYEEGO
-
Model Number:
-
SYGG-5000w
-
Output Frequency:
-
50/60 Hz
-
Size:
-
45*21*17cm
-
Weight:
-
12kg
-
Certificate:
-
CE RoHs FCC
-
Color:
-
Black
-
Shell material:
-
Aluminium alloy
-
Output wave form:
-
pure sine wave inverter
-
Continuous Power:
-
5000w
-
Efficiency:
-
93%
-
Display:
-
LED display
-
Package:
-
kraft carton
-
Certification:
-
CE/RoHS
-
Warranty:
-
1 years
-
ODM/OEM:
-
Yes
Quick Details
-
Output Current:
-
Depends on model
-
Network:
-
Off grid inverter, High frequency inverter
-
Customized support:
-
OEM/ODM, LOGO
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SUYEEGO
-
Model Number:
-
SYGG-5000w
-
Output Frequency:
-
50/60 Hz
-
Size:
-
45*21*17cm
-
Weight:
-
12kg
-
Certificate:
-
CE RoHs FCC
-
Color:
-
Black
-
Shell material:
-
Aluminium alloy
-
Output wave form:
-
pure sine wave inverter
-
Continuous Power:
-
5000w
-
Efficiency:
-
93%
-
Display:
-
LED display
-
Package:
-
kraft carton
-
Certification:
-
CE/RoHS
-
Warranty:
-
1 years
-
ODM/OEM:
-
Yes
|
SUYEEGO SYGG 2kw 3kw 500w 5kw 6kw power inverter without rechargeable input 24v output 220v for solar storage energy battery
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
Product Description
Product Paramenters
|
Model
|
SYGG-3000W
|
|
SYGG-4000W
|
|
SYGG-5000W
|
|
SYGG-6000W
|
|
|||||||
|
Continuous Power
|
3000W
|
|
4000W
|
|
5000W
|
|
6000W
|
|
|||||||
|
Peak Power
|
6000W
|
|
8000W
|
|
10000W
|
|
12000W
|
|
|||||||
|
Output Waveform
|
Pure Sine Wave
|
|
|
|
|
|
|
|
|||||||
|
Display
|
LCD Display
|
|
|
|
|
|
|
|
|||||||
|
Efficiency
|
>95%
|
|
|
|
|
|
|
|
|||||||
|
Certificate
|
CE/FCC/ROHS
|
|
|
|
|
|
|
|
|||||||
|
Overload & Short Circuit Protection
|
Yes
|
|
|
|
|
|
|
|
|||||||
|
Overload Cut Off
|
Yes
|
|
|
|
|
|
|
|
|||||||
|
No-load Current
|
≤1A
|
≤1.5A
|
|
≤1.5A
|
|
|
|
≤1.5A
|
|||||||
|
Frequency range
|
50Hz/60Hz optional
|
|
|
|
|
|
|
|
|||||||
|
Remote cable control
|
for optional
|
|
|
|
|
|
|
|
|||||||
|
Input Voltage
|
DC12V/DC24V/DC48V
|
|
|
|
|
|
|
|
|||||||
|
Low Voltage Alarm Level
|
DC10.5±0.3V/DC21±0.6V/DC41.8+1.2V
|
|
|
|
|
|
|
|
|||||||
|
Low Voltage Cut Off Level
|
DC9.5±0.2V/DC19±0.3V/DC38±0.4V
|
|
|
|
|
|
|
|
|||||||
|
Over Voltage Protection
|
DC15.5±0.5V/DC31±1V/DC62±2V
|
|
|
|
|
|
|
|
|||||||
|
AC Input Voltage
|
110V/120V/220V/240V
|
|
|
|
|
|
|
|
|||||||
|
Max Outer Temperature
|
-10 to 50℃
|
|
|
|
|
|
|
|
|||||||
|
Dimension,D x W x H (cm)
|
35*20*15
|
40*21*17
|
|
|
|
45*21*17
|
|
45*21*17
|
|||||||
|
Net weight(kgs)
|
8.9
|
10.2
|
|
|
|
11.9
|
|
13
|
|||||||
Send your inquiry to us!
------More than 10 Years Industry Experience, OEM/ODM available, for more any information, please feel free to contact us by
click here
.

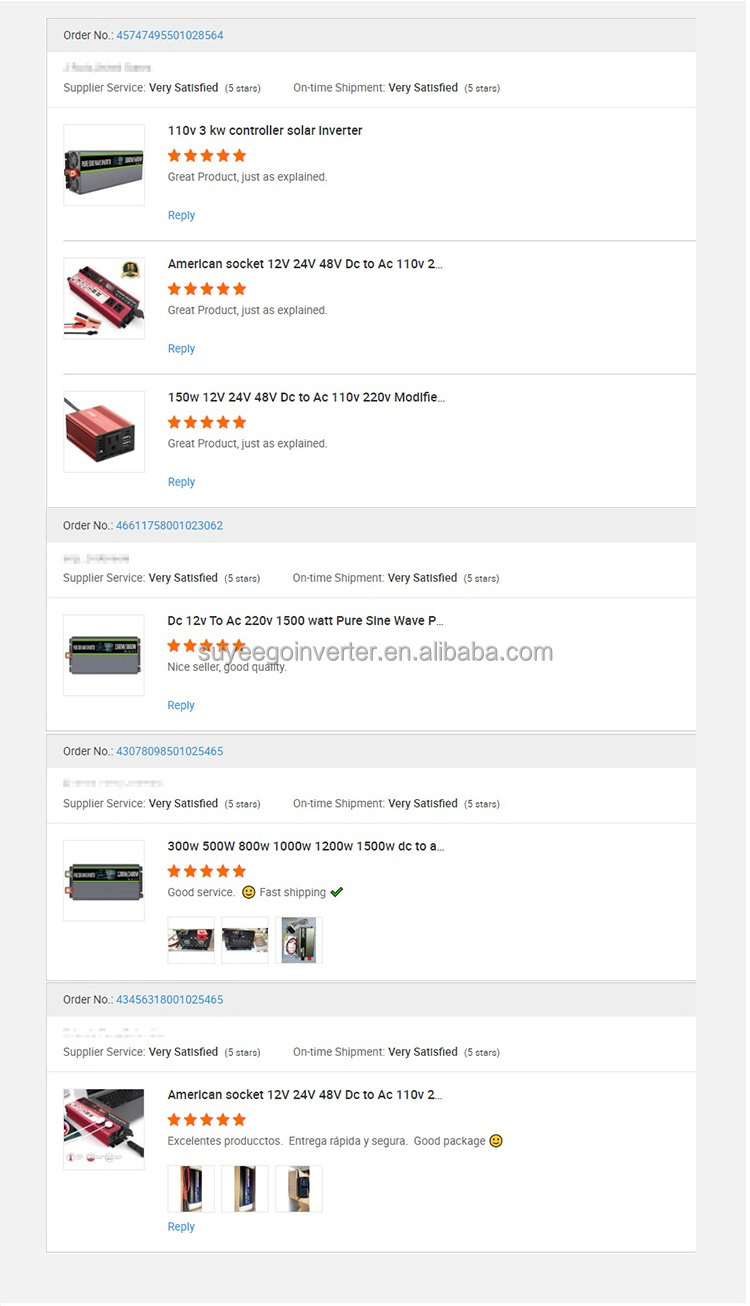

Client feedback
Company Introduction
Certifications
FAQ
1. How does a power inverter work?

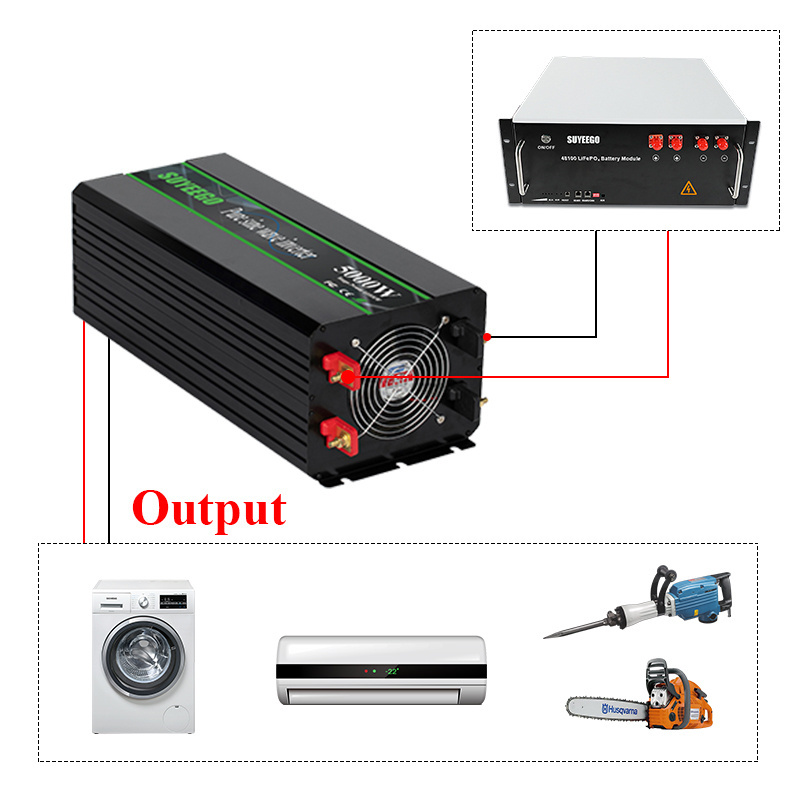

A power inverter converts DC power into conventional AC power, when an AC outlet is not available. Simply connect an inverter to a battery source, plug your appliance into the inverter.
2. What is the difference between a modified sine inverter and pure sine wave inverter?
Modified sine wave power inverter is more portable than pure sine wave power inverter, lighter, and lower in cost. If the device handles voltage fluctuations, a modified sine wave inverter should be considered.Most devices that people typically wish to power will work fine with a modified sine wave inverter.
Pure sine wave power inverter allows motors to run cooler, last longer and provide very clean power that is same quality with State Grid . Devices such as air conditioner, Freezer and most medical equipment require a pure sine wave inverter to run.
3. What type of batteries do you recommend?

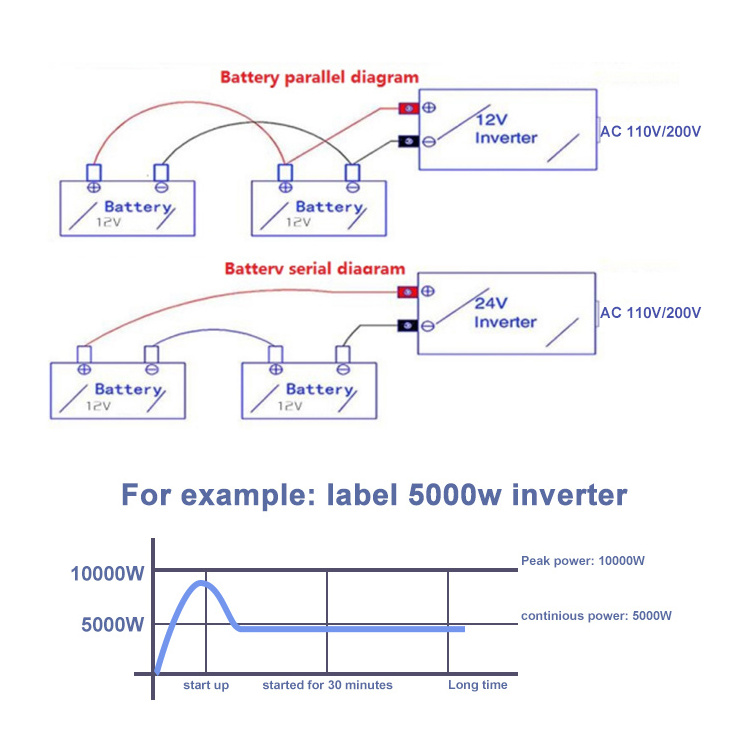

Most of people choose to use deep cycle marine batteries with their inverters. Also can use Acid battery, Lithium battery.
4. Do you accept OEM and ODM service?
Yes, we accept OEM and ODM service.
5. How long of the delivery time, sample order and wholesale order?
For Sample order, within 3 days; For 1000pcs wholesale order, 7-15 working days.
6. How do I know which inverter to buy?
Different devices require specific wattages to run. Please check the following formula to determine the correct watt model:
AMPS x 120 = Watts
For Example: 20 Amp Freezer Unit * 120 = 2400 Watts
A power inverter converts DC power into conventional AC power, when an AC outlet is not available. Simply connect an inverter to a battery source, plug your appliance into the inverter.
2. What is the difference between a modified sine inverter and pure sine wave inverter?
Modified sine wave power inverter is more portable than pure sine wave power inverter, lighter, and lower in cost. If the device handles voltage fluctuations, a modified sine wave inverter should be considered.Most devices that people typically wish to power will work fine with a modified sine wave inverter.
Pure sine wave power inverter allows motors to run cooler, last longer and provide very clean power that is same quality with State Grid . Devices such as air conditioner, Freezer and most medical equipment require a pure sine wave inverter to run.
3. What type of batteries do you recommend?
Most of people choose to use deep cycle marine batteries with their inverters. Also can use Acid battery, Lithium battery.
4. Do you accept OEM and ODM service?
Yes, we accept OEM and ODM service.
5. How long of the delivery time, sample order and wholesale order?
For Sample order, within 3 days; For 1000pcs wholesale order, 7-15 working days.
6. How do I know which inverter to buy?
Different devices require specific wattages to run. Please check the following formula to determine the correct watt model:
AMPS x 120 = Watts
For Example: 20 Amp Freezer Unit * 120 = 2400 Watts
