Quick Details
-
Brand Name:
-
Sunnymed
-
Model Number:
-
SY-H010
-
Type:
-
Examination Therapy Equipments
-
Speed of sampling:
-
200 Hz/sec
-
Input impedance:
-
≥10MΩ
-
Level of noise:
-
≤5uV Vp-p
-
Magnifying multiple:
-
10 000
-
Precision of sampling:
-
12 bit
-
Patient leak current:
-
< 10uA
-
CMRR:
-
≥90dB
-
Speed of displaying:
-
5, 10, 15, 30, 60, 120 mm/s
-
Product name:
-
EEG
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sunnymed
-
Model Number:
-
SY-H010
-
Type:
-
Examination Therapy Equipments
-
Speed of sampling:
-
200 Hz/sec
-
Input impedance:
-
≥10MΩ
-
Level of noise:
-
≤5uV Vp-p
-
Magnifying multiple:
-
10 000
-
Precision of sampling:
-
12 bit
-
Patient leak current:
-
< 10uA
-
CMRR:
-
≥90dB
-
Speed of displaying:
-
5, 10, 15, 30, 60, 120 mm/s
-
Product name:
-
EEG
Product Description
Specification

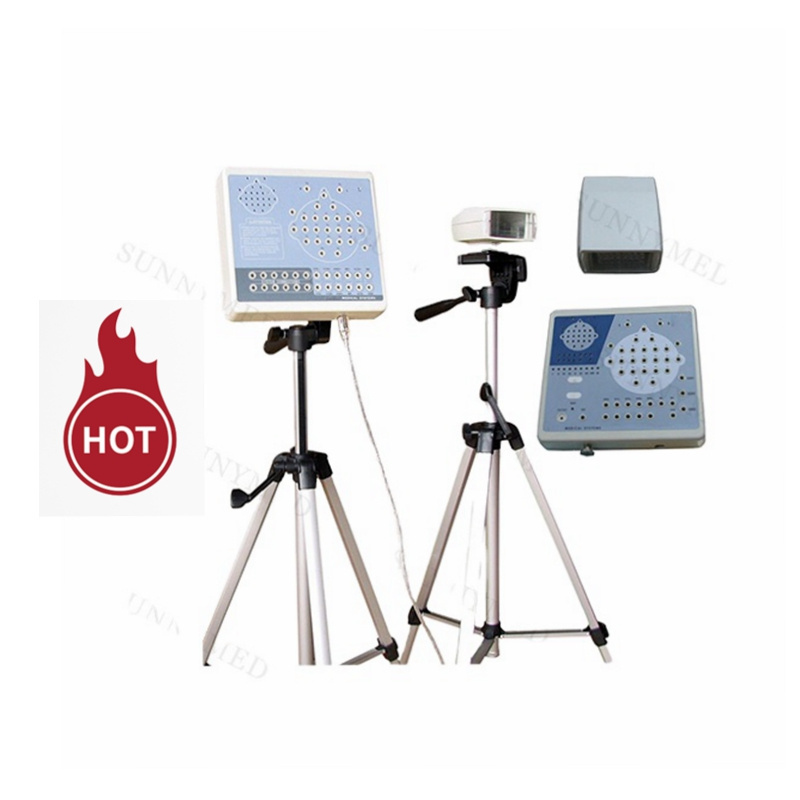

SY-H010 Digital Brain Electric Activity Mapping collects EEG signal with electrodes, via integrated amplification, A/D transformation, PC auto-analysis, FFT, to form electroencephalogram that displays with color depth. The product is applicable for checking such diseases as epilepsy, intracranial inflammation, cerebrovascular diseases and brain tumors.
Physical characteristic
Dimension: 186 mm(L)×135 mm(W)×89.2 mm(H)
Weight: 550g
Operational environment:
Temperature: +5℃~+40℃
Relative humidity: 25%~95% (no condensation)
Atmospheric pressure: 700hPa~1060hPa
Power supply: USB 5V DC
Storage environment:
Temperature:-20℃~+55℃
Relative humidity: ≤90%
Atmospheric pressure: 700hPa~1060hPa
Dimension: 186 mm(L)×135 mm(W)×89.2 mm(H)
Weight: 550g
Operational environment:
Temperature: +5℃~+40℃
Relative humidity: 25%~95% (no condensation)
Atmospheric pressure: 700hPa~1060hPa
Power supply: USB 5V DC
Storage environment:
Temperature:-20℃~+55℃
Relative humidity: ≤90%
Atmospheric pressure: 700hPa~1060hPa
|
Speed of sampling:
|
200 Hz/sec.
|
|
Precision of sampling:
|
12 bit
|
|
Input impedance:
|
≥10MΩ
|
|
Patient leak current:
|
< 10uA
|
|
Level of noise:
|
≤5uV Vp-p
|
|
CMRR:
|
≥90dB
|
|
Magnifying multiple:
|
10 000
|
|
Filtering constant:
|
all digital and free enactment
|
|
Speed of displaying(paper speed):
|
5, 10, 15, 30, 60, 120 mm/s
|
|
Displaying gain:
|
1,2,5,10,12,15,20 mm/50uv
|
|
Speed of review:
|
1, 2, 3, 10, 20, 40, 60
|
|
50Hz interference suppression ratio:
|
≥30dB
|
