Quick Details
-
Brand Name:
-
HUAZHENG
-
Model Number:
-
HZC-3980
-
Product type:
-
Circuit breaker test set instrument for power system GIS measuring
-
Input Power:
-
220V±10% 50Hz±10%
-
Temperature:
-
-10~40℃
-
Humidity:
-
<=80%RH
-
Time:
-
range 4000.0ms
-
Speed:
-
span 20.00m / s
-
Current:
-
20.00A
-
Output power:
-
DC30 ~ 250V digital adjustable / 20A (instantaneous work)
-
Dimensions:
-
360mm (L) * 280mm (W) * 300mm (H)
-
Weight:
-
9kg
Quick Details
-
Warranty:
-
1 years
-
Power:
-
Electronic
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HUAZHENG
-
Model Number:
-
HZC-3980
-
Product type:
-
Circuit breaker test set instrument for power system GIS measuring
-
Input Power:
-
220V±10% 50Hz±10%
-
Temperature:
-
-10~40℃
-
Humidity:
-
<=80%RH
-
Time:
-
range 4000.0ms
-
Speed:
-
span 20.00m / s
-
Current:
-
20.00A
-
Output power:
-
DC30 ~ 250V digital adjustable / 20A (instantaneous work)
-
Dimensions:
-
360mm (L) * 280mm (W) * 300mm (H)
-
Weight:
-
9kg

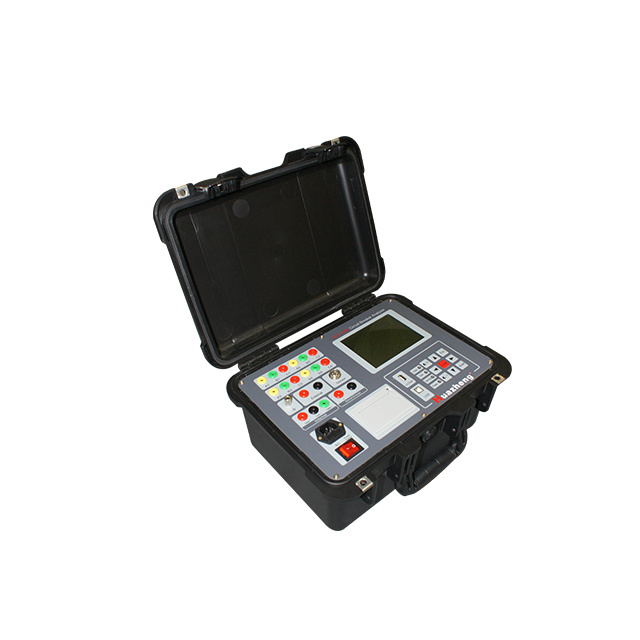

Huazheng Electric HZC-3980 high voltage switch timing circuit breaker analyzer circuit breaker testing device
I. T echnical P arameters
1.1 Using Environments
Input Power 220V±10% 50Hz±10% Air Pressure 86 ~ 106kpa
Temperature - 10 ~ 40 ℃
1.2 Safety P erformance
I nsulation R esistance > 2MΩ
Dielectric Strength 1.5KV power supply chassis work frequency withstand voltage 1 minute, no flashover and arcing.
1.3 The B asic P arameters
a. Time: range: 25000.0ms resolution: 0.1ms
word error: 250ms 0.1ms ± 1
2500ms 0.1% ± 1 word
25000ms 0.1% ± 1 word
b. Speed : span 20.00m / s resolution 0.01m / s
word Error 0-2m / s within ± 0.1m / s ± 1 word
100ms or ± 0.2m / s ± 1 word
c . Current: 1 0.00A resolution range 0.01A
d . Output power: DC30 ~ 250V digital adjustable / 1 0A(instantaneous work)
e . Dimensions: 360mm (L) × 280m m (W) × 300mm (H)
f . Weight: 9kg
g . Tips:
|
|
span |
resolution |
error |
|
Vacuum breaker |
50.0mm |
0.1mm |
1%±1 word |
|
SF6 circuit breaker |
300.0mm |
1mm |
|
|
Less oil circuit breakers |
600.0mm |
