Quick Details
-
Filling Accuracy:
-
99.9%
-
Voltage:
-
220V/380V ( Customized)
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Drinks
-
Dimension(L*W*H):
-
2400*2000*2300mm
-
Weight:
-
2500 KG
-
Product Name:
-
Pure water production line machine
-
Bottle Type:
-
Glass bottle, PET bottle
-
Capacity:
-
1000-12000BPH
-
Machine Material:
-
SUS304
-
Model:
-
CGF24-24-8
-
Processing Types:
-
Normal Pressure Filling
-
Processing:
-
Washing, Filling, Capping, Labeling
-
Filling range:
-
50-2500ml
-
Control:
-
PLC+ Touch Screen+transducer
-
After-sales Service Provided:
-
Engineers
Quick Details
-
Machinery Capacity:
-
4000BPH, 8000BPH, 12000BPH, 6000BPH, 16000BPH, 2000BPH, 1000BPH
-
Packaging Material:
-
Plastic, Glass
-
Filling Material:
-
Beer, Milk, Water, Oil, Juice
-
Filling Accuracy:
-
99.9%
-
Voltage:
-
220V/380V ( Customized)
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Drinks
-
Dimension(L*W*H):
-
2400*2000*2300mm
-
Weight:
-
2500 KG
-
Product Name:
-
Pure water production line machine
-
Bottle Type:
-
Glass bottle, PET bottle
-
Capacity:
-
1000-12000BPH
-
Machine Material:
-
SUS304
-
Model:
-
CGF24-24-8
-
Processing Types:
-
Normal Pressure Filling
-
Processing:
-
Washing, Filling, Capping, Labeling
-
Filling range:
-
50-2500ml
-
Control:
-
PLC+ Touch Screen+transducer
-
After-sales Service Provided:
-
Engineers

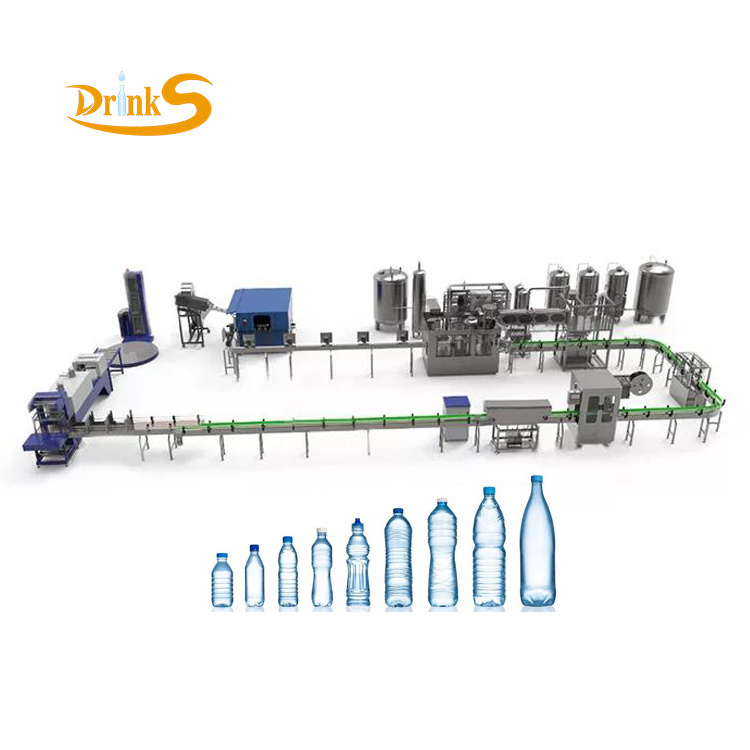

This water filling line is for filling capping labeling and shrink packing bottled water.It can produce 12000 bottles of water per hour for 500ml plastic bottle.The main machine includes:
1.Empty bottle air conveyor
2.Washing filling capping 3 in 1 machine
3.Cap elevator
4.Electric control panel
5.Bottle blow dryer
6.Bottle sleeve labeling machine
7. Laser coding machine
8.Shrink packing machine
|
Model : CGF24-24-8
|
|
|
|
Washing Heads
|
24
|
|
|
Filling Heads
|
24
|
|
|
Capping Heads
|
8
|
|
|
|
9000BPH (1000ml)
12000BPH (500ml)
7000BPH (1500ml)
|
|
|
Bottle Type
|
Plastic bottle(Round bottle, flat bottle, square bottle)
|
|
|
Air source pressure
|
0.5-0.6MPa
|
|
|
Rinsing water pressure
|
0.15-0.2 MPa
|
|
|
Power
|
3 Phase, 380V/50Hz, 5KW
|
|
|
Dimension
|
2400*2000*2300MM
|
|
|
Weight
|
3800KG
|
|
If you want to know more products! Please click
" here ''
to return to the home page, All products!
Transport Port : Shanghai Port.
Transportation: By van ,by train, by plane.
Packaging Details :Machine will be packed by PVC film+ standard wooden case or carton.
Wooden case suitable for long distance ocean shipping
.
1. Who are we?
2. What is your business scope?
Drinking water, Medicine, Beer, Beverage, Dairy, Chemical and cosmetic industries etc.
3. How does your factory do regarding quality control?
Quality is priority. We always attach great importance to quality controlling from the beginning to the end. We support to inspect machine before shipment.
4.What can you buy from us?
Automatic 3 in 1 Water Filling Machine,Automatic CIP Cleaning System,Automatic Sleeve Labeling Machine,Beverage CO2 Mixer,Water Treatment System...
5. What services can we provide?
1.We are 24-hour stand-by for your question and requirement.
2.We can design the machines according to your requirements(material,power,filling type,the kinds of the bottles,and so on) and provide you with our professional suggestion.
3.Free technical support and consultation such as design drawings and factory layout.
4.Before shipment, All the machine will be installed and debugged well .We can send you the video of running machine.machines will be tested for 2-3 days and make sure it's running normally at our end. 5.After shipment , we will provide customer with B/L in time to make sure you can get goods
quickly.Provide you the detailed installation manual,and train your employee until they can operate the machine well.
6. Keep in touch, you can get lifetime counseling.
