Quick Details
-
Brand Name:
-
HiOSO
-
Model Number:
-
FOWAY4506TFS
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Industrial Ethernet Switch
-
MAC:
-
16K
-
MTBF:
-
100,000 hours
-
Power:
-
12/24/48 VDC,18 ~ 30VAC input
-
Operating temperature:
-
Normal:-10~60°C ;-T(wide range temperature: -40~75°C
-
Installation:
-
Din rail installation, wall mounting installation
-
Warranty:
-
3 Years
-
Certification:
-
CE, RoHS
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
22G
-
Brand Name:
-
HiOSO
-
Model Number:
-
FOWAY4506TFS
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Industrial Ethernet Switch
-
MAC:
-
16K
-
MTBF:
-
100,000 hours
-
Power:
-
12/24/48 VDC,18 ~ 30VAC input
-
Operating temperature:
-
Normal:-10~60°C ;-T(wide range temperature: -40~75°C
-
Installation:
-
Din rail installation, wall mounting installation
-
Warranty:
-
3 Years
-
Certification:
-
CE, RoHS
Product Description
Overview

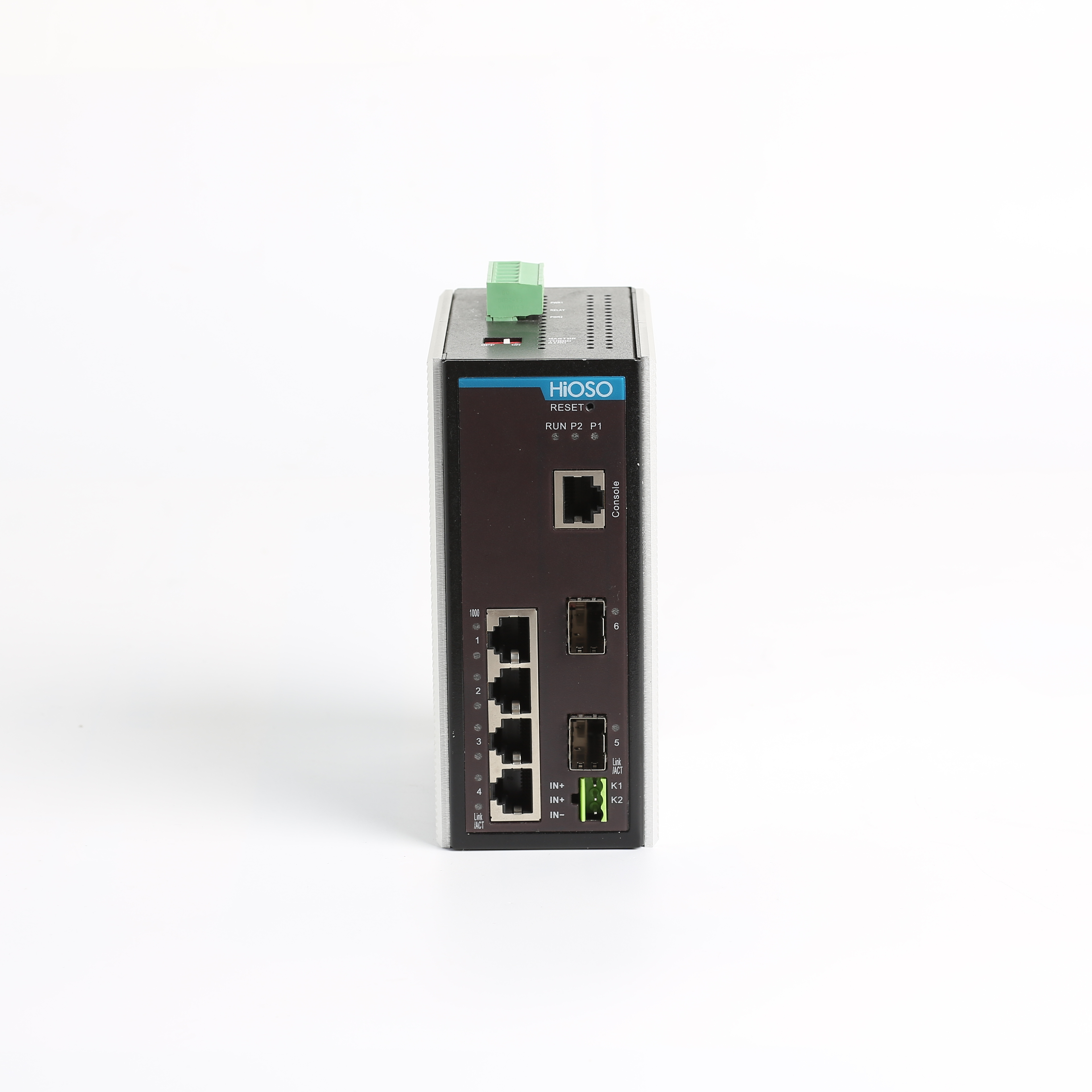

Foway 4506TFS series 6 ports Din Rail switch , supply 4 10/100/1000M RJ45 ports and 2 1000M SFP fiber uplink ports; provide 2 RPS (Redundant power supply) input : 10 ~ 60 VDC and 18 ~ 30VAC,support to connect DC power and AC power at the same time; support -40 ~ 75°C with IP30 environmental protection grade,apply to most industrial applications. Foway 4506TFS series supply DIP switch , support to enable or disable broadcast storm protection,provide another flexible solutions for different industrial applications. External power supply
Metal casing better for heat dissipating
Features
10 /100/1000M RJ45 ports, support MDI and MDI-X auto recognition
1000M fiber port, supports optic SFP and copper SFP, maximum distance 120km
Provide 2 RPS (Redundant power supply) input : 10~ 60 VDC and 18 ~ 30VAC,with reverse connection protection
Support WEB,CLI, SNMP v1/v2 management (optional), VLAN, STP/RSTP, Trunk port aggregation,IGMP,port Mirroring,port isolation,broadcast control,loop detection, QinQ, bandwidth control etc
Support DHCP, PPPoE, ACL, LLDP, RSR, switch time less than 20ms
Support 10K byte long frame packets transmission, 22G back board bandwidth
RJ45 ports adopt anti-high voltage circuit, strengthen the lightning protection and anti-interference ability; IP30 metal case; support din rail or wall mounting installation
Technical Specification
|
Access mode
|
10/100/1000Mbps
|
|
Standard
|
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet,IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit
Ethernet IEEE802.1d Spanning Tree Protocol ,IEEE802.1w Rapid STP,IEEE802.1s Multiple STP,IEEE802.1q Vlan,IEEE802.1p Qos,,IEEE802.3 ad Trunk, IEEE 802.3x Flow Control |
|
Wavelength
|
850nm/1310nm/1490nm/1550nm
|
|
Transmission distance
|
1000M fiber:multi-mode: 220m (fiber size 62.5/125μm)/550m (fiber size 50/125μm)
Single-mode:10/20/40/60/80/100/120Km;Single-fiber:10/20/40/60/80/100/120Km; Category-5 twisted pairs: 100m |
|
Port
|
4 RJ45 ports: 10/100/1000M; 2 1000M SFP uplink ports
|
|
Conversion mode
|
Medium conversion, storing and forwarding/straight-through
|
|
MAC address table
|
16K
|
|
Buffer space
|
2Mbit
|
|
Flow control
|
Full duplex state: flow control; half-duplex state: back pressure mode
|
|
Delay
|
1us
|
|
Bit error rate
|
<1/1000000000
|
|
MTBF
|
100,000 hours
|
|
LED
|
SYS (system LED)，P1（POWER 1 ），P2（power 2)
|
|
Power
|
12/24/48 VDC，18 ~ 30VAC input
|
|
Power consumption
|
6W
|
|
Operating temperature
|
Normal:-10~60°C ;-T(wide range temperature: -40~75°C
|
|
Operating humidity
|
5%~90%
|
|
Storage temperature
|
-40~85°C
|
|
Storage humidity
|
5%~95% (non-condensing)
|
|
Installation
|
Din rail installation, wall mounting installation
|
|
Dimensions
|
135mm×52mm×105mm
|
Order information
|
No
|
Product code
|
Management
|
Ports
|
Power
|
|
1
|
Foway4506TFS
|
No
|
4 1000M RJ45 + 2 1000M SFP
|
DC12-48V
|
|
2
|
Foway4506TFSM
|
WEB
|
4 1000M RJ45 + 2 1000M SFP
|
DC12-48V
|
|
3
|
Foway4506TFSM-SI
|
SNMP
|
4 1000M RJ45 + 2 1000M SFP
|
DC12-48V
|
