Quick Details
-
Model:
-
SRZP-21S
-
Working speed:
-
4-7m/min
-
Max. speed:
-
60m/min
-
Laser funtion:
-
Single / dual axis
-
Laser brand:
-
Leica / Topcon
-
Screed head width:
-
2200mm(standard), 1880/2500/2700mm optional
-
Optimal screeding depth:
-
60-150mm
-
Engine:
-
Honda 3KW
-
Control mode:
-
Touch screen / push-button
-
Vibration force:
-
2KN (200KG/time), 3000times/min, 50HZ
Quick Details
-
Weight (KG):
-
50
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
SUNRAY
-
Model:
-
SRZP-21S
-
Working speed:
-
4-7m/min
-
Max. speed:
-
60m/min
-
Laser funtion:
-
Single / dual axis
-
Laser brand:
-
Leica / Topcon
-
Screed head width:
-
2200mm(standard), 1880/2500/2700mm optional
-
Optimal screeding depth:
-
60-150mm
-
Engine:
-
Honda 3KW
-
Control mode:
-
Touch screen / push-button
-
Vibration force:
-
2KN (200KG/time), 3000times/min, 50HZ
Paremeter and Features
1 Year Warranty
SUNRAY offer 1 year warranty for your machine after it arrived destination, and provide the online / phone support, on call 24 hours, 365 days a year
Operator Training
Unlimited free training support, detailed manual and guide videos, on-site training, SUNRAY want to make sure that your operators will be highly trained
Free Spare Parts
Defective part replacement, free spare parts during the warranty, the DHL shipping to keep your emergency spare parts kit complete and quickly delivery

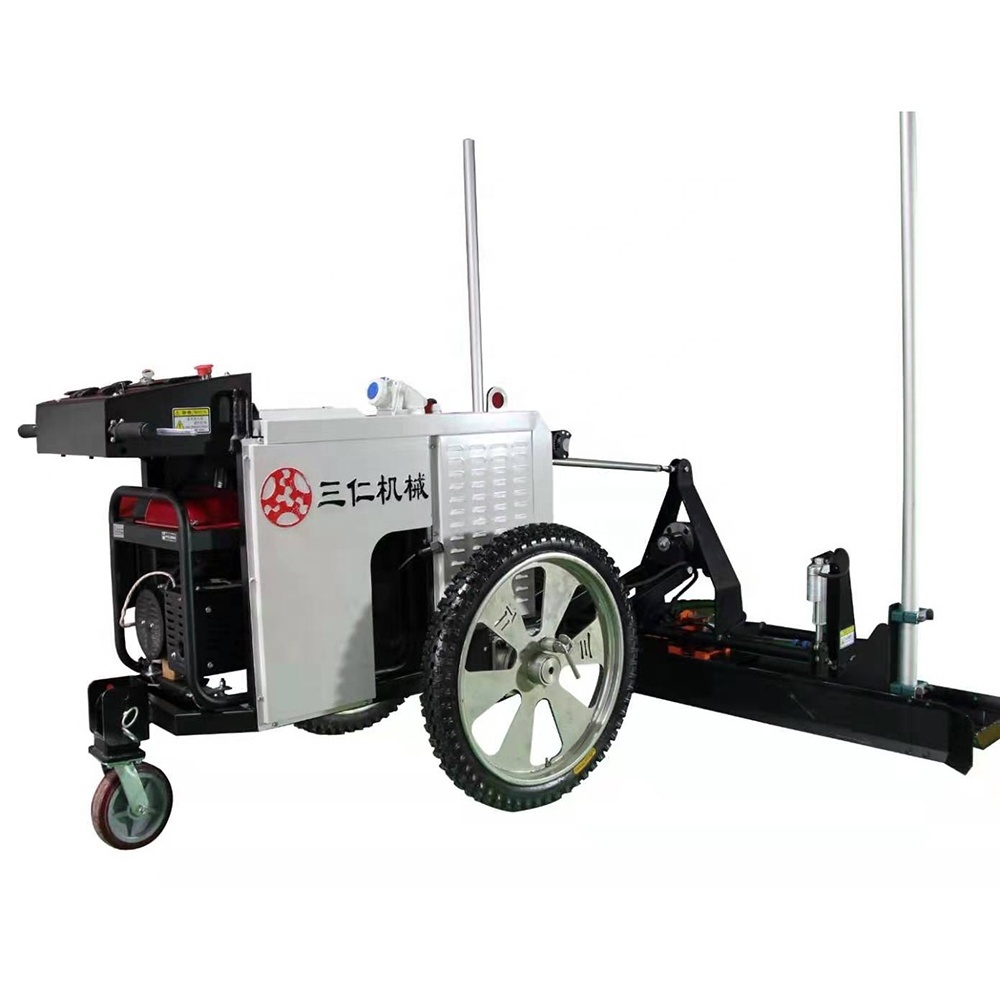

SUNRAY SRZP-21S Floor levelling Mini Concrete Paver Concrete Laser Screed
Get superior productivity and flatness with the SRZP-21S designed for small commercial, upper deck, and residential projects, it also provides you and your customers with high quality, professionally produced floors at a fraction of the cost of conventional methods.
With laser-controlled accuracy, this machine will screed to higher tolerances than traditional methods and works well with cement mixes of varying slumps, very suitable for floor and narrow area construction, and it is the record holder of the maximum leveling thickness of 15 cm for small laser planer in the industry.
Independently developed sophisticated integrated design
The global initiative, independently developed sophisticated integrated design with a smaller size, convenient turning control and transportation, widely applied to the narrow area especially on the high building foundation casting and floor construction
Touch screen+Push-button lead to more convenient control
Mitsubishi multifunctional touch screen control panel combined with the traditional push-button control, the real-time laser and working states is displayed on the screen, it leads to more convenient control and monitoring
Intelligent fault detection alarm system
Intelligent fault detection alarm system, malfunction position can be told and quickly eliminated to improve the efficiency of construction
Optional screed head size suitable for different sites
Optional screed head size, suitable for different complex sites, automatic levelling T6 high silicon aluminium alloy screed
Laser source missing mode can ensures stable operation
With the laser source missing mode to ensure normal working effect when the laser source is sheltered, making it can adapt to the requirements of different working conditions
Construction Cases
Tips for getting the best performance and productivity from your SUNRAY Equipment
◉ Perform all of the “non-routine” maintenance on the machine
◉ Repair small items immediately to avoid major breakdowns later
◉ Ensure your operators are fully trained
◉ Take inventory and suggest restock of any depleted emergency spare parts
About Manufacturer
SUNRAY MACHINERY CO., LTD
SUNRAY MACHINERY CO., LTD is located in the Economic-Development Zone of Changsha, Hunan Province. SUNRAY, as a professional construction machinery manufacturer in the central-south region of China, we focus on the R&D, Manufacture, Sales, Leasing, and Service of laser screed machine and plastering machine and provide a one-stop construction machine and integrated floor construction solution.
SUNRAY sticks to the domestic market and expanding the global market with a strategic vision. SUNRAY, from SANY, with incomparable technical strength and innovation capacity in the flooring industry, provide quality products and top service, modifying floor construction technology with high efficiency to save labour input. We produce all series of floor construction machinery and provide total solutions to our users, so as to make a contribution to the sustainable and healthy development of floor industry.
Our Vision
◉
Generous to our employee:
The development of SUNRAY benefits by the hard word and the professional ethics of our employees from the start-up of our company, so we are generous to share benefits with every single one of our employees.
◉
Caring for our customers:
The development of SUNRAY relies on the sincere support and trust of our customers, so we should satisfy the needs of our customers during service and producing products; “All for customers".
◉
Return to our society:
What is taken from society is used in the interests of society. SUNRAY will benefit to our society with quality products and service, sustainable innovation, trying our best to be a socially responsible company.
Our Team
The members of R&D, Production, management and Marketing are all from SANY 's elite team. Adhering to the concept of supplying top quality and best service, we create our products and serve our customers.
Our Service
Satisfactory service is the foundation and development basis of SUNRAY. We create a sample and leads the industry service trend, and serve customers with the standard of“3 ONE”: Respond within ONE quarter, Arrived within ONE day, Resolved within ONE day.
Factory Building
SUNRAY has modern packing factory, advanced equipment, integrated and scientific quality control system.
SUNRAY has a high-end intelligent engineering equipment R & D center based on intelligent concrete laser leveller. The company has established school-enterprise cooperation with Changsha University of Science and Technology and Central South University.
Our Unique Strengths
We Are Different
The members of R&D, Production, Management and Marketing are all from SANY 's elite team, with years of senior work experience, incomparable technical strength and a deep understanding of the customer needs of the construction machine.
Apart from the advanced stability of the product, here are some differences between SUNRAY and the other manufacturers:
◉
Without external assistance, Every single control system of SUNRAY was
researched and developed by our own elite team
◉
The First one with
Double Control Mode
: Mitsubishi multifunctional touch screen control panel and the traditional push-button control，laser and working states is displayed on the screen
◉
The First one with
Intelligent fault detection alarm system
: malfunction position can be told on screen and quickly eliminated to improve the efficiency of construction
◉
With
laser source missing mode
to ensure normal working effect when laser source is sheltered
◉ Intelligent steering and brake control system
replacing button control, which makes the operation more convenient and safe
Patents and Certificate
SUNRAY successfully passed a series of high-tech enterprise certification examinations by the Ministry of Science and Technology, won the honorary title of high-tech enterprise, and became the third batch of enterprises in Hunan Province to obtain the title of high-tech enterprise.
Being able to obtain the honor of "High-tech Enterprise" shows that SUNRAY has been recognized in many aspects such as independent intellectual property rights, the organizational management level of research and development capabilities, scientific and technological achievements transformation capabilities, and growth indicators. Since entering the field of laser screed machine, Sunray has attached great importance to R & D investment and intellectual property protection, and has obtained dozens of national patents in the field of laser screed machine control systems.
Exhibition
FAQ About After-sales Service
1. How about the warranty?
SUNRAY offer 12 months warranty for your equipment, and life-long online/video technical support
2. What's the warranty coverage?
SUNRAY offer free spare parts support and maintenance service for the equipment which are not man-made damage
3. Can you provide complete after-sales service to overseas customers?
Yes we can. The overseas customers can enjoy the same service as Chinese customers, no worry
4. Do you provide free spare parts?
Yes, during the warranty, you can get those spare parts for free: small electric push rod, relay, speed control knob, rocker
switch, steering handle, universal wheel. We also suggest you buy those above spare parts when you purchase, you can get them prepared before your equipment out of warranty. Before the equipment going to be shipped, we will send those quick-wear parts to you: 2*electric push rod, 2*steering handle, 1*relay
5. Do you send service staff overseas?
Yes, for the serious equipment issues which customers can not solved, SUNRAY will send after-sales service engineers to provide free maintenance service overseas. SUNRAY will pay the engineer's salary, but the customers need to bear the engineer's travel expenses and accommodation expenses
6. Do you offer on-site training services?
Yes, SUNRAY provides various forms of operator free training services like video guide, instruction, online guide, and 3 days technician on-site training
2. What's the warranty coverage?
SUNRAY offer free spare parts support and maintenance service for the equipment which are not man-made damage
3. Can you provide complete after-sales service to overseas customers?
Yes we can. The overseas customers can enjoy the same service as Chinese customers, no worry
4. Do you provide free spare parts?
Yes, during the warranty, you can get those spare parts for free: small electric push rod, relay, speed control knob, rocker
switch, steering handle, universal wheel. We also suggest you buy those above spare parts when you purchase, you can get them prepared before your equipment out of warranty. Before the equipment going to be shipped, we will send those quick-wear parts to you: 2*electric push rod, 2*steering handle, 1*relay
5. Do you send service staff overseas?
Yes, for the serious equipment issues which customers can not solved, SUNRAY will send after-sales service engineers to provide free maintenance service overseas. SUNRAY will pay the engineer's salary, but the customers need to bear the engineer's travel expenses and accommodation expenses
6. Do you offer on-site training services?
Yes, SUNRAY provides various forms of operator free training services like video guide, instruction, online guide, and 3 days technician on-site training
