Quick Details
-
Standard or Nonstandard:
-
Nonstandard
-
Commidity Name:
-
exhaust seal ring
-
Materials:
-
Wolfram ,Cobalt,nickel
-
Apprearance:
-
polishing, sintering
-
Style:
-
Mechanical Seal
-
Common Grade:
-
YG6,YG8,YN6,YN8
-
Specification:
-
According to yout requrest
-
Place of Region:
-
China
-
Production Time:
-
3~25days
-
Certification:
-
BV ISO Certified
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
N&D
-
Model Number:
-
Mechanical Seal Parts
-
Standard or Nonstandard:
-
Nonstandard
-
Commidity Name:
-
exhaust seal ring
-
Materials:
-
Wolfram ,Cobalt,nickel
-
Apprearance:
-
polishing, sintering
-
Style:
-
Mechanical Seal
-
Common Grade:
-
YG6,YG8,YN6,YN8
-
Specification:
-
According to yout requrest
-
Place of Region:
-
China
-
Production Time:
-
3~25days
-
Certification:
-
BV ISO Certified

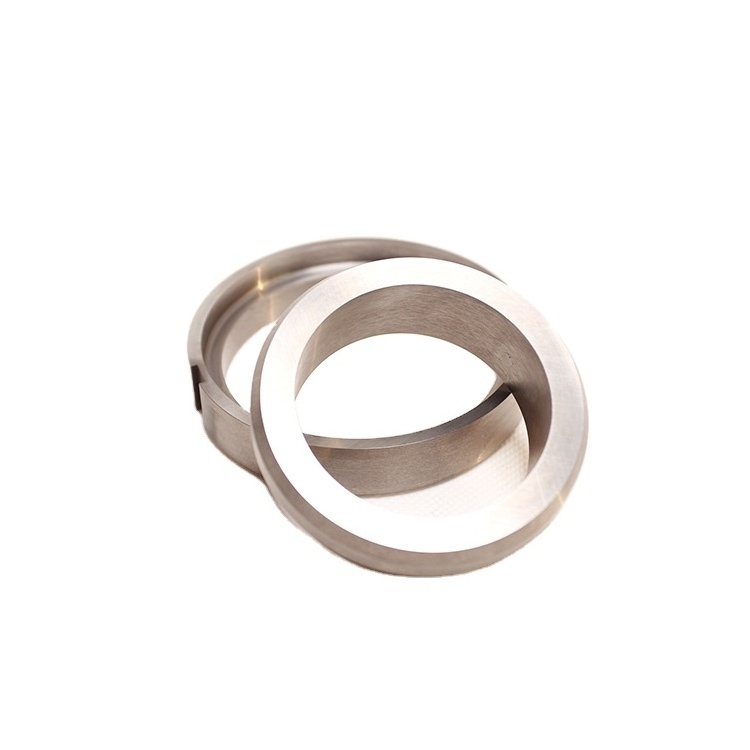

Express Tungsten Carbide Exhaust Mechanical Seal Ring Premium Seals Product
Exhaust seal ring
- Mechanical seal rings are used as Mechanical Seal Faces in pumps, Compressors and Agitators.
- Carbide Seal Rings are used in oil refineries,Petrochemical plants, Fertilizer Plants and Drug/Pharmaceutial Industries.
- Mechanical Seal Rings are developed to withstanding high temperature, high pressure & highly corrosive chemical attack.
Common Drawings for reference:
Material Specification:
|
Nickel Binder Grade |
||||
|
Grade |
Binder(wt%) |
Density(g/cm 3 ) |
Hardness(HRA) |
TRS( ≥ N/mm 2 ) |
|
YN6 |
6 |
14.7 |
89.5 |
1520 |
|
YN8 |
8 |
14.6 |
88.5 |
1710 |
|
YN9 |
9 |
14.5 |
87.5 |
1820 |
|
Cobalt Binder Grade |
||||
|
Grade |
Binder(wt%) |
Density(g/cm 3 ) |
Hardness(HRA) |
TRS( ≥ N/mm 2 ) |
|
YG6 |
6 |
14.85 |
90.0 |
1520 |
|
YG6X |
6 |
14.9 |
91.0 |
1450 |
|
YG6A |
6 |
14.9 |
92.0 |
1540 |
|
YG8 |
8 |
14.75 |
89.50 |
1750 |
|
YG12 |
12 |
14.30 |
88.0 |
1810 |
|
YG15 |
15 |
14.20 |
87.0 |
2050 |
|
YG20 |
20 |
13.5 |
85.5 |
2450 |
QA/QC Practices: All raw material physically tested prior to machining
N&D Carbide have R&D Dept can help customer to develop new grade as per special application.
- Supply rough and finished products, underground or ground carbide seal ring.
- Our material covers:WC-Co alloy, WC-Ni alloy,WC-Ni/Co alloy,WC-Tic- Ni/Cr alloy,silicon carbide etc.
- Both standard and non standard parts according to the customers ’ drawings or samples are all available from us.
- Tungsten carbide seal rin g are used as seal faces in pump and seal, compressors and agitators.
- It is widely used d in Oil Refineries, petrochemical industries, Fertilizer Plants,Petrochemical plants, Pharmaceutical industries.
- Wear Parts ( Mechanical seal ring, carbide bush/sleeve, carbide ball, etc)
- Oil & Gas ( Carbide ball, valve ball and seat,carbide nozzle,downhole tool parts,etc)
- Cutting Tools ( Carbide burs, burs BLANKS, woodworking inserts, carbide round cutters,planer knife tips)
- Tungsten Carbide Wire Drawing Dies
- Carbide Mining bits and Button Bits
- Hard Facing Material-Cemenetd Carbide Pellets
