Quick Details
-
Dimensions:
-
33.5x10x10cm
-
Use:
-
PE PP PVC TPO welding
-
Weight (KG):
-
1.5 KG
-
Power (kW):
-
1.6
-
Application:
-
Ultrasonic Plastic Welding
-
Product name:
-
Hot Air Seam Welding Machine
-
Function:
-
Heating
-
Product:
-
Hot Plate Welding Machine
-
Material:
-
High Strength Metal
-
Weight:
-
1.05KG
-
Power:
-
1600W
-
Keyword:
-
heat welding machine
-
Type:
-
Manual
-
Color:
-
Green
Quick Details
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
220V/110 V
-
Frequency:
-
50/60hz
-
Dimensions:
-
33.5x10x10cm
-
Use:
-
PE PP PVC TPO welding
-
Weight (KG):
-
1.5 KG
-
Power (kW):
-
1.6
-
Application:
-
Ultrasonic Plastic Welding
-
Product name:
-
Hot Air Seam Welding Machine
-
Function:
-
Heating
-
Product:
-
Hot Plate Welding Machine
-
Material:
-
High Strength Metal
-
Weight:
-
1.05KG
-
Power:
-
1600W
-
Keyword:
-
heat welding machine
-
Type:
-
Manual
-
Color:
-
Green

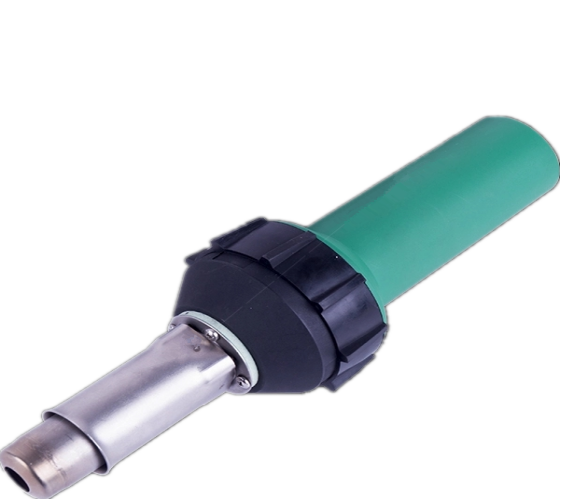

Hot Air Plastic Welding Gun Plastic Welding Heat Gun Hot Air Torch for PVC PP PE TPO Welding GW 1600
This hot air welding gun is double insulated,temperature constant and continuously adjustable,which used
in welding hot melt plastic materials such as PE,PP,EVA,PVC,PVDF ,TPO and so on,Also it is used in other
works like hot forming,shrinking,drying ,and igniting.
Tips:
1.Default combination spare parts:20/40mm wide slot nozzle,40mm silica gel pressure roller,heating elements
and paper packing box.
2.Optional combination spare parts:20/40mm wide slot nozzle,20/40mm silica gel pressure roller,tubular nozzle,
speed round nozzle,speed triangle nozzle,tacking nozzle,angle nozzles,teflon roller,brass roller,grooving tool,
spatula,shovel,fush cutter and so on.
3..Optional packing:plastic box ,aluminum box , paper box.
4..Any customized demands, you can ask us directly. We have professional technicians team.
Application
|
Heat Gun Alone Set |
Heating parts,heat Shrinking,hot baking,drying and So on. |
|
Plastic Sheets/Pipes Welding Set |
To weld PP/PE/PVC hot melted pipes,flange,plastic sheets, water tanks,water tower,plating tanks and repain pipes. |
|
Membrane Welding Set |
To weld hot melted membrane such as tarpaulin,geosynt- hics,waterproofing sheets,waterproofing membrane,ban- ner and So on. |
|
Plastic Rubber Floor Welding Set |
To seam weld PVC plastic rubber floor such as floor in hos- pital,sports floor,and anti-dust floor and so on. |
|
Brand |
OBOR |
Power Wire Length |
3 m |
|
Description |
Plastic Hot Air Welding Gun |
Air Volume |
Max 180 L/min |
|
Model |
GW 1600 |
Air Pressure |
2600 Pa |
|
Temperature |
20 - 620°C adjustable temperature |
LPA Noise |
≤65Db |
|
Voltage |
220V/110V(110V customized) |
Power |
1600W |
|
Net Weight |
1.05 Kg |
Frequency |
50/60Hz |
Remark:The colors available are blue and green,either of them for shipment if not special requirement
Details
1. WELDING NOZZLE
Be suitable for various stainless steel welding nozzle to meet different needs. (please check nozzles list)
2. HEATING ELEMENTS
Import heating elements,heat resistance porcelain and silver coated terminal can make it work for a long
time under high temperature.
3. BAL ANCE TEST
All heat guns pass balance test to make sure air volume stable.
4. TEMPERATURE CONTROL SYSTEM
Temperature Intelligence that protect heating elements burned to stop heating when temperature is higher
than secure working temperature.
5. MOTOR
The driving motor in handle is with German motor to work for a long time.
